Tube and Structural Metal Fabrication

Industrial weldments often combine sheet, plate, tube, pipe, angle, channel, and beam. Ahner reviews the complete assembly so cutting, rolling, forming, fit-up, welding, finishing, handling, and shipping decisions stay connected.

Fabricate the assembly, not a collection of disconnected pieces

Datum strategy, cut length, hole locations, joint preparation, sequence, fixture approach, and weld access influence how a structural assembly fits and performs.

Plan for movement and delivery

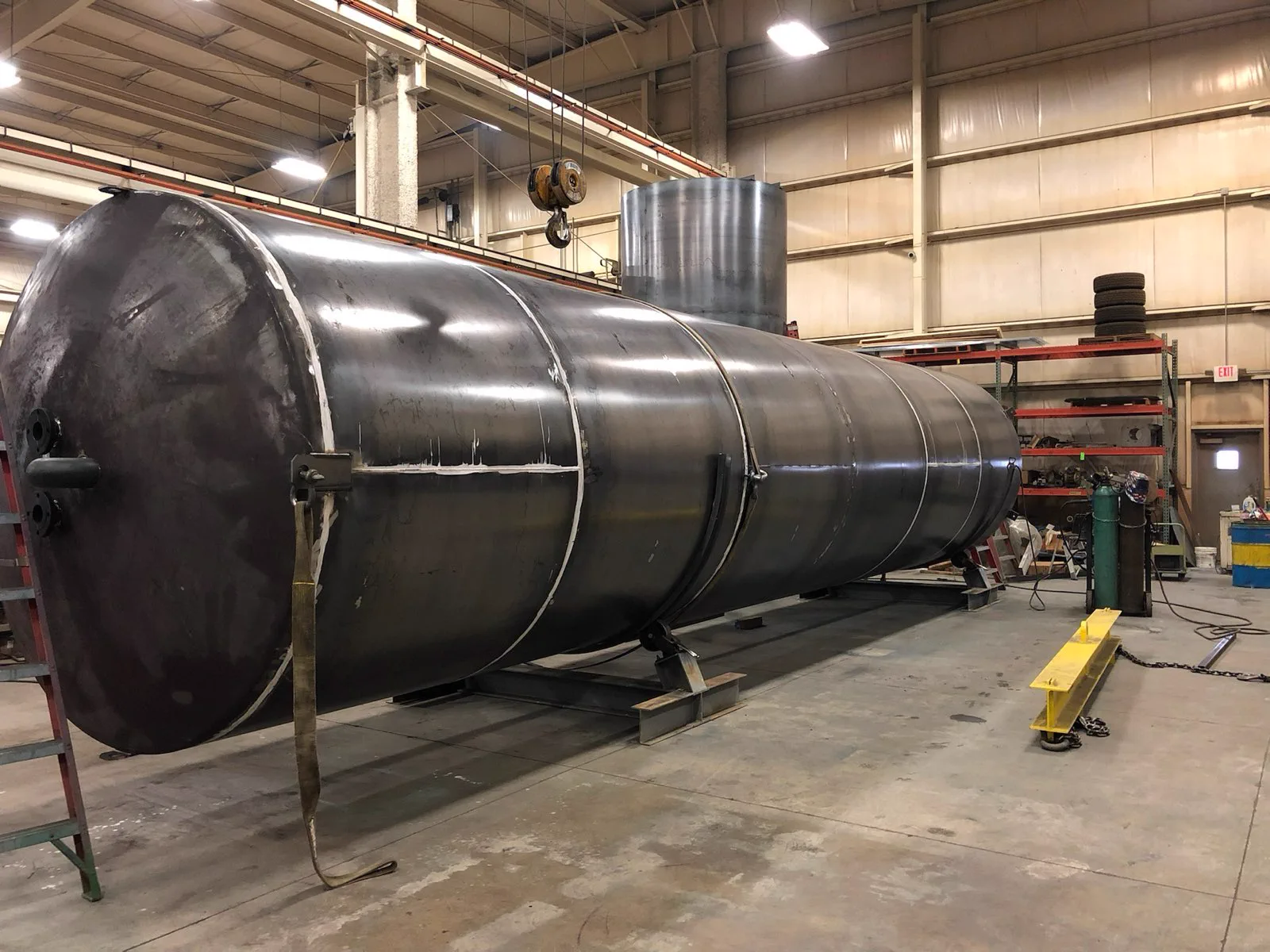

Large fabrications require early decisions about lifting, center of gravity, shipping envelope, split points, pre-assembly, field interfaces, and surface protection.

Support for one-off systems and repeat weldments

The same connected review can support a single custom system, a replacement structure, or repeat production weldments with controlled revisions and inspection points.

Bring the complete frame or support assembly

Frames, supports, platforms, and hopper structures can combine structural shapes with sheet and plate. Send the assembly view and part details so interfaces, weld access, and operation sequence can be reviewed together.

Plan the move as well as the build

Include overall dimensions, expected weight, lifting or transport constraints, and any pieces that must ship separately. For work that connects to an existing facility, identify field dimensions and who confirms them. Structural design and required approvals need to be defined in the released package.
