Past Projects

These are real projects fabricated by the Ahner Industrial team in Sandusky, Ohio. Use the examples to explore a similar fabrication need.

Documented Fabrication Stories

Large Welded Frames for an Industrial Heater House

An industrial heater-house project brought together large structural frames, laser-cut and formed sheet metal, welded assemblies, and component kits. Ahner fabricated the work in Sandusky and shipped project loads in 2026.

Industrial Ductwork: From Fabrication Details to Flatbed Delivery

A carbon-steel ductwork package combined duct sections, transitions, flanges, end caps, and inlet components. Ahner’s shop route connected cutting, forming, fitting, welding, and finishing, with photographed truckloads shipped in July 2026.

Stainless Steel Brackets with Cut and Formed Features

Stainless-steel brackets combine elongated cutouts with formed flanges. This Ahner shop example shows why cut geometry, bend placement, and finished dimensions need to be reviewed together.

Tanks & ductwork

Large fabricated tank prepared for transport

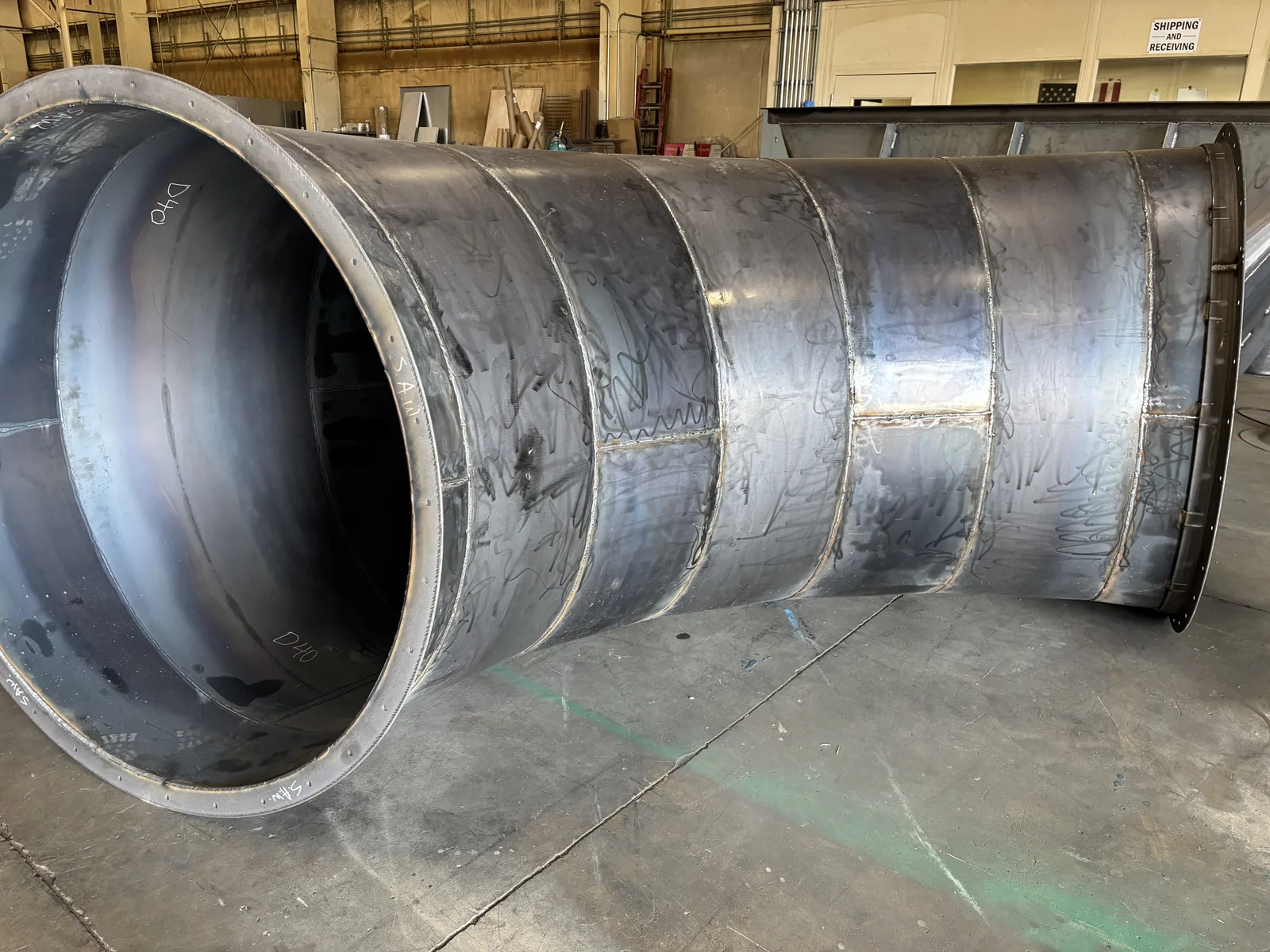

Rolled duct transition

Rolled sections form a large duct transition with welded seams and flanged end connections.

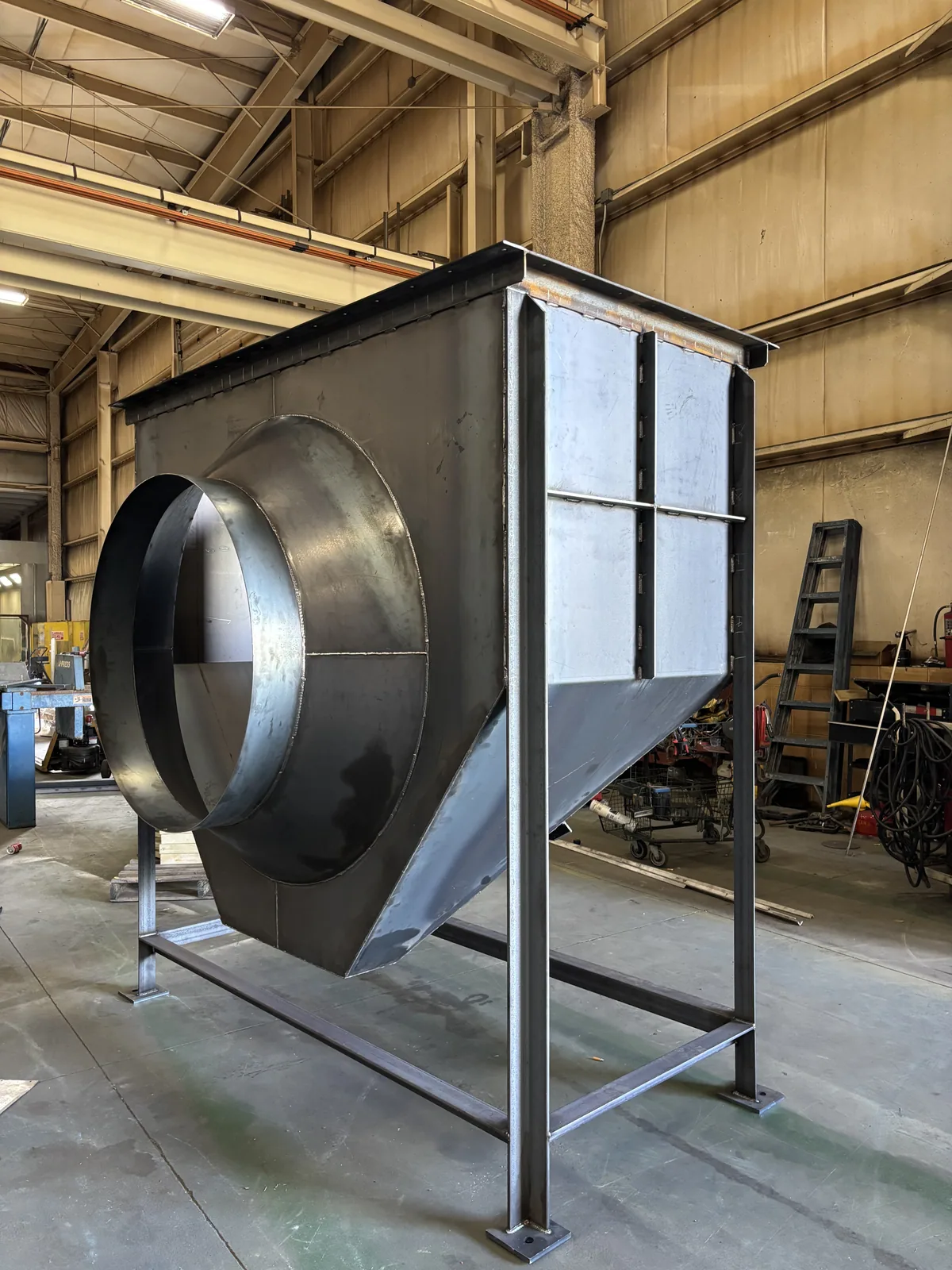

Duct housing with support frame

A fabricated housing brings together a round connection, sloped platework, and a welded support frame.

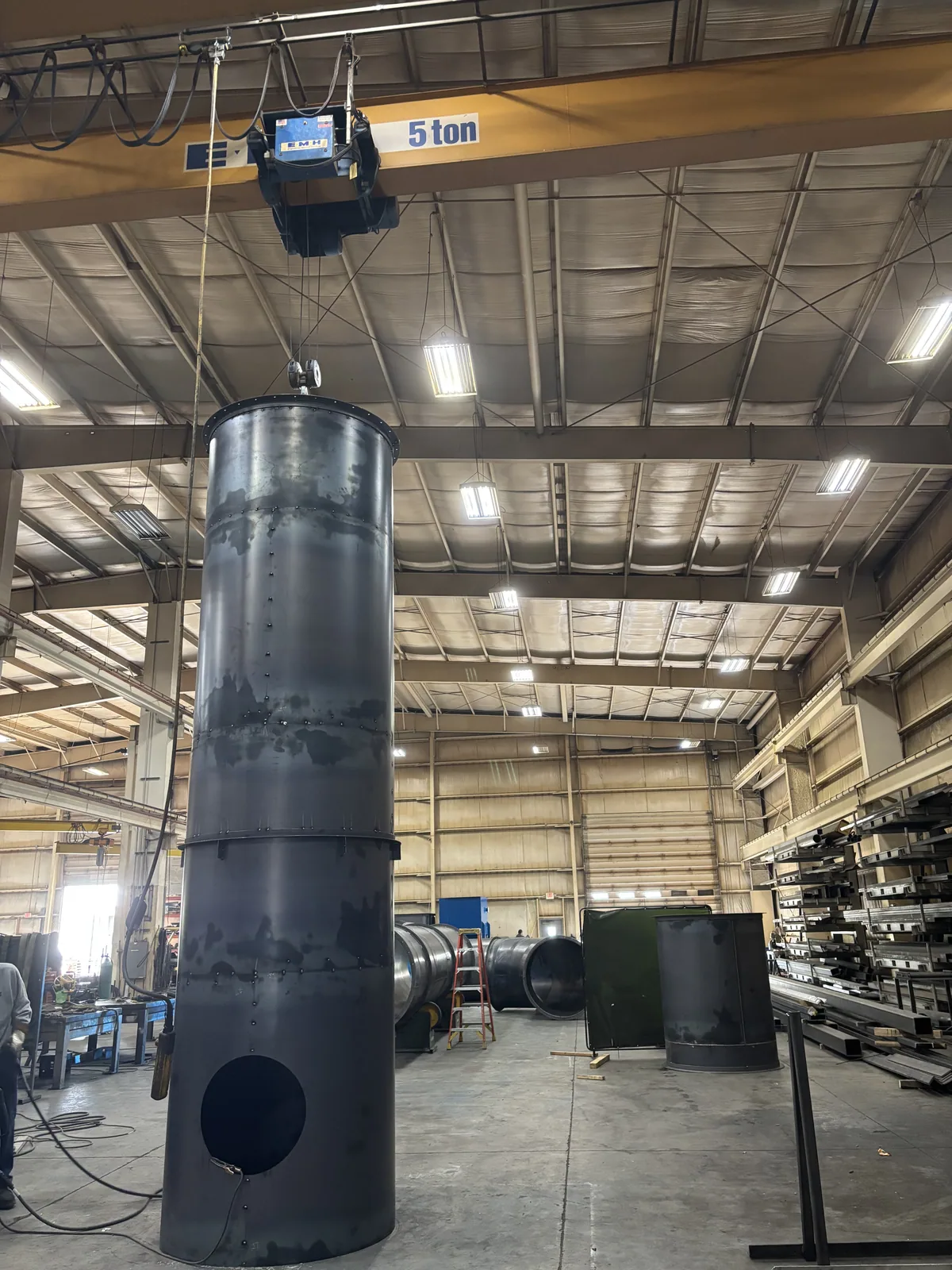

Tall cylindrical fabrication

A tall cylindrical fabrication combines rolled sections, flanges, and a circular side opening.

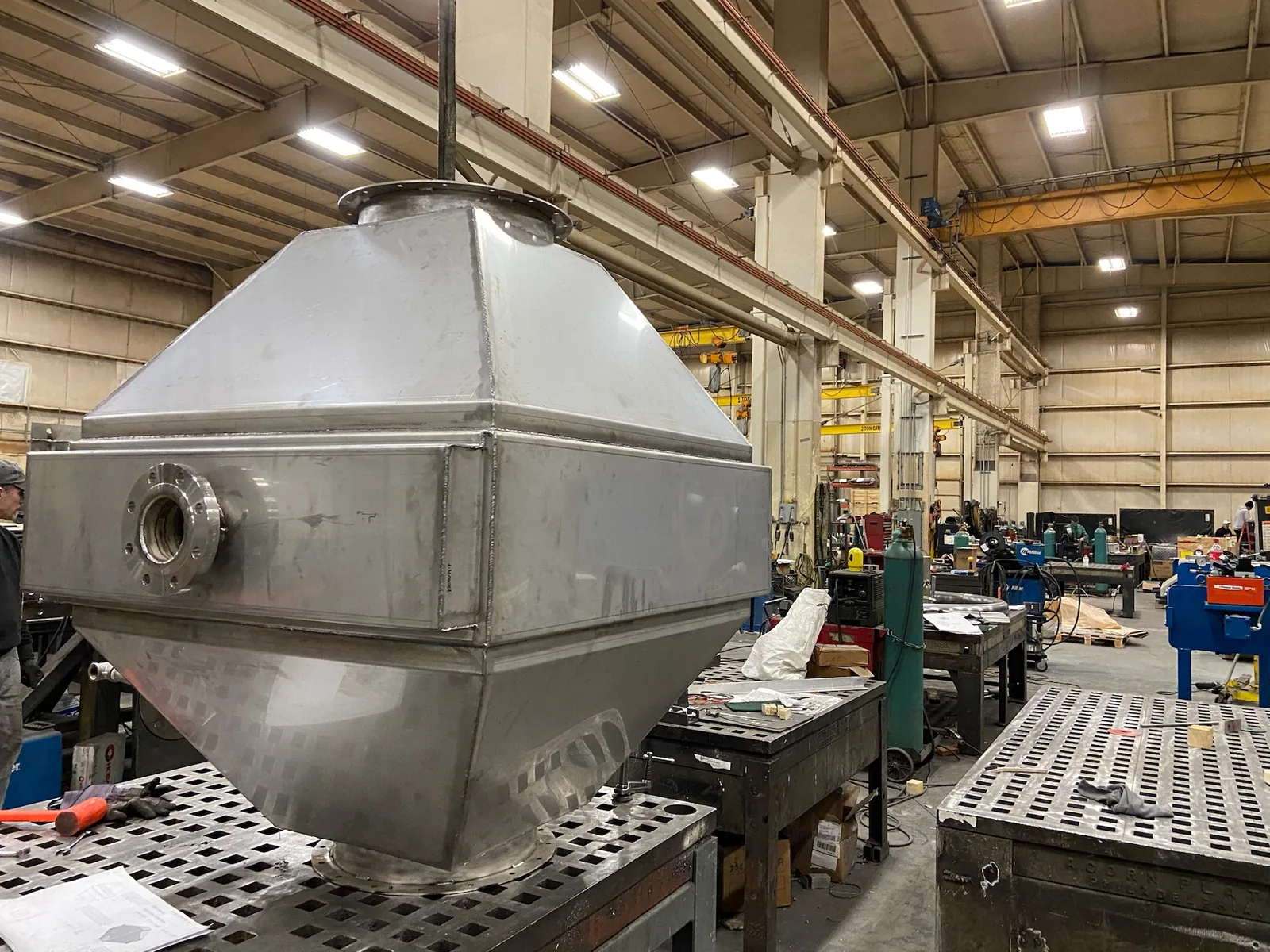

Tapered vessel fabrication

A welded vessel body combines tapered sections with flanged openings on several faces.

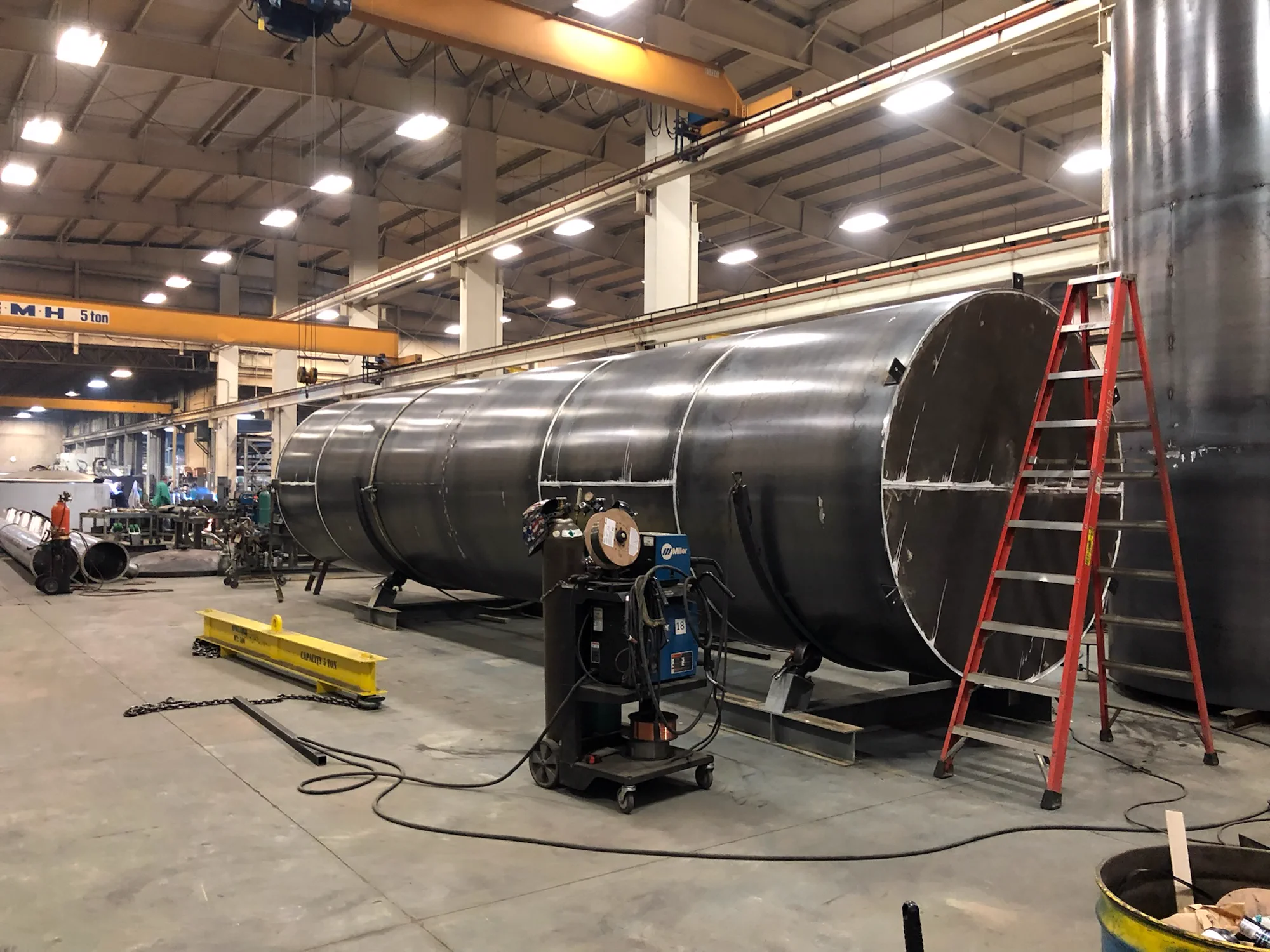

Large cylindrical weldment in fabrication

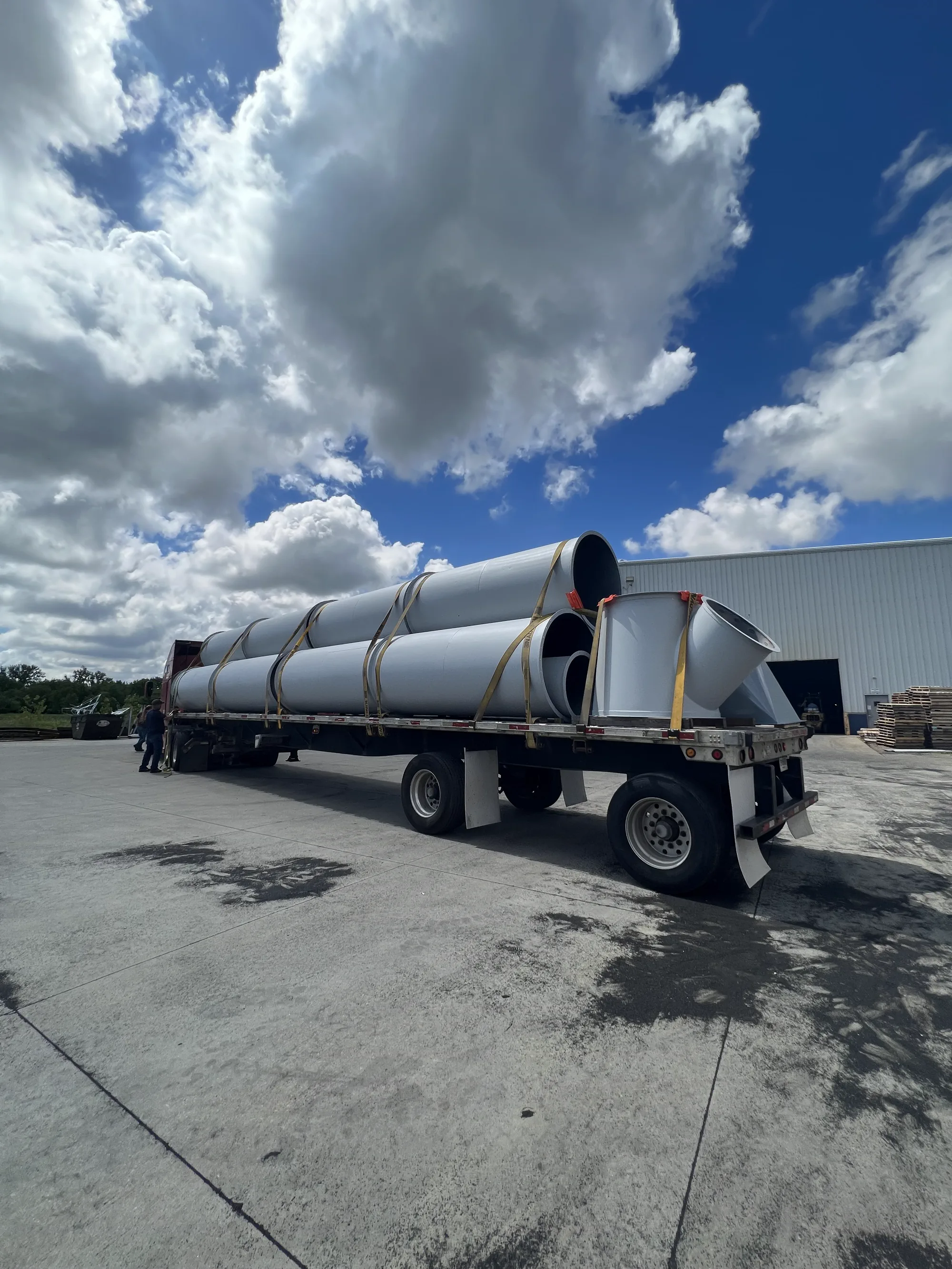

Fabricated duct sections loaded for delivery

Large fabricated tank being prepared for shipment

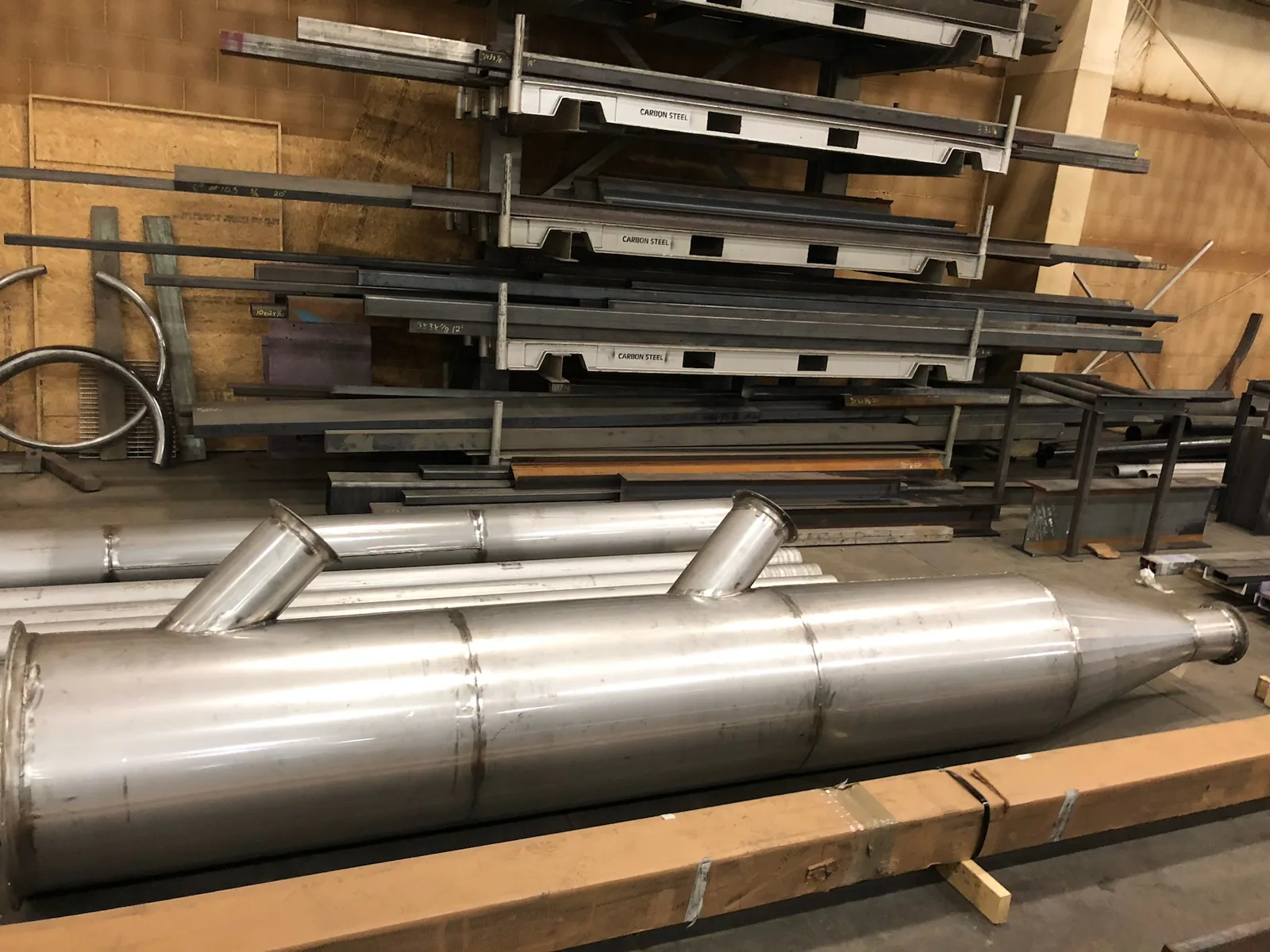

Duct assembly with branch connections

A long cylindrical assembly includes angled branch connections and a tapered end section.

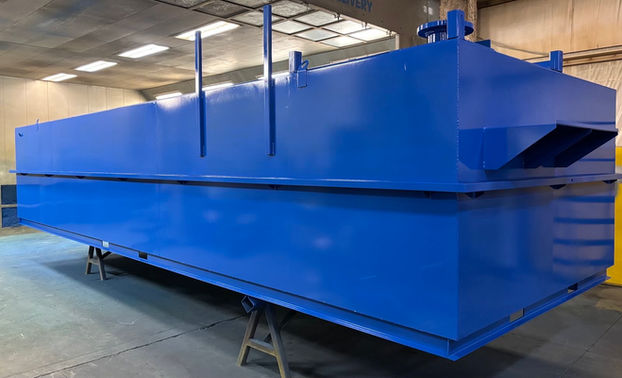

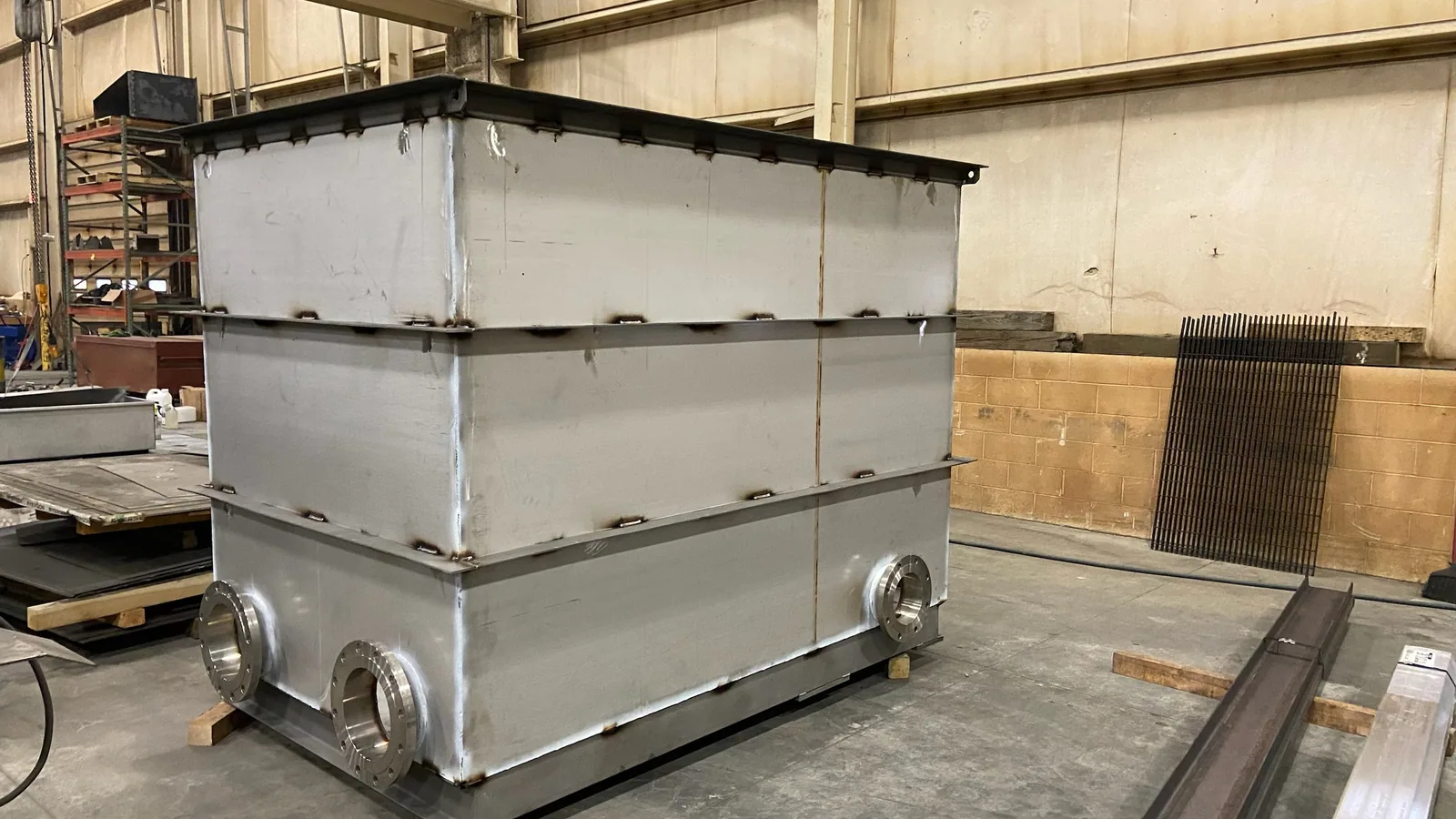

Rectangular vessel fabrication

A rectangular vessel body includes external reinforcement and several flanged side connections.

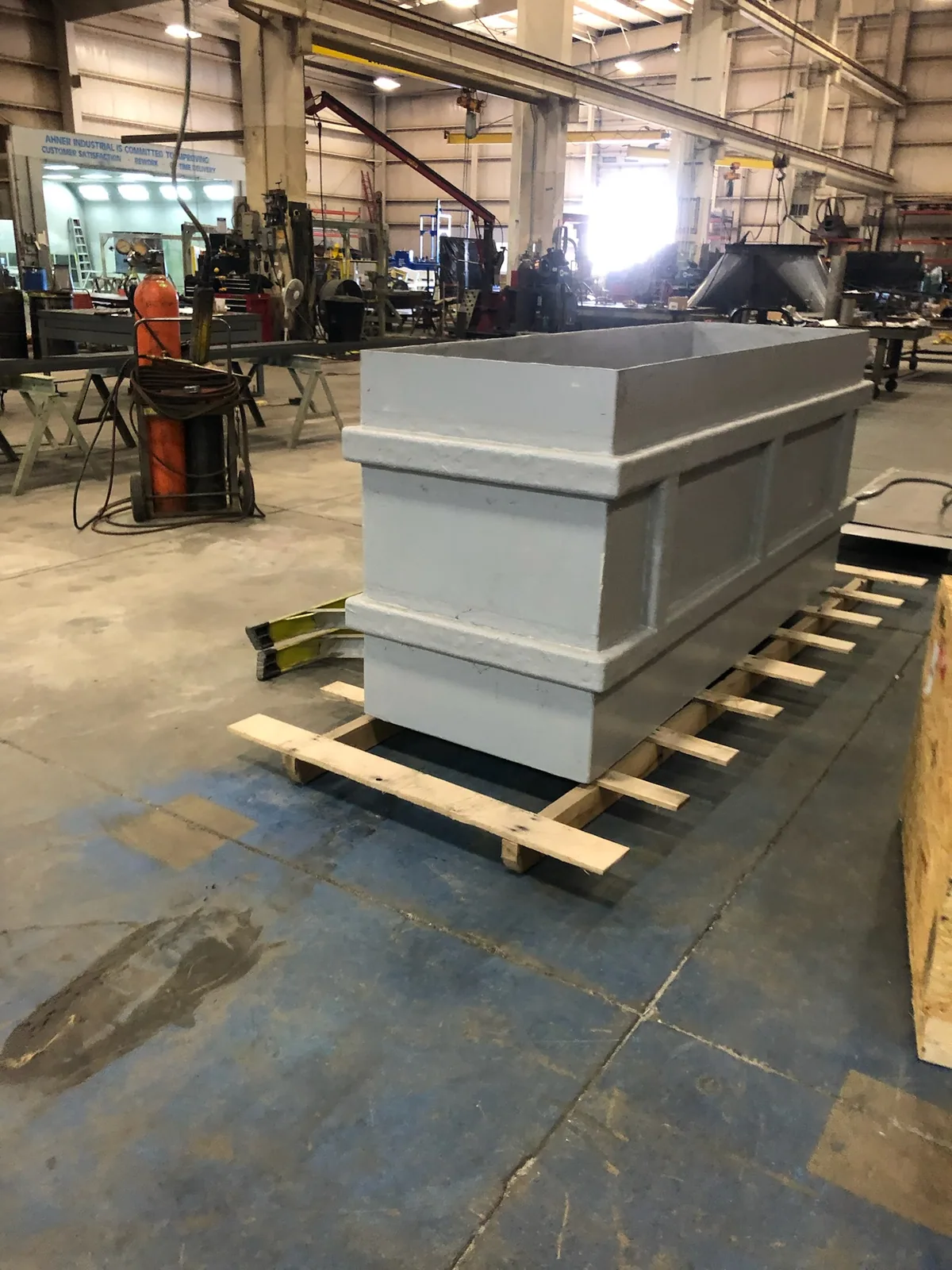

Reinforced rectangular fabrication

A rectangular fabrication combines an open top with external horizontal and vertical reinforcement.

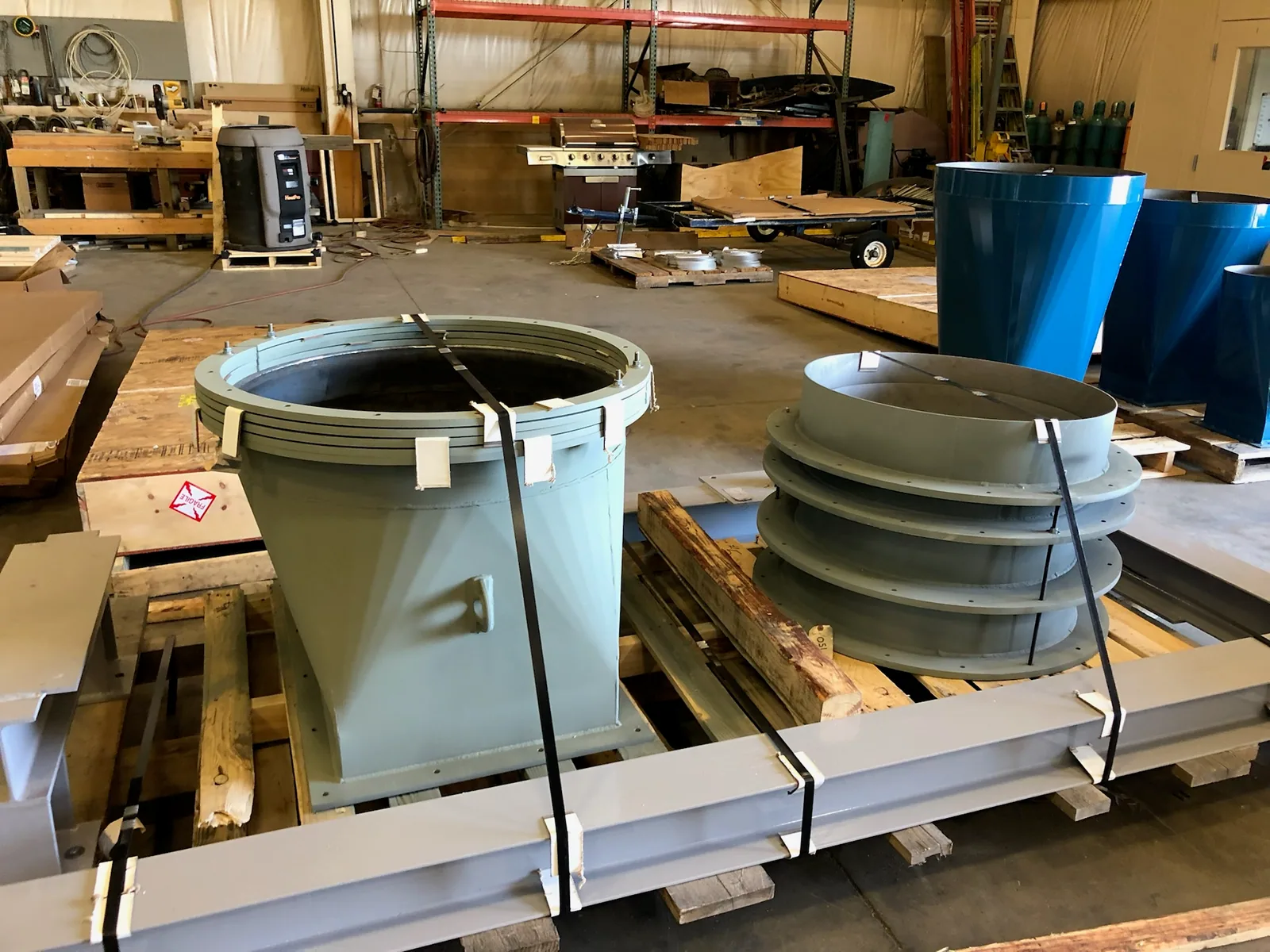

Coated duct sections and flanges

Cylindrical duct sections, flanges, and fabricated supports are strapped together on pallets.

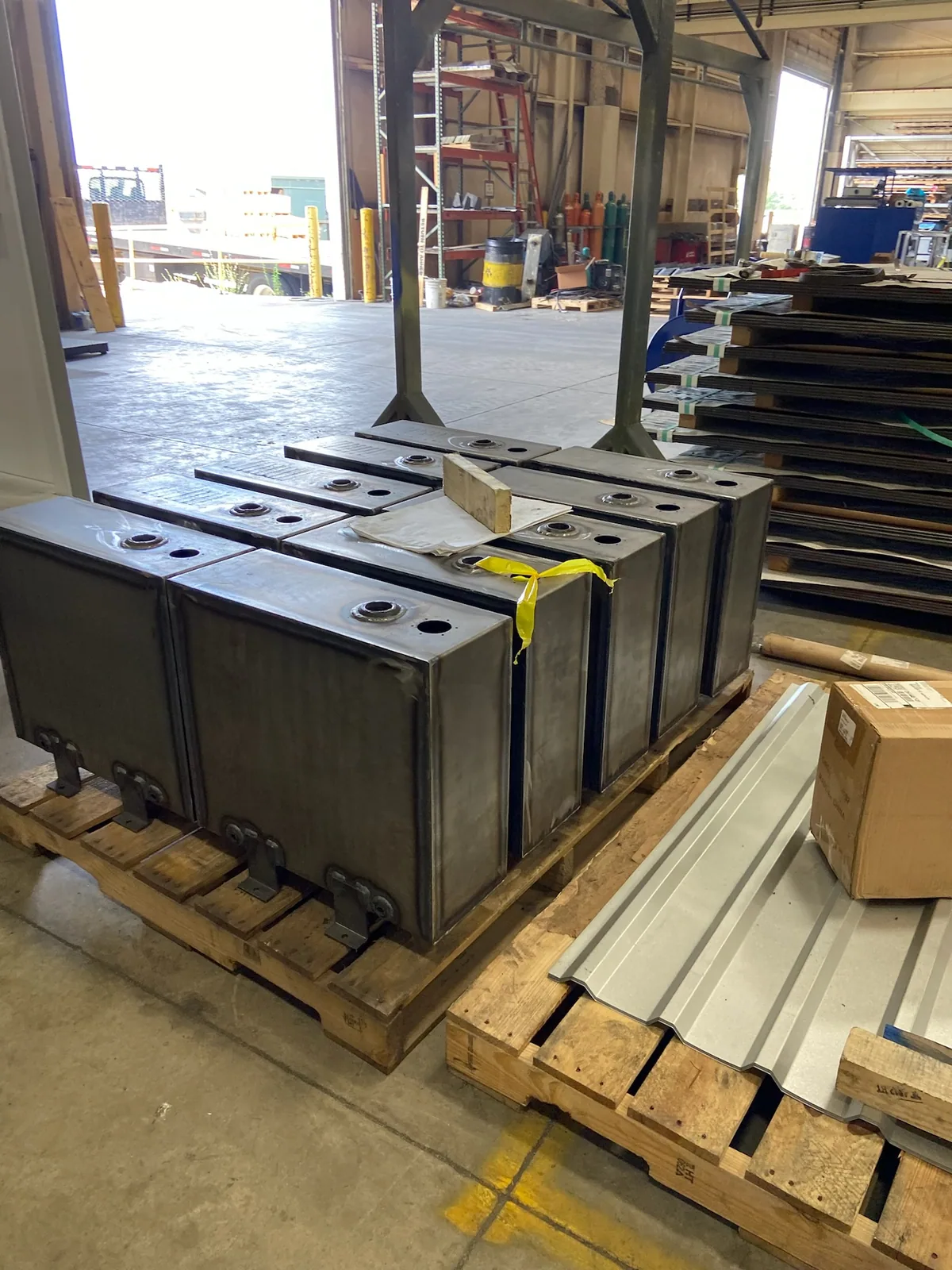

Rectangular weldments with ports

Repeated rectangular weldments include circular ports and mounting features along their lower edges.

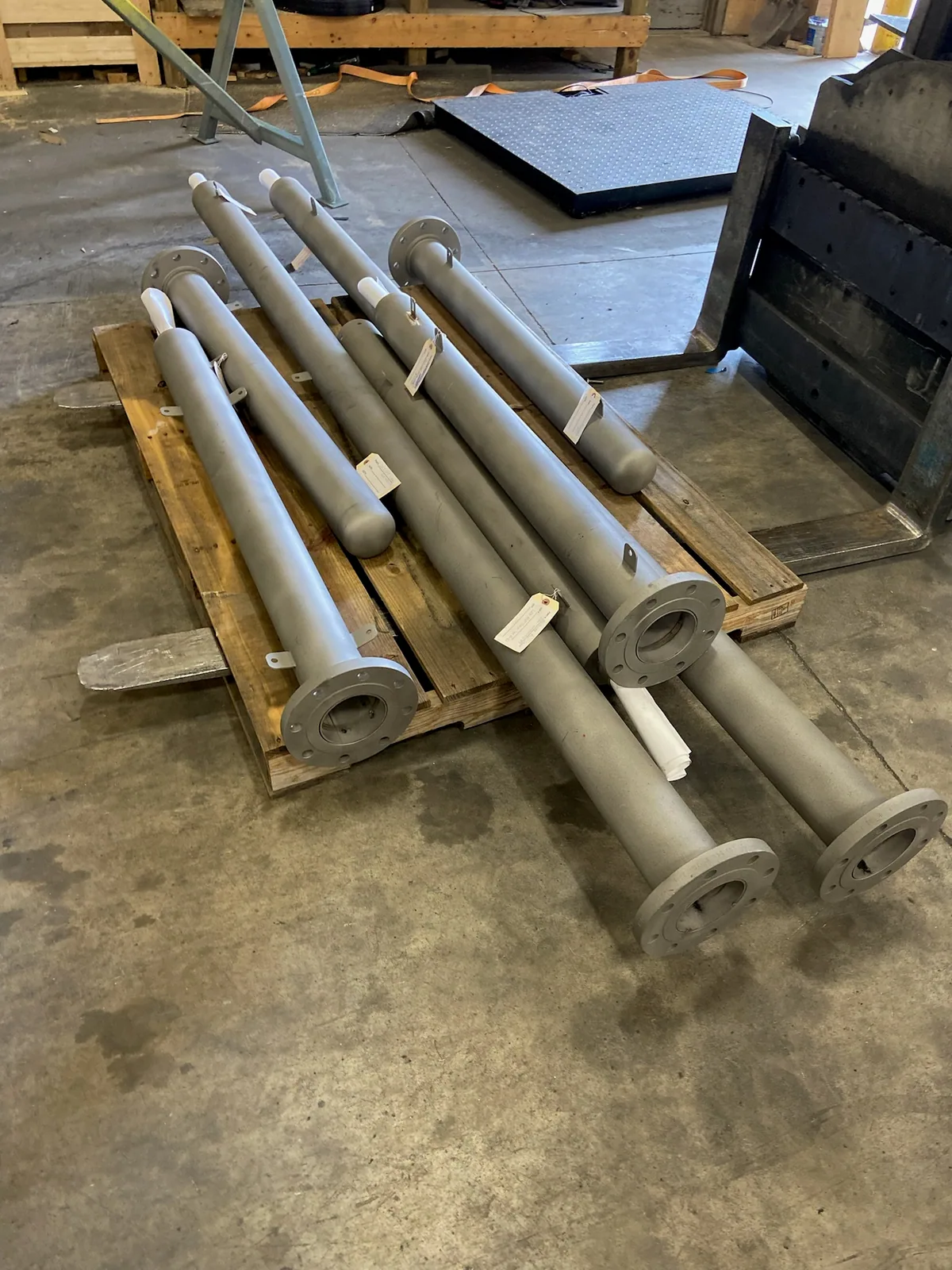

Batch of flanged pipe sections

Several fabricated pipe sections with flanged ends are grouped together on a pallet.

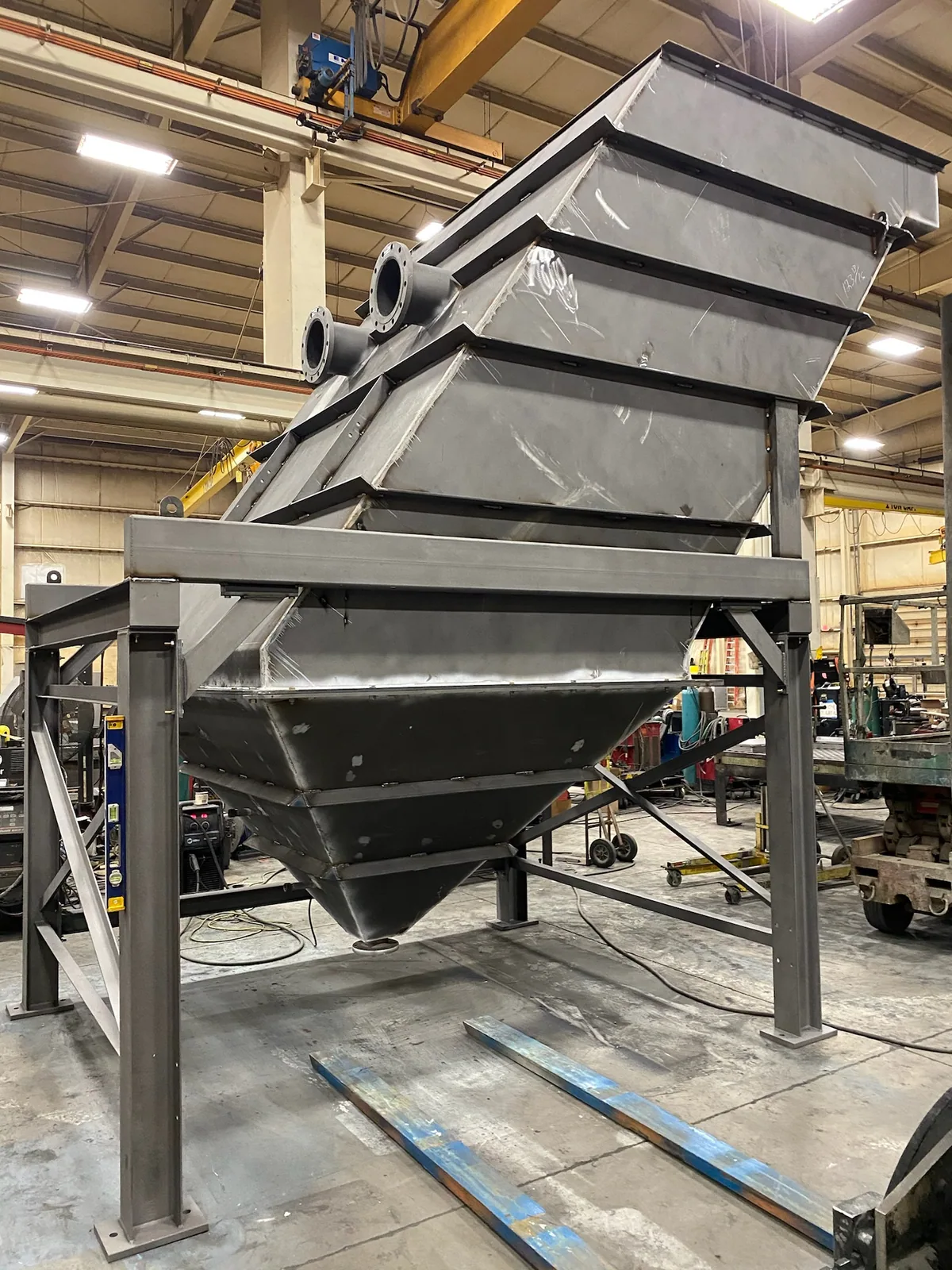

Angled housing on a support frame

An angled fabricated housing combines reinforced platework with a four-leg support frame.

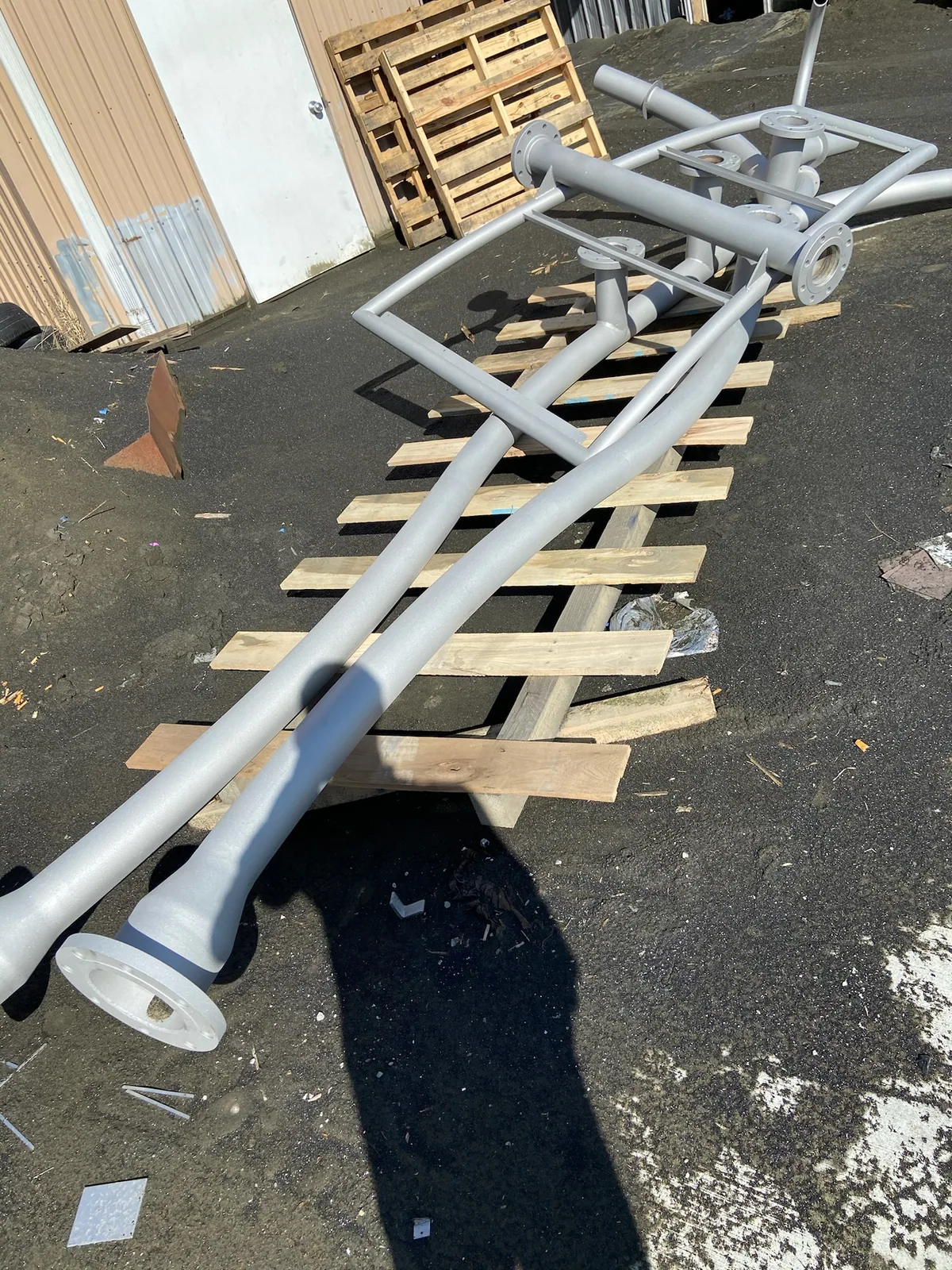

Long pipe assembly with branches

A long fabricated pipe assembly includes branch connections, curved sections, and flanged ends.

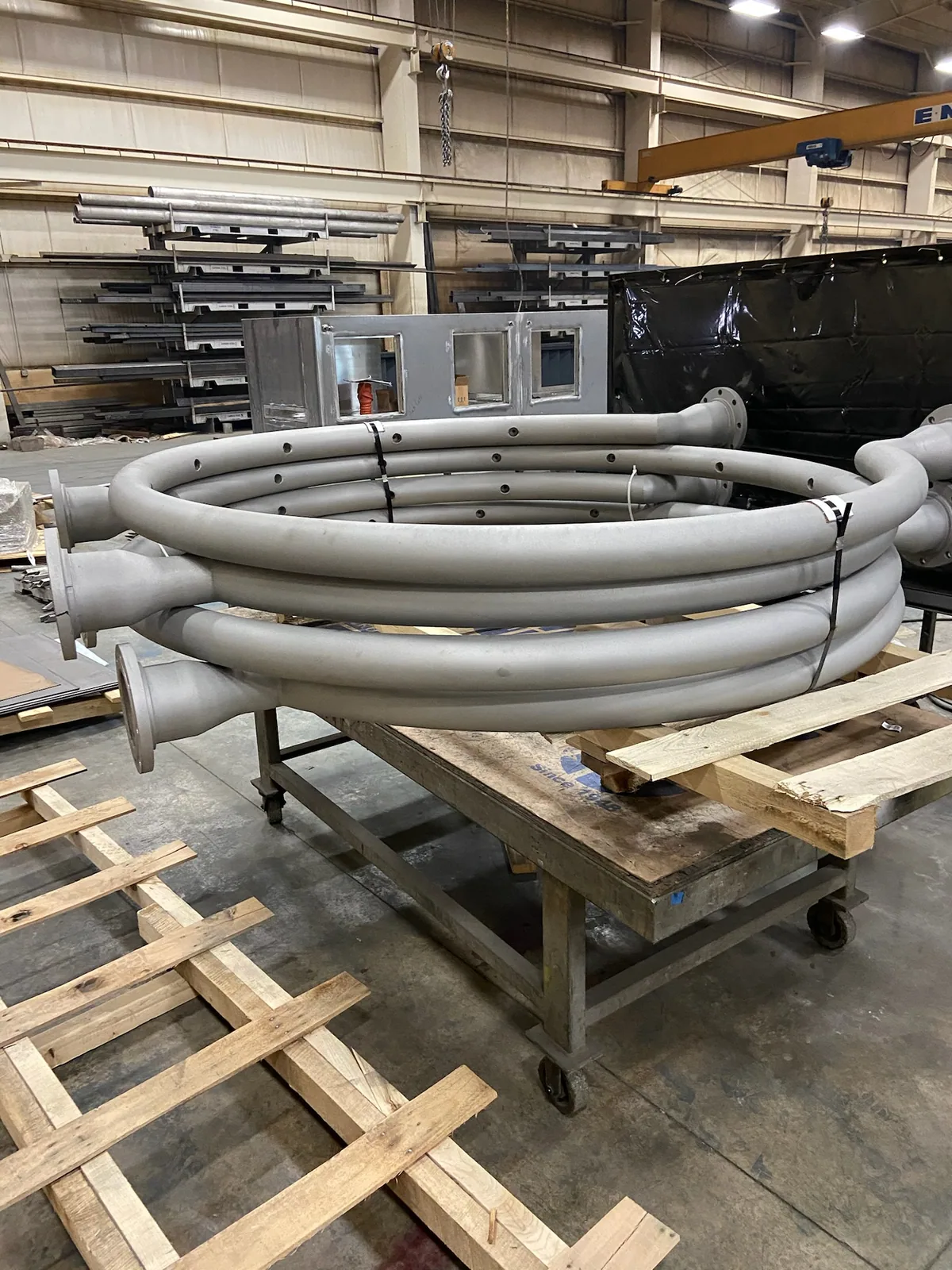

Curved pipe assemblies

Large curved pipe assemblies are stacked together with their flanged ends visible.

Fabricated pipework and formed connections

A collection of fabricated pipework combines straight sections, curved branches, flanges, and spherical forms.

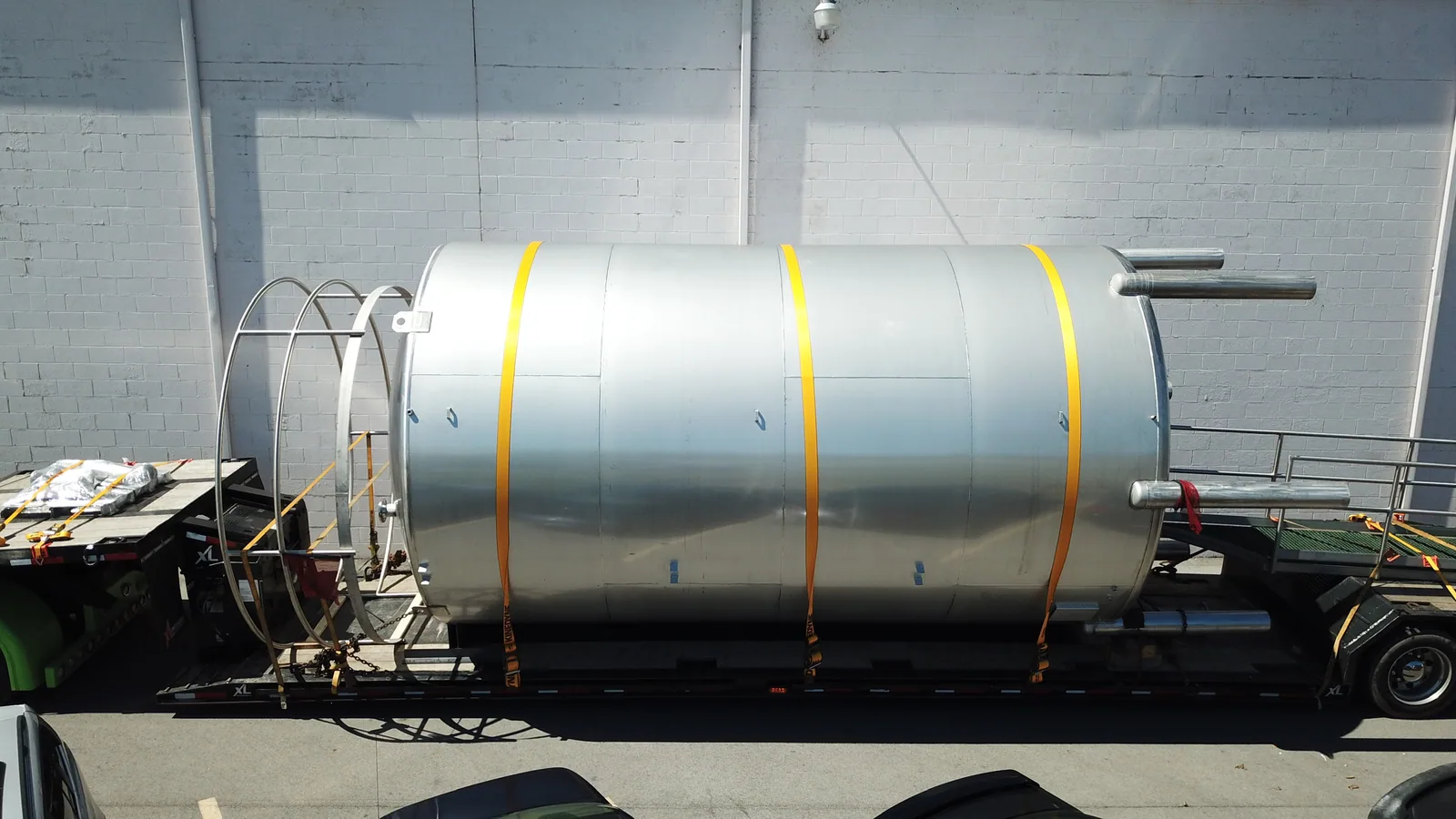

Large tank secured for transport

A large cylindrical tank is secured horizontally on a trailer outside the shop.

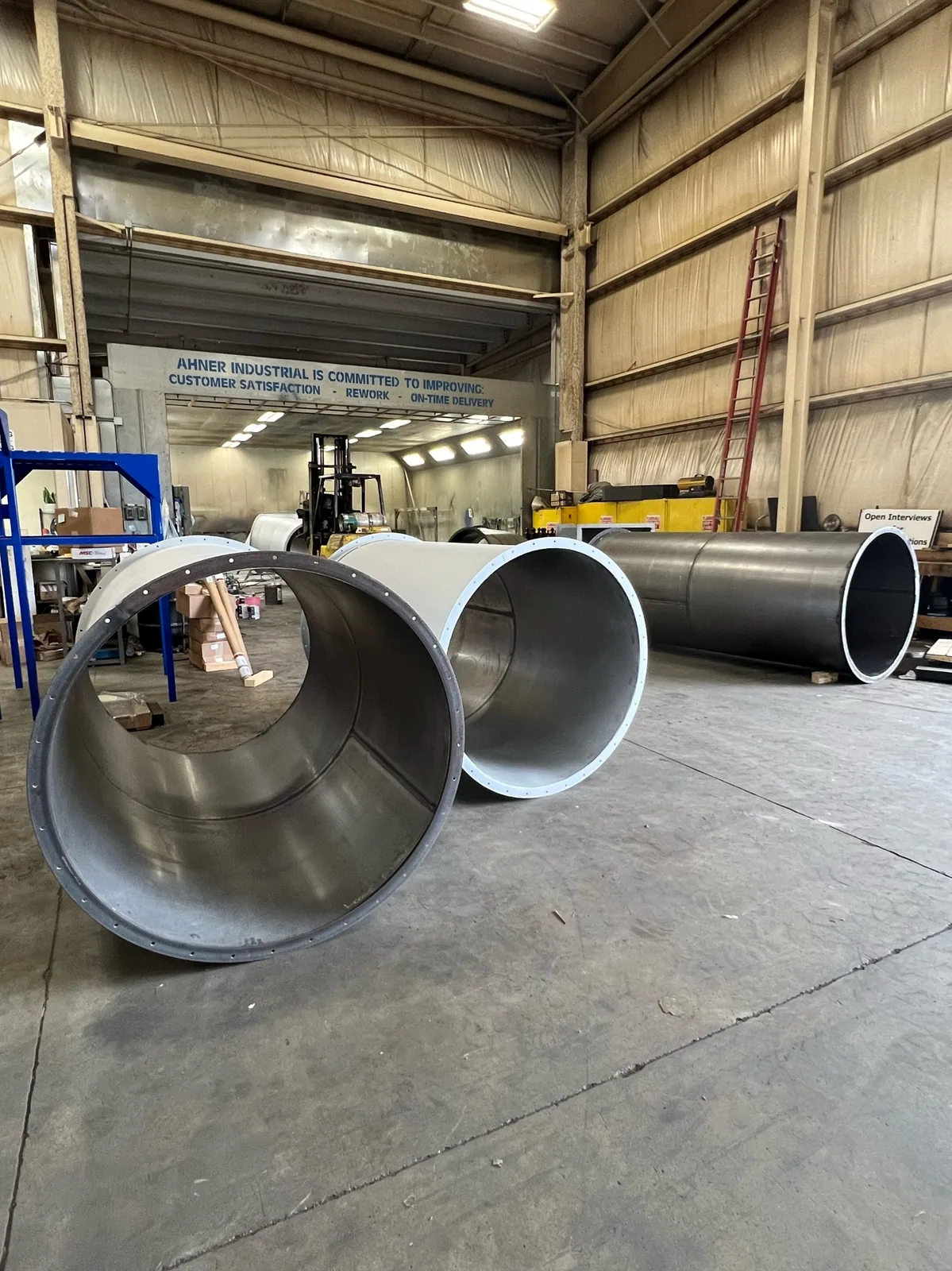

Fabricated round duct sections

Several round duct sections are arranged together with their rolled walls and end connections visible.

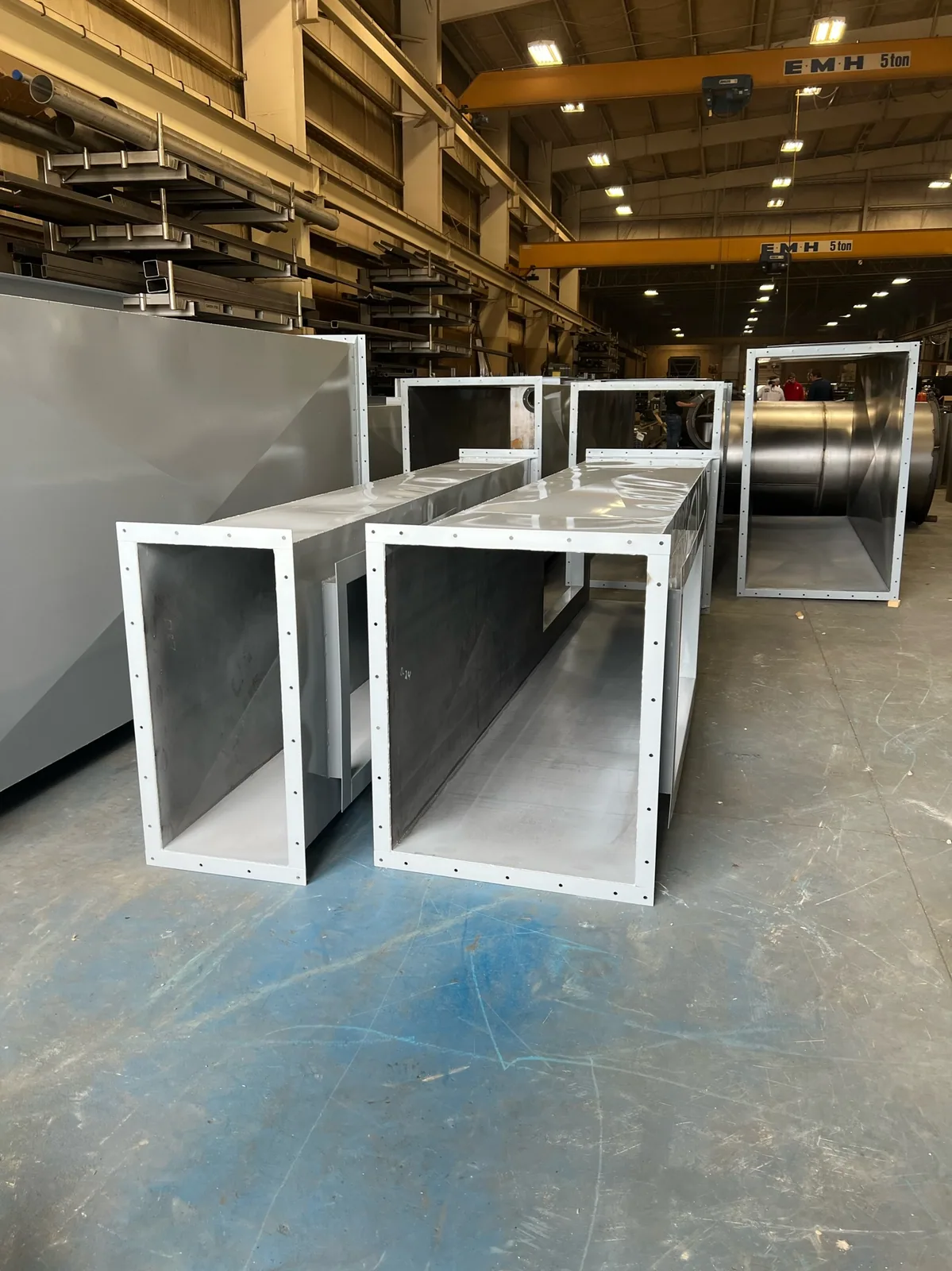

Rectangular ductwork sections

Rectangular duct sections and larger fabricated housings are arranged in the shop.

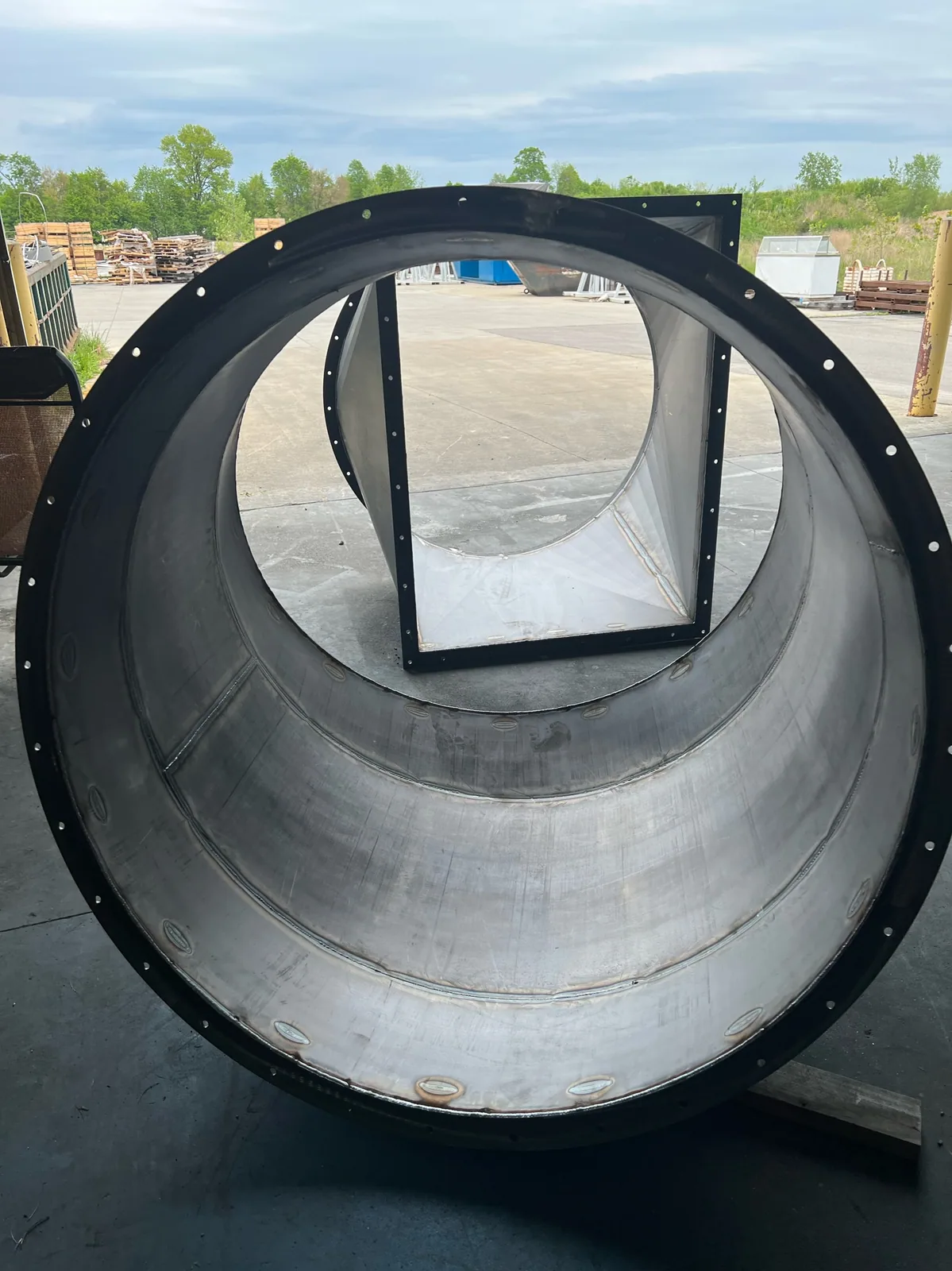

Round-to-rectangular duct transition

An interior view shows a duct transition connecting a round flange to a rectangular opening.

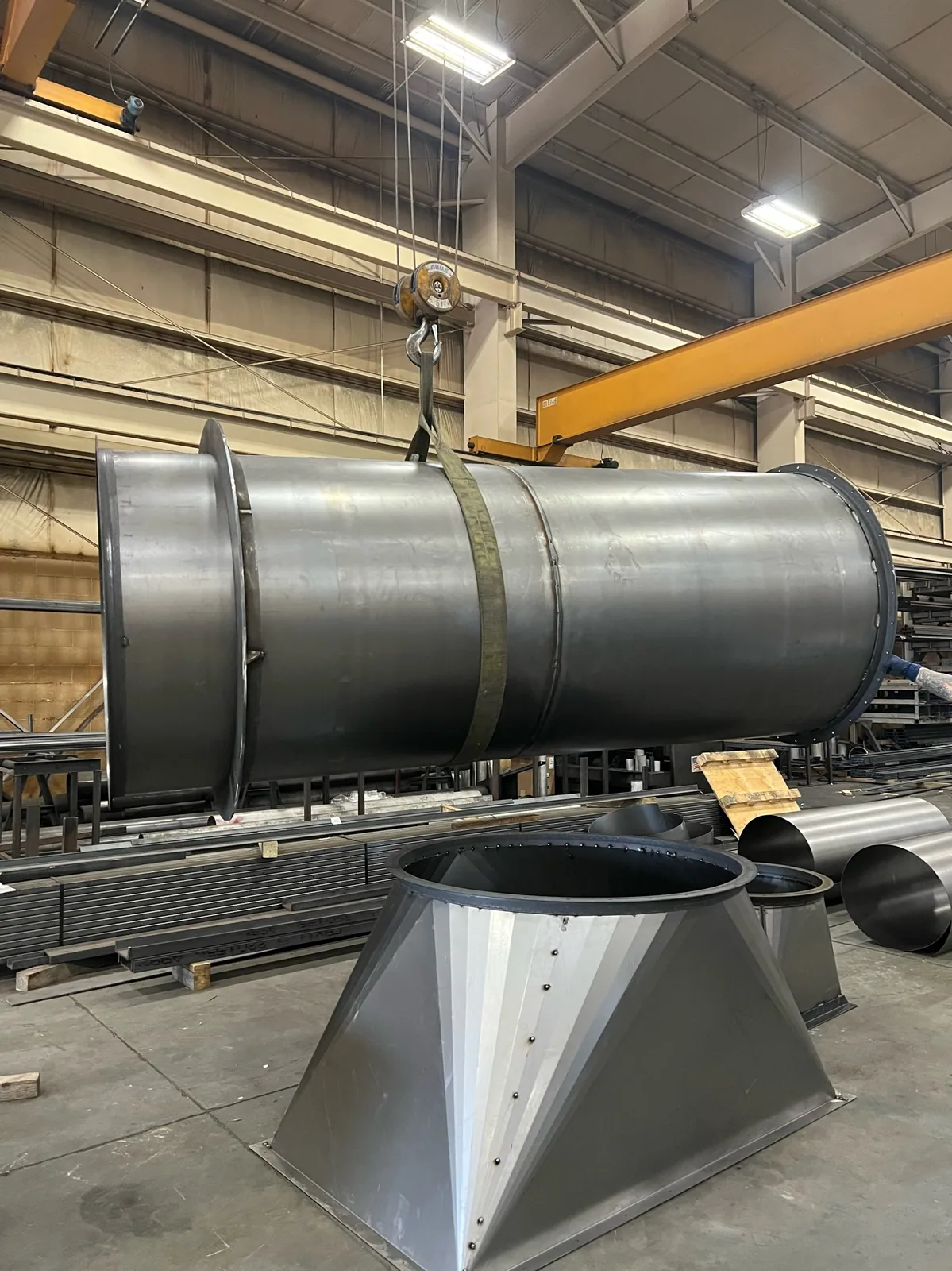

Large duct and transition fabrication

A long cylindrical duct section is shown with a separate rectangular-to-round transition.

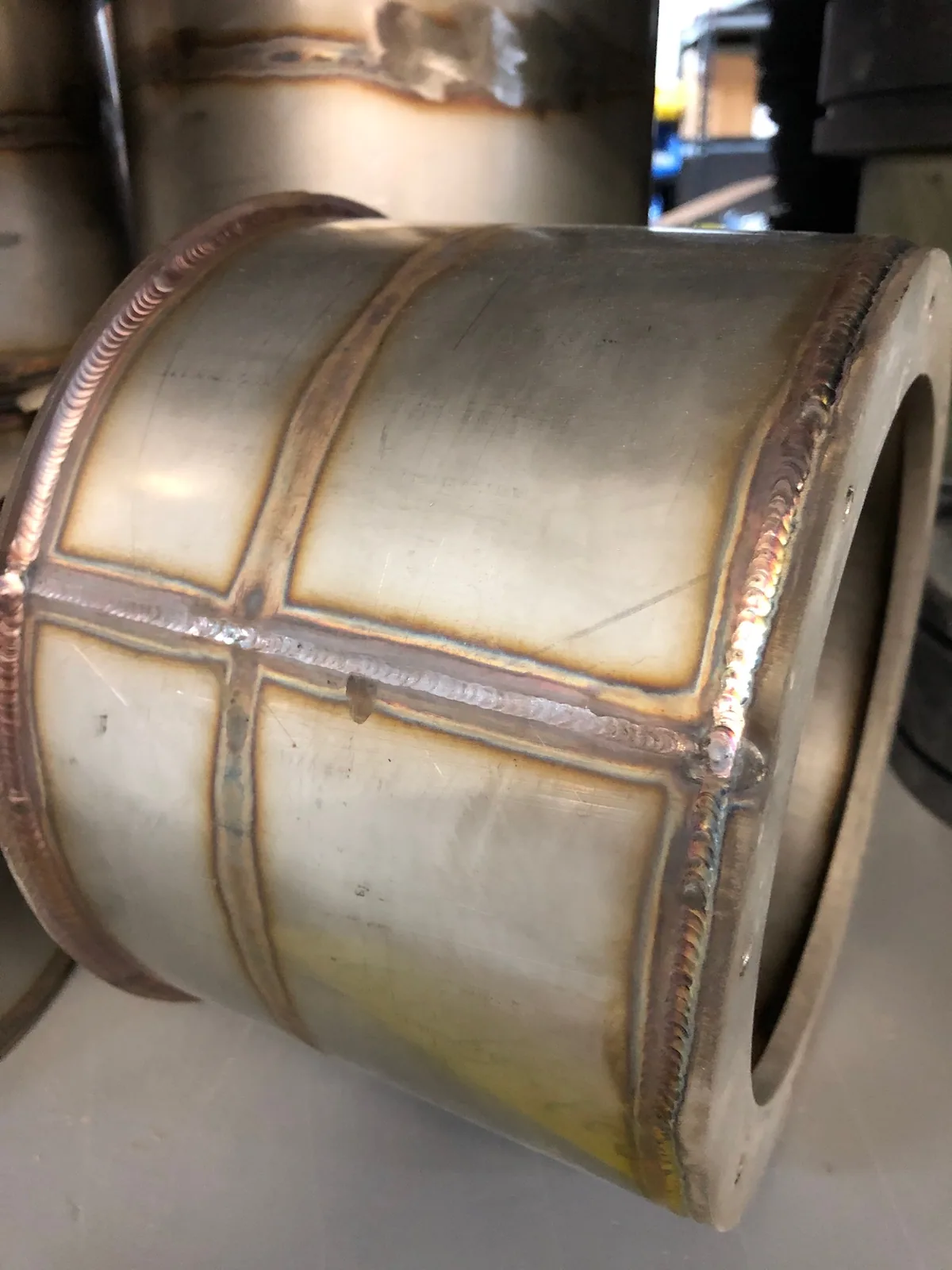

Welded cylindrical connection

A close view of a cylindrical fabrication shows the intersecting weld seams and the flanged opening.

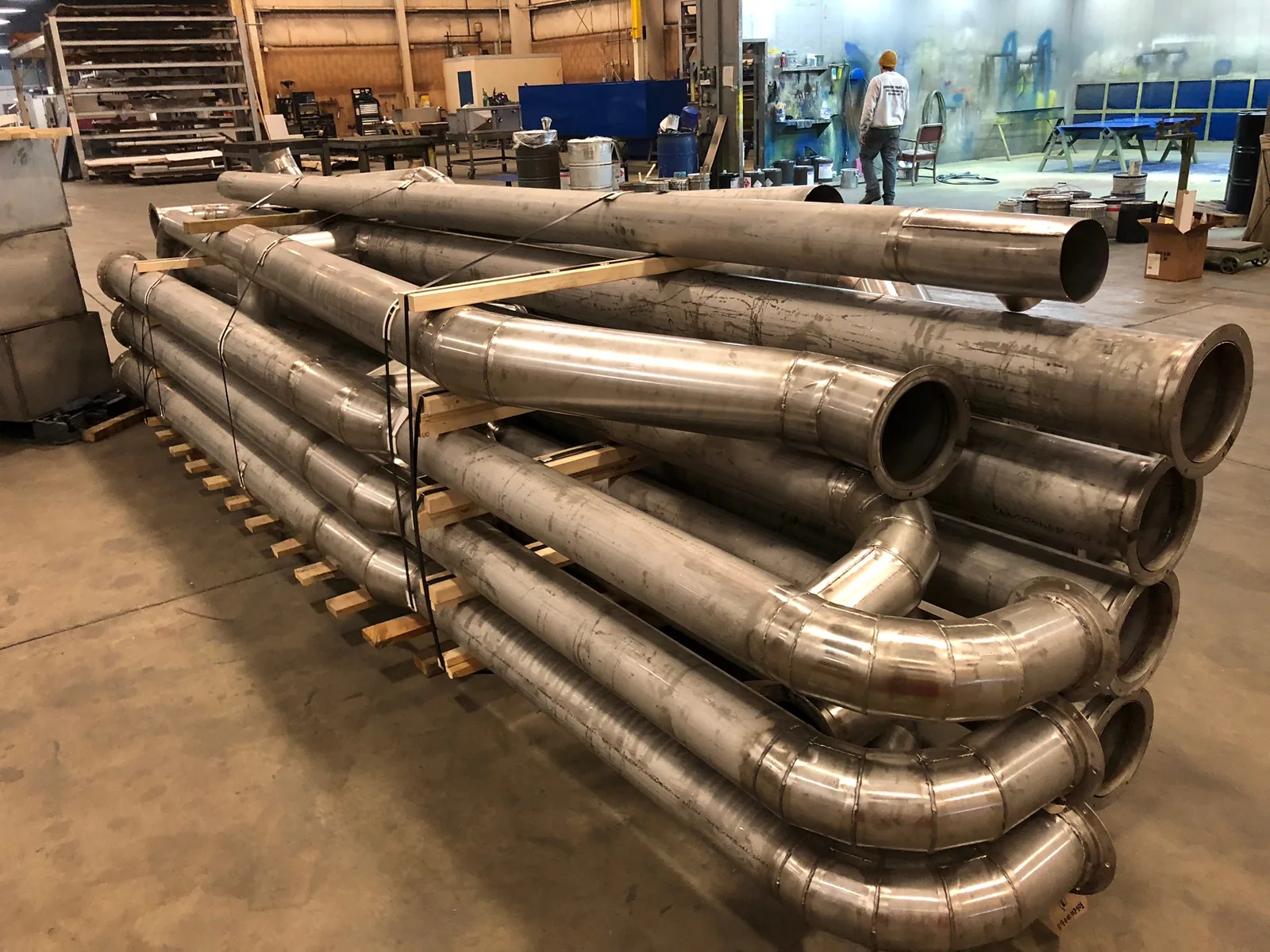

Long duct runs with elbows

Multiple long duct runs combine straight sections, formed elbows, and circular end connections.

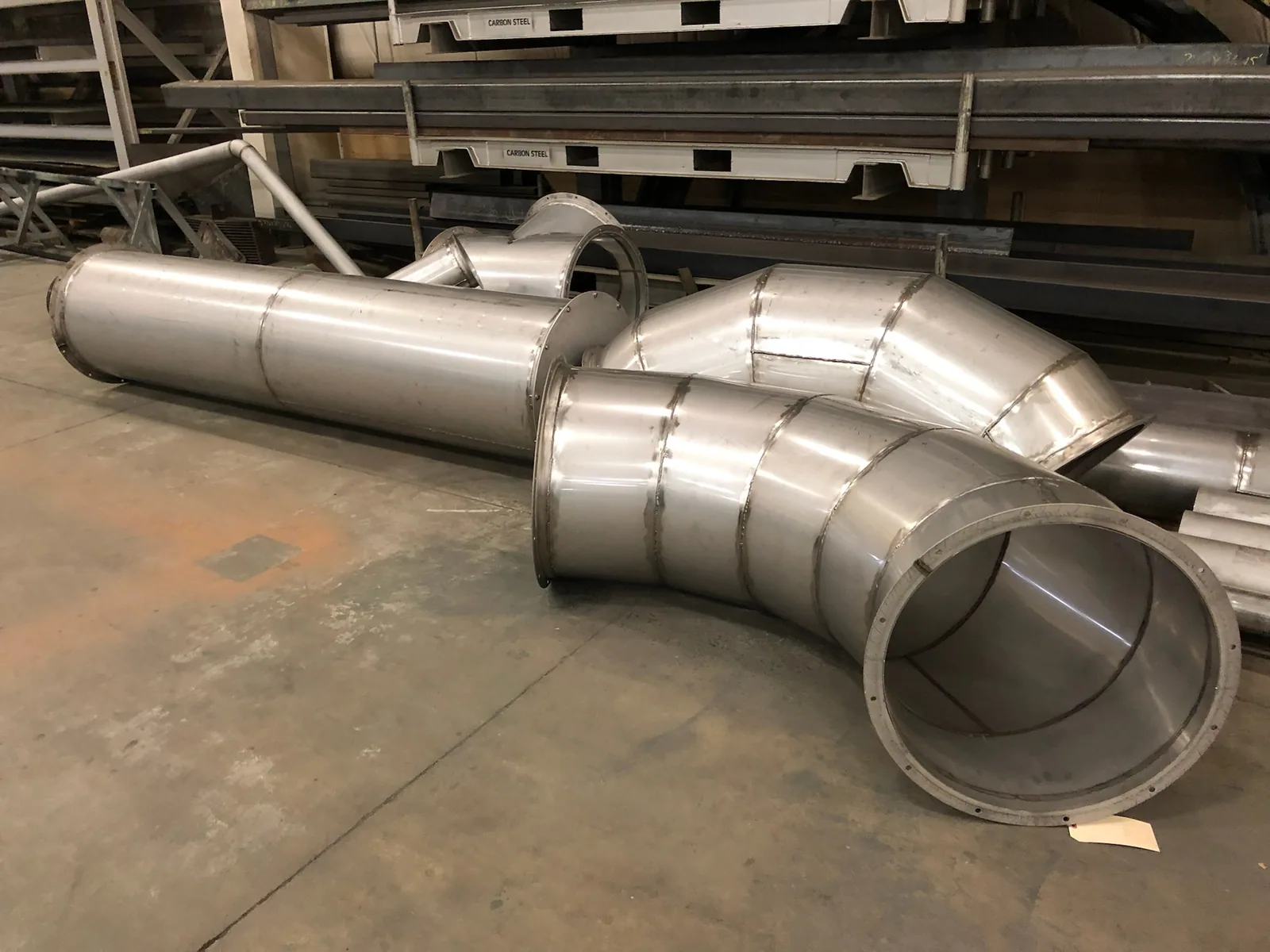

Segmented duct elbow assembly

A large duct elbow uses multiple curved segments to connect the adjoining straight sections.

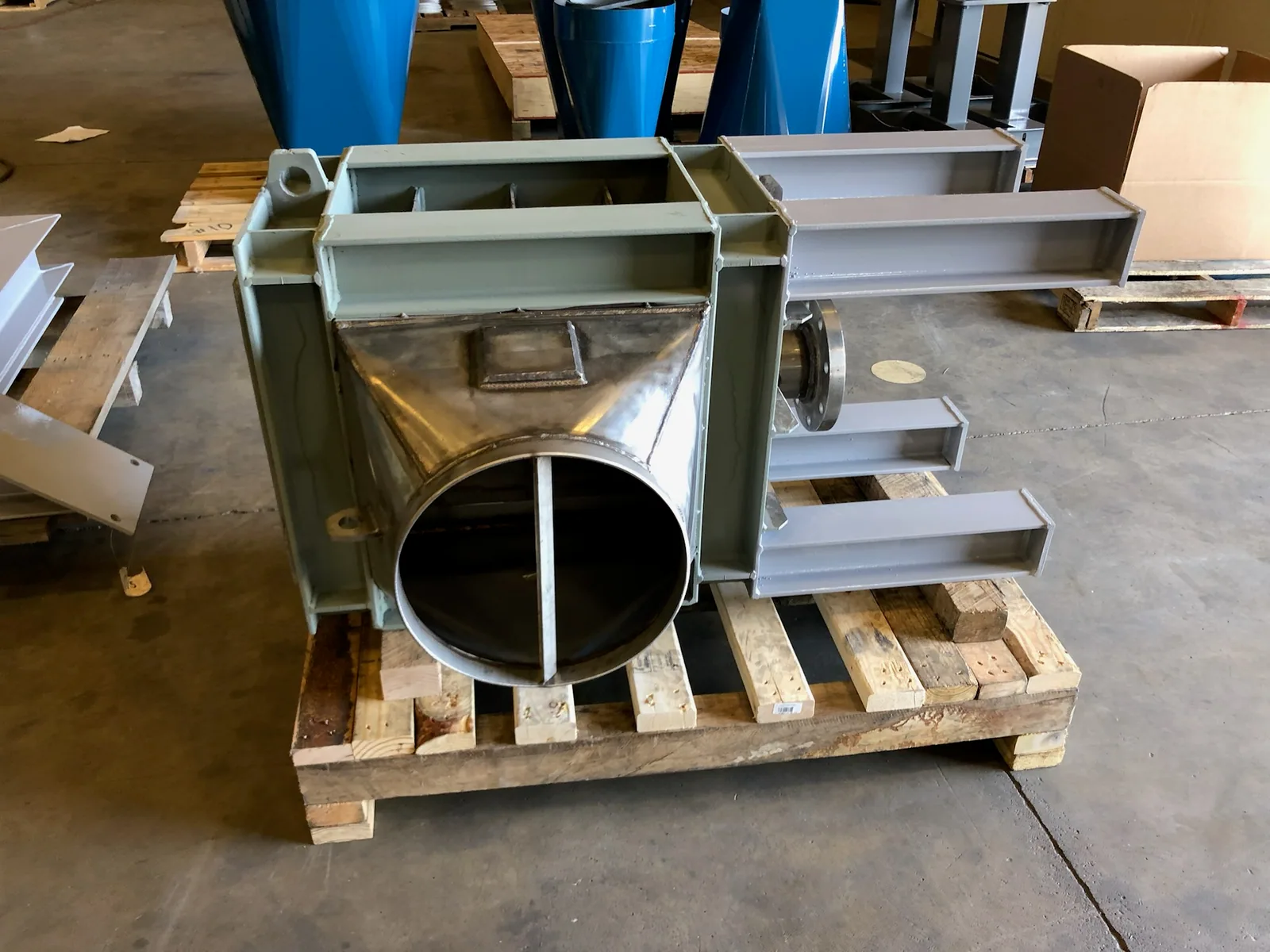

Duct transition with support brackets

A round duct opening meets a formed transition with external support brackets and a rectangular frame.

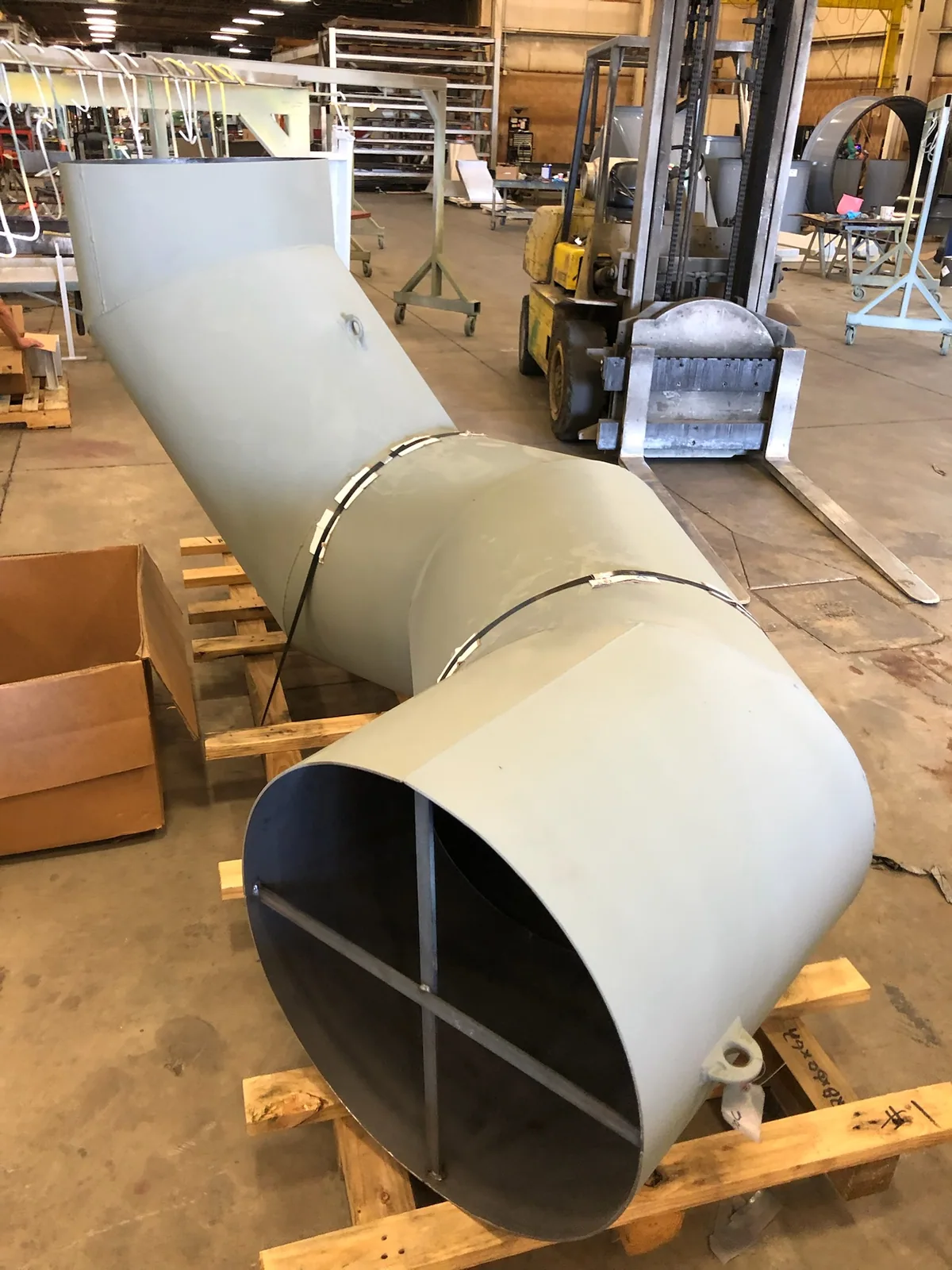

Assembled offset duct sections

Joined straight and angled sections create an offset duct run, with bracing visible inside the circular opening.

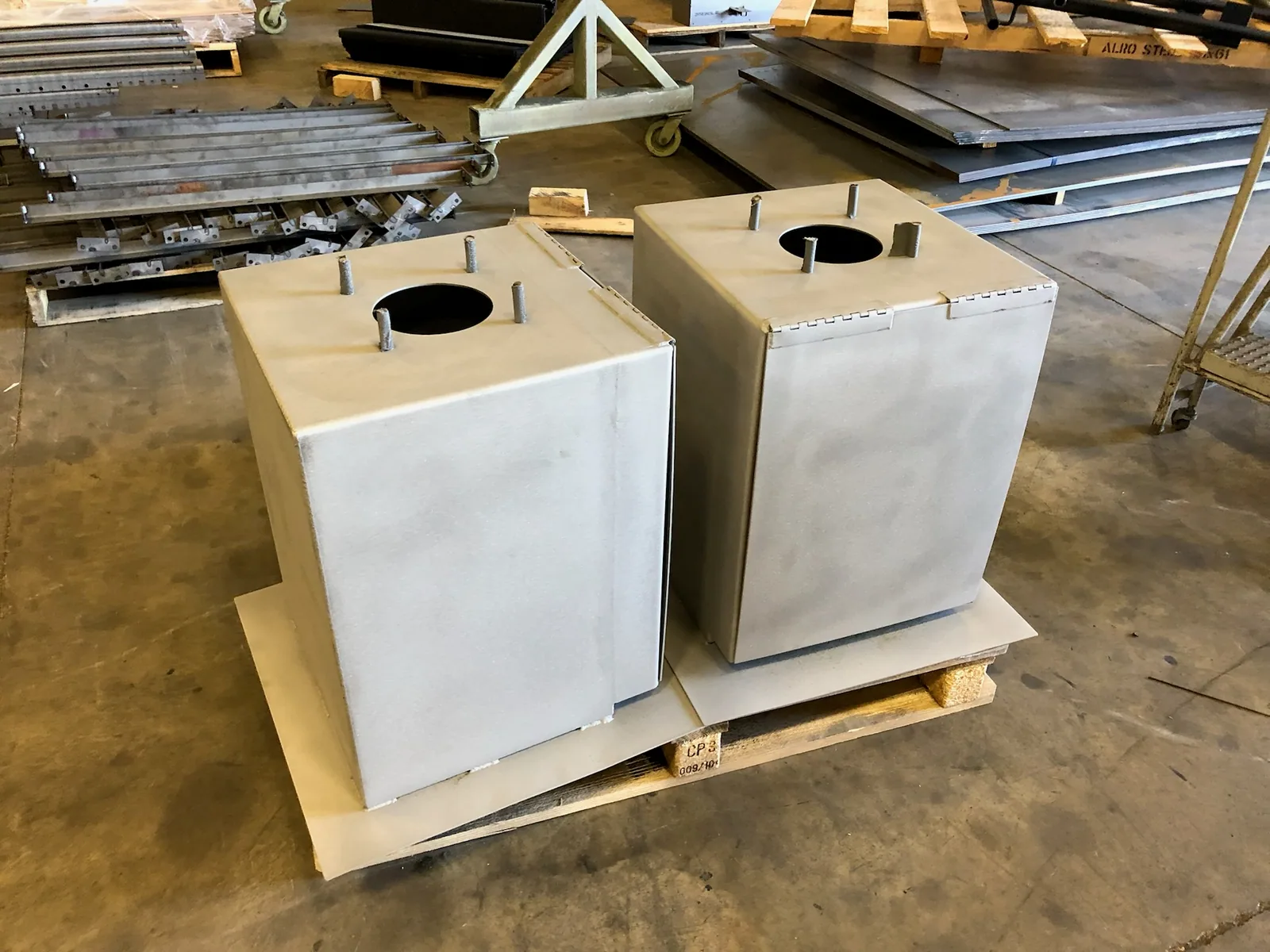

Rectangular fabrications with top openings

Two rectangular fabrications include circular top openings and welded sheet construction.

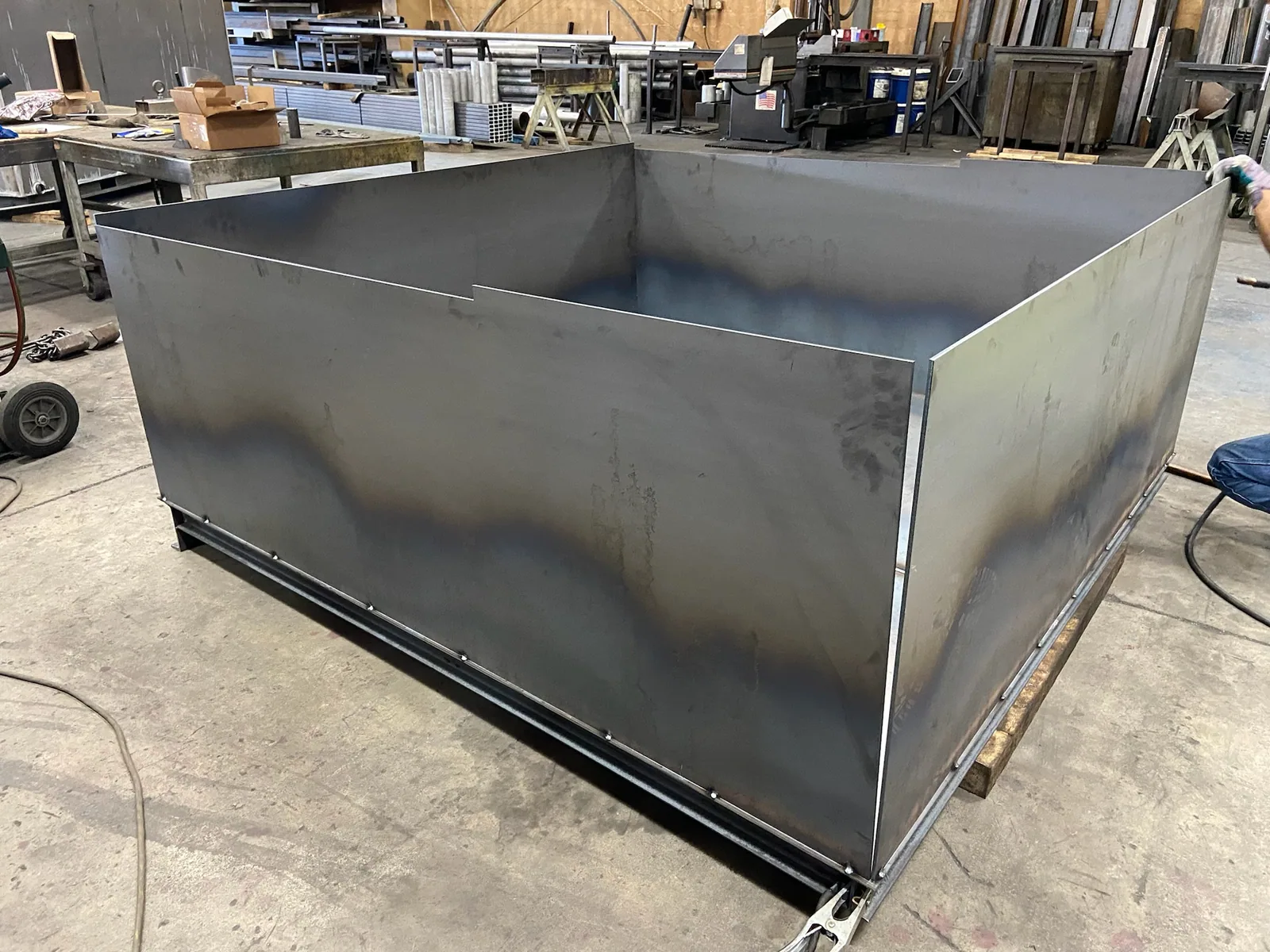

Open rectangular vessel fabrication

An open rectangular fabrication shows welded sheet walls and a perimeter base flange.

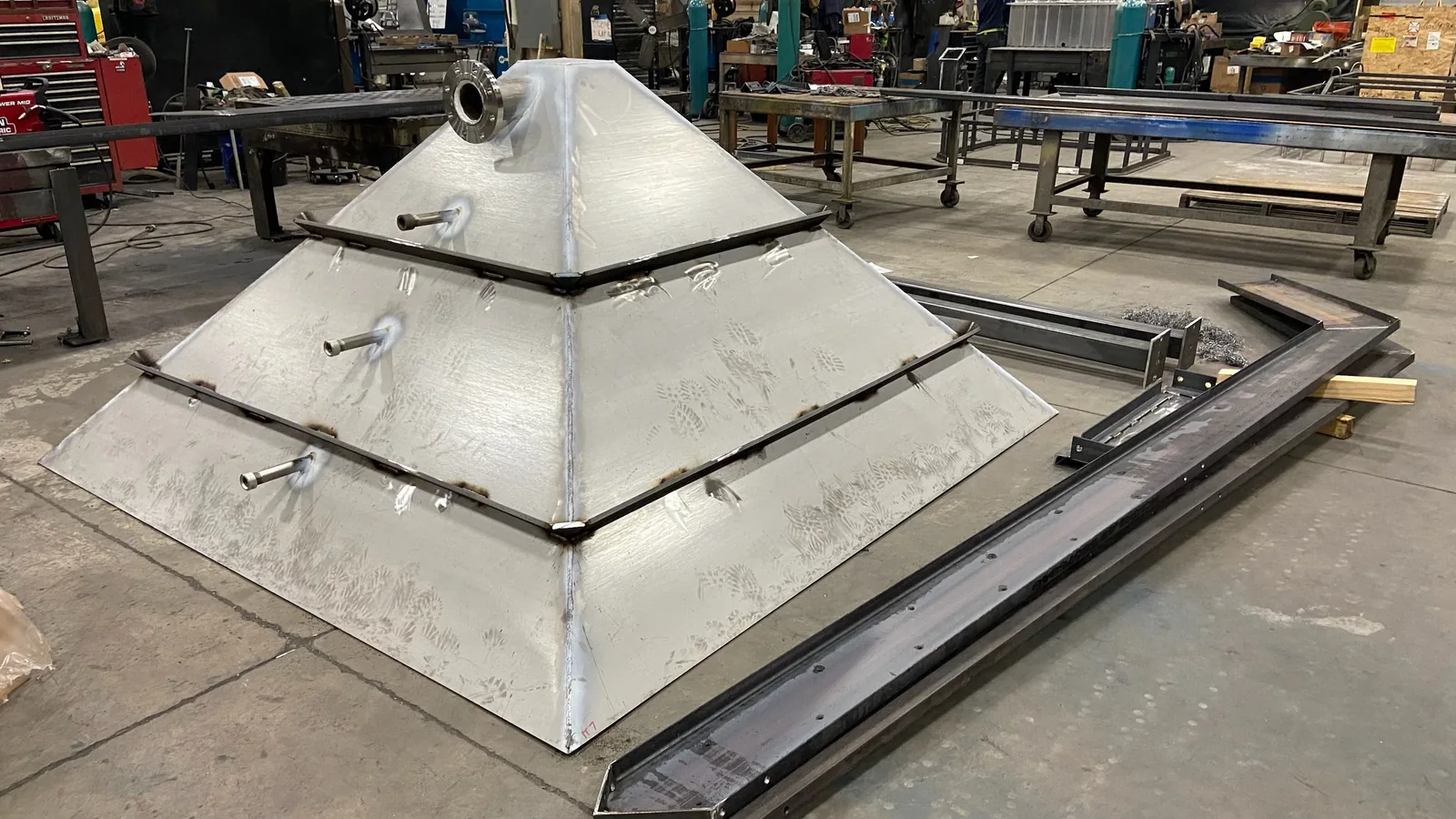

Tapered hood with perimeter frame

Sloped sheet sections form a tapered hood with welded seams and a supporting perimeter frame.

Ribbed sheet assembly detail

Vertical ribs shape a large sheet assembly, with welds along its lower edge and a circular opening nearby.

Frames & assemblies

Open-top box fabrication

A welded box fabrication with a reinforced top edge and an internal crossmember, shown during fabrication.

Large welded frames

Rectangular frames with crossmembers and side rails show the scale of this structural fabrication.

Large industrial assembly rigged for loading

Structural steel assembly prepared for transport

Welded platework and structural supports

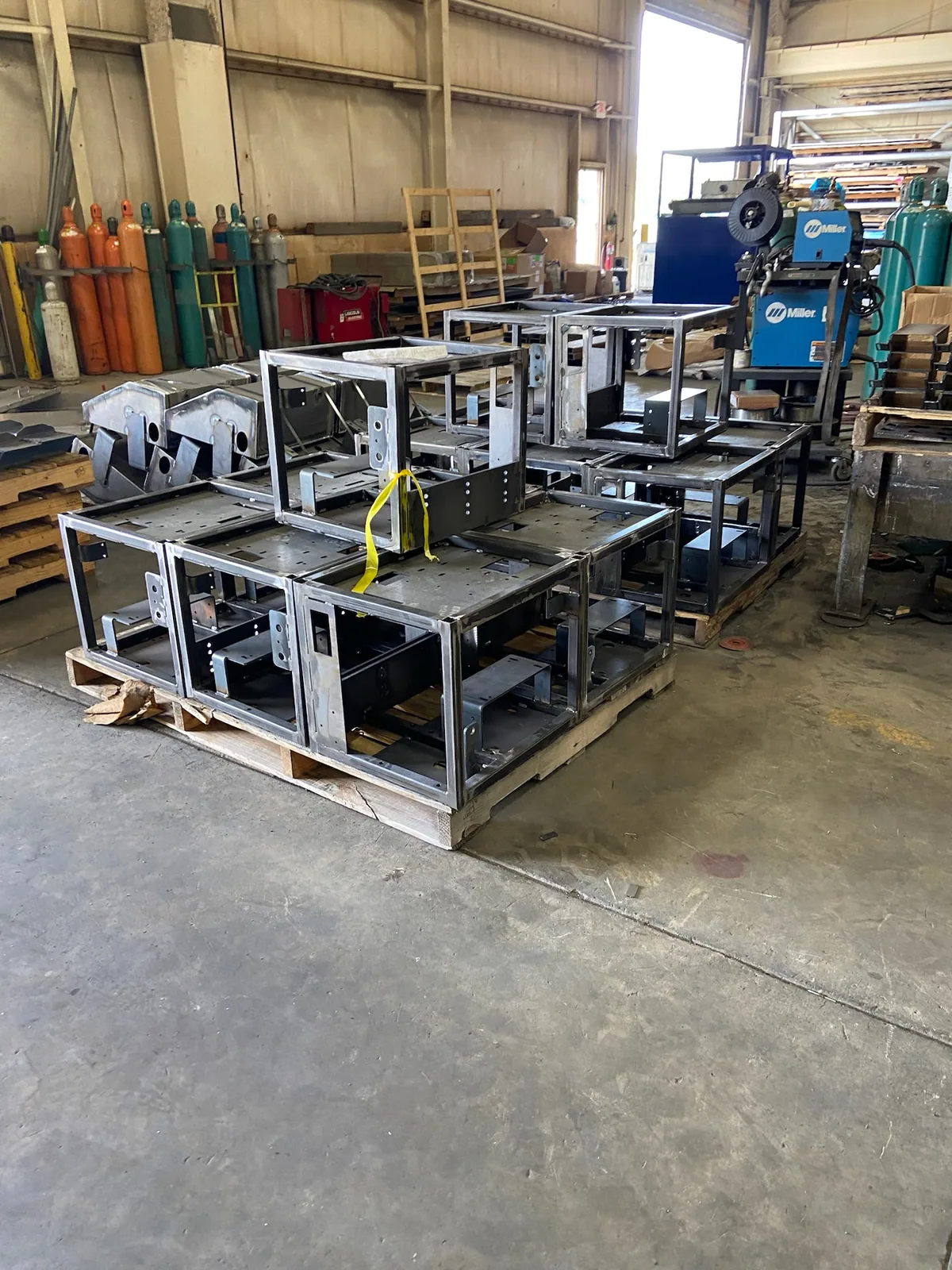

Repeat equipment frames

A group of equipment frames combines welded tube structures with mounting plates and brackets.

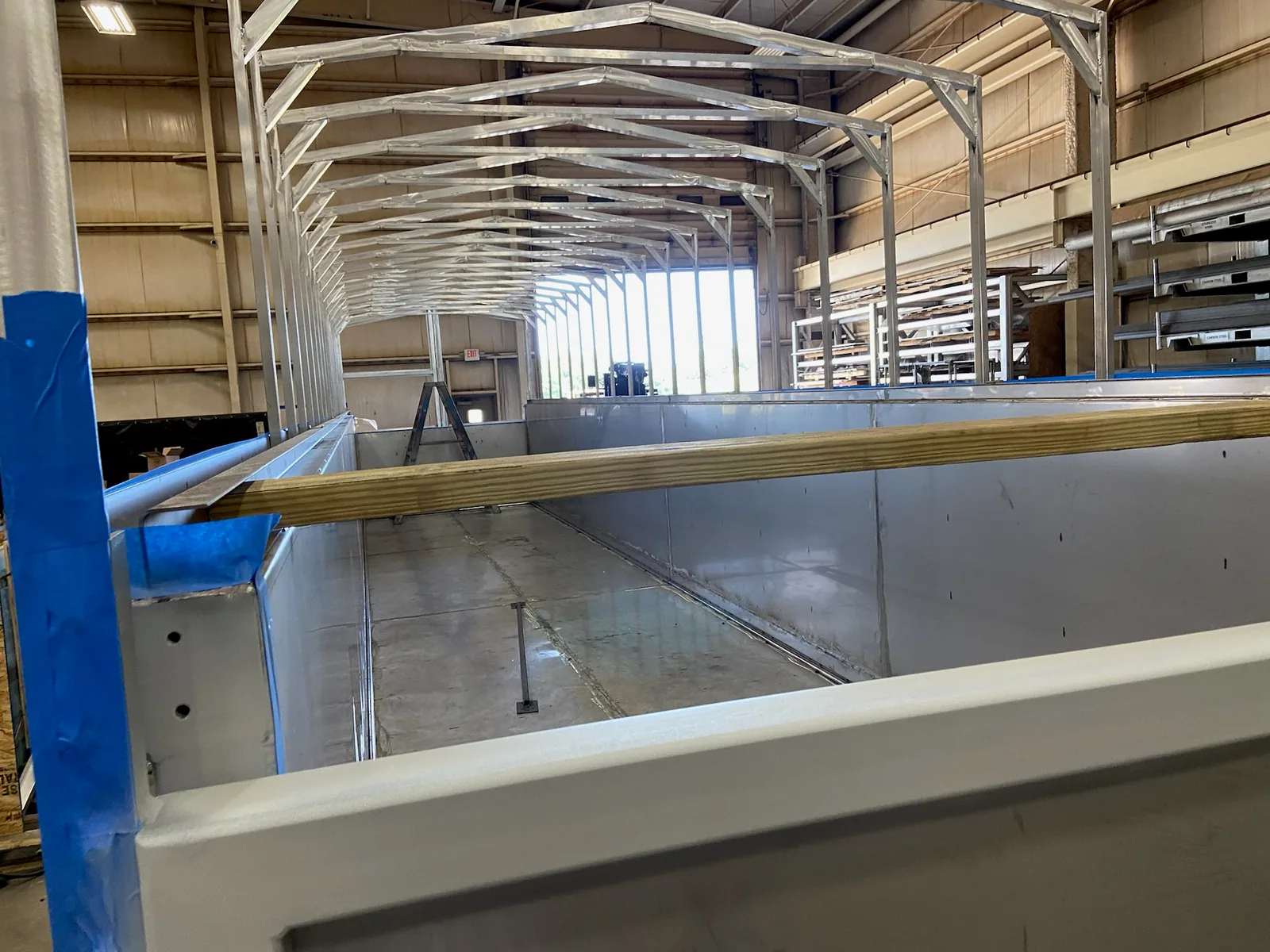

Long enclosure framework

A long enclosure framework combines repeated roof members with fabricated lower panels.

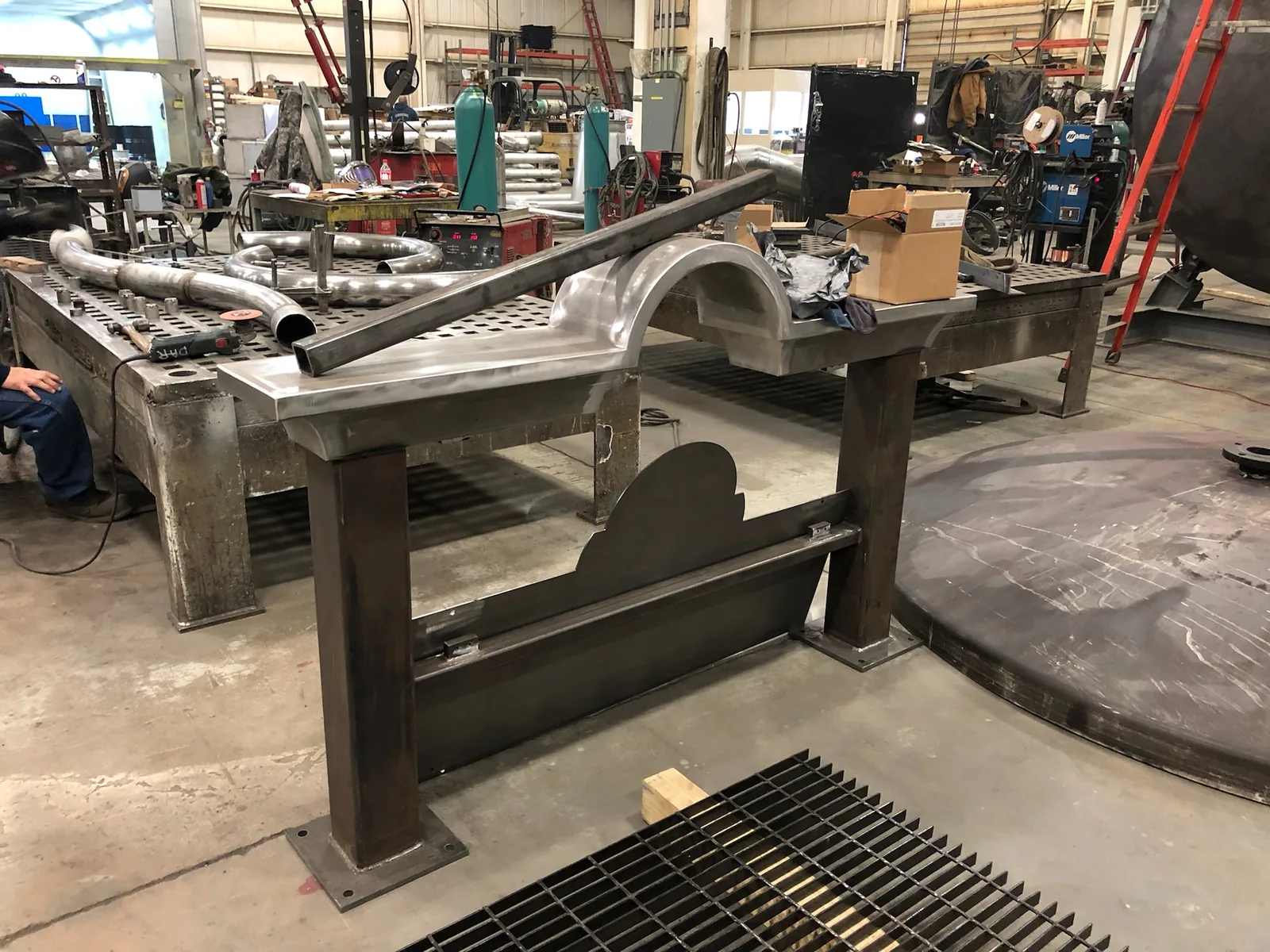

Welded equipment support

A fabricated support combines base plates, upright members, and a curved saddle section.

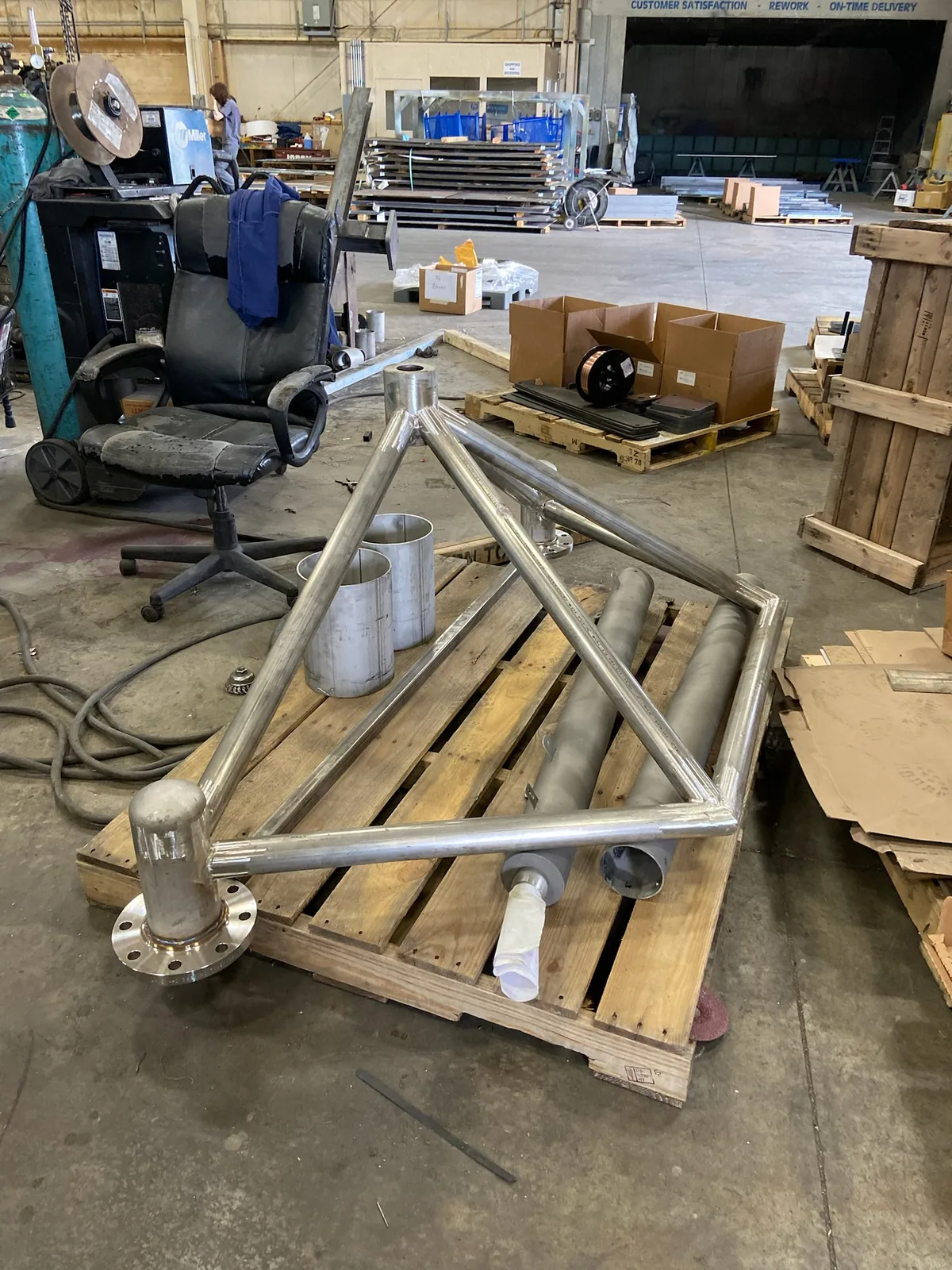

Braced tubular assembly

A tubular assembly combines angled members, diagonal braces, and flanged connections.

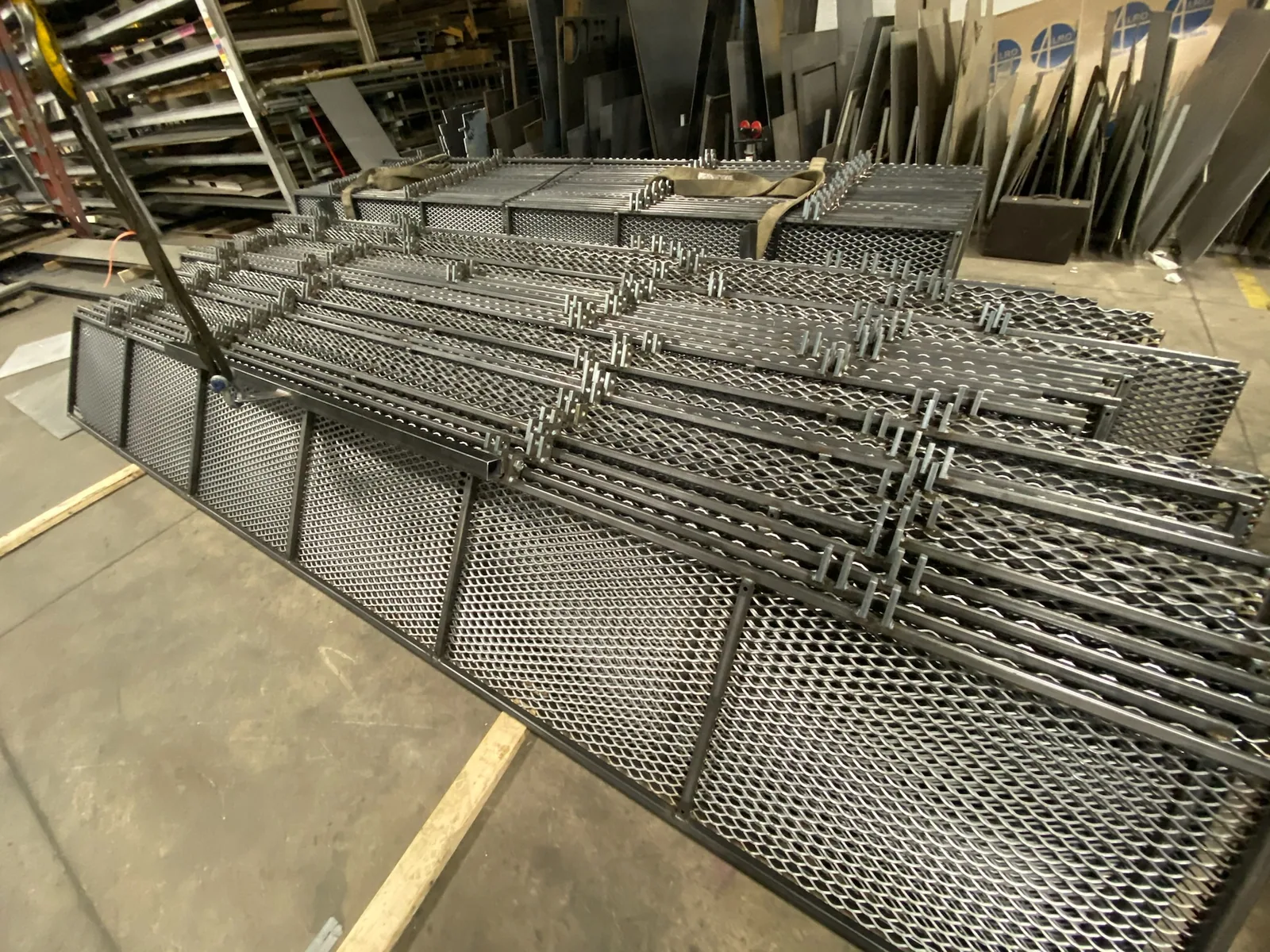

Framed mesh panel assemblies

Rows of framed mesh panels show repeated fabrication of guards and screens.

Frame welding in the shop

A fabricator welds a long frame supported across shop worktables.

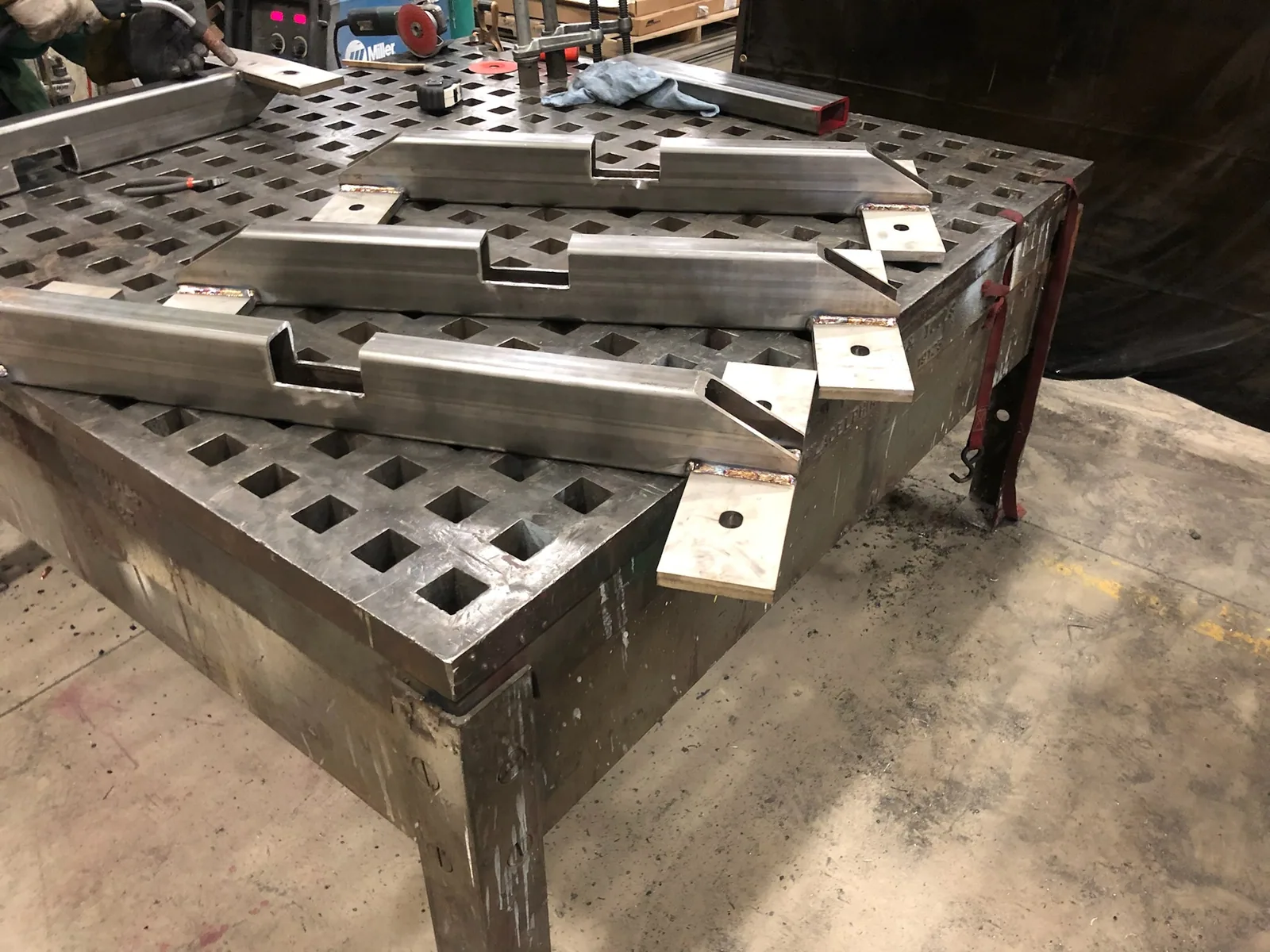

Tube assemblies with mounting plates

Repeated tube assemblies include welded end plates and mounting tabs.

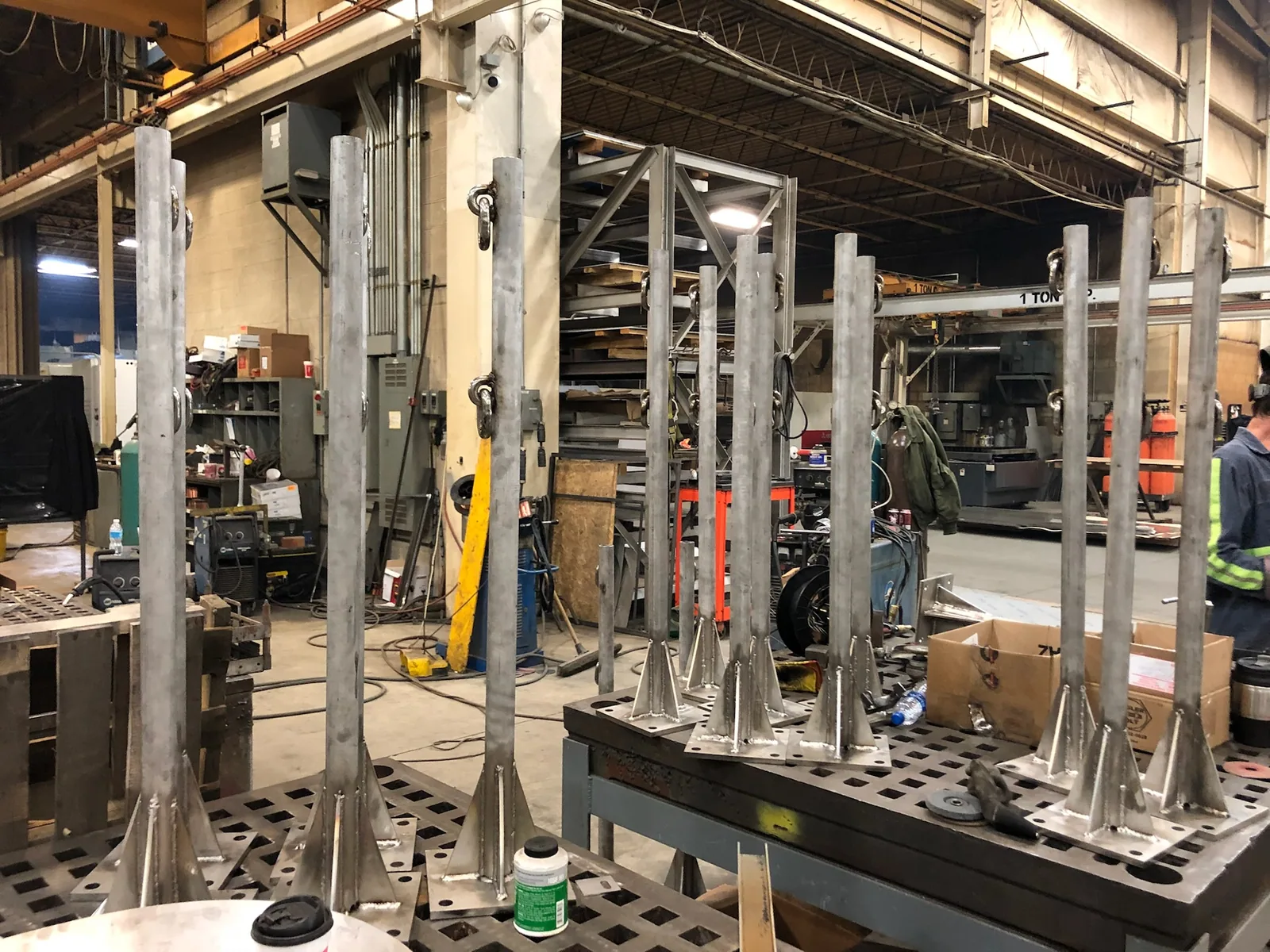

Fabricated support columns

Upright support columns combine base plates, gussets, and upper mounting plates.

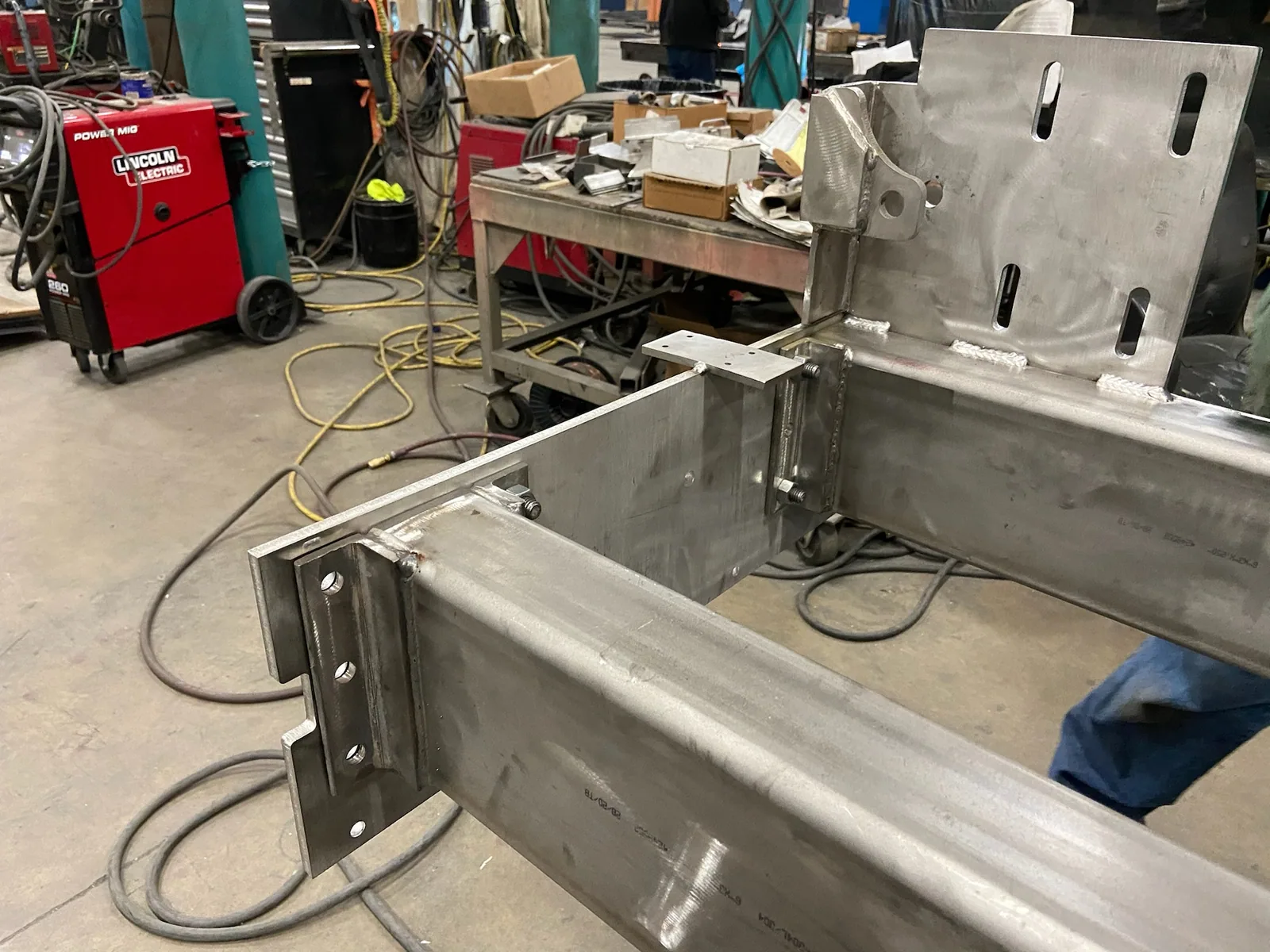

Welded frame connection detail

A close view of an equipment frame shows the plate connections, mounting openings, and intersecting members.

Curved tubular fabrication

Curved tube sections meet at welded connections in a large fabrication supported on timber blocking.

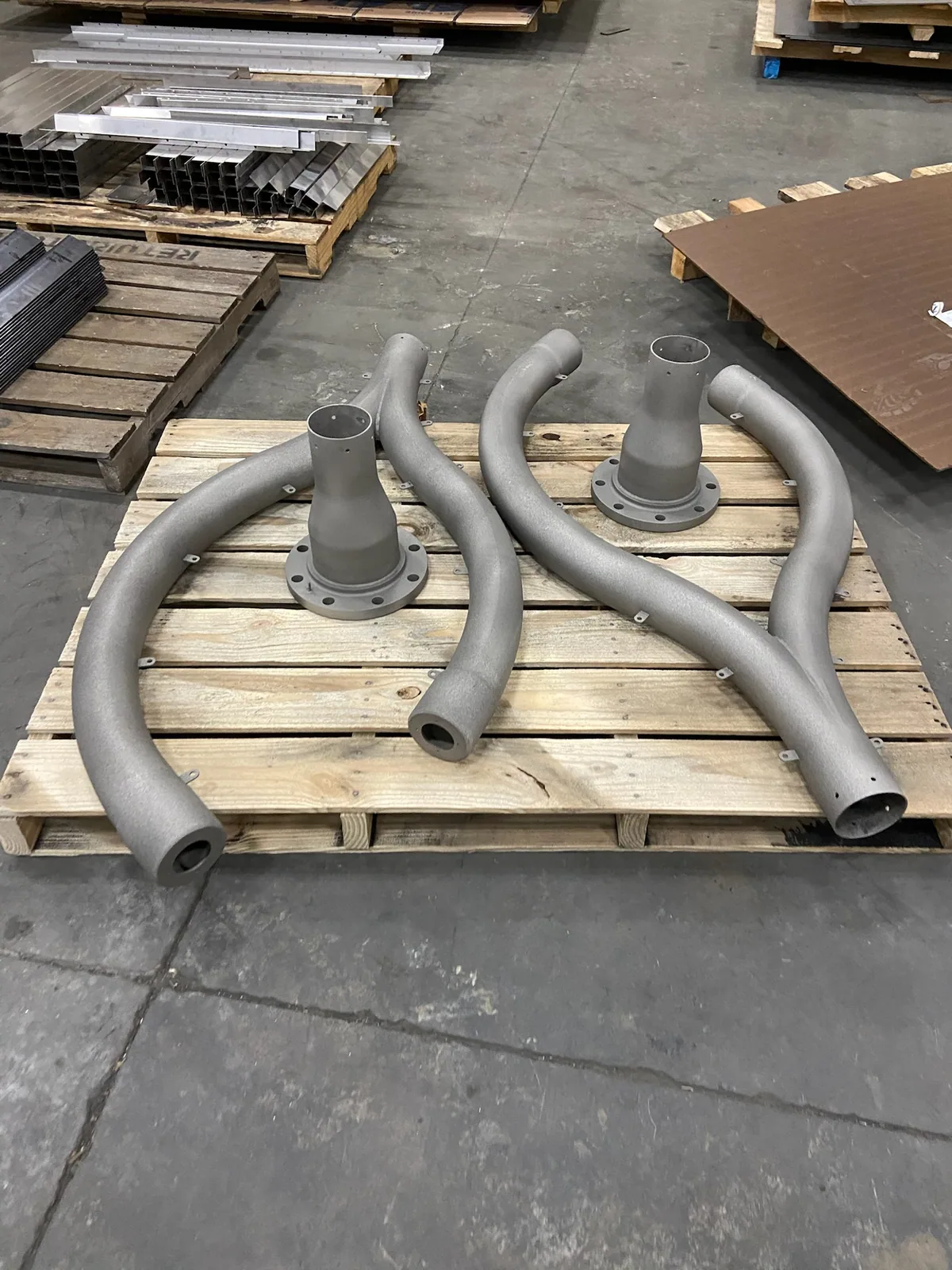

Curved tube component batch

Several curved tube components with open ends are grouped on a pallet.

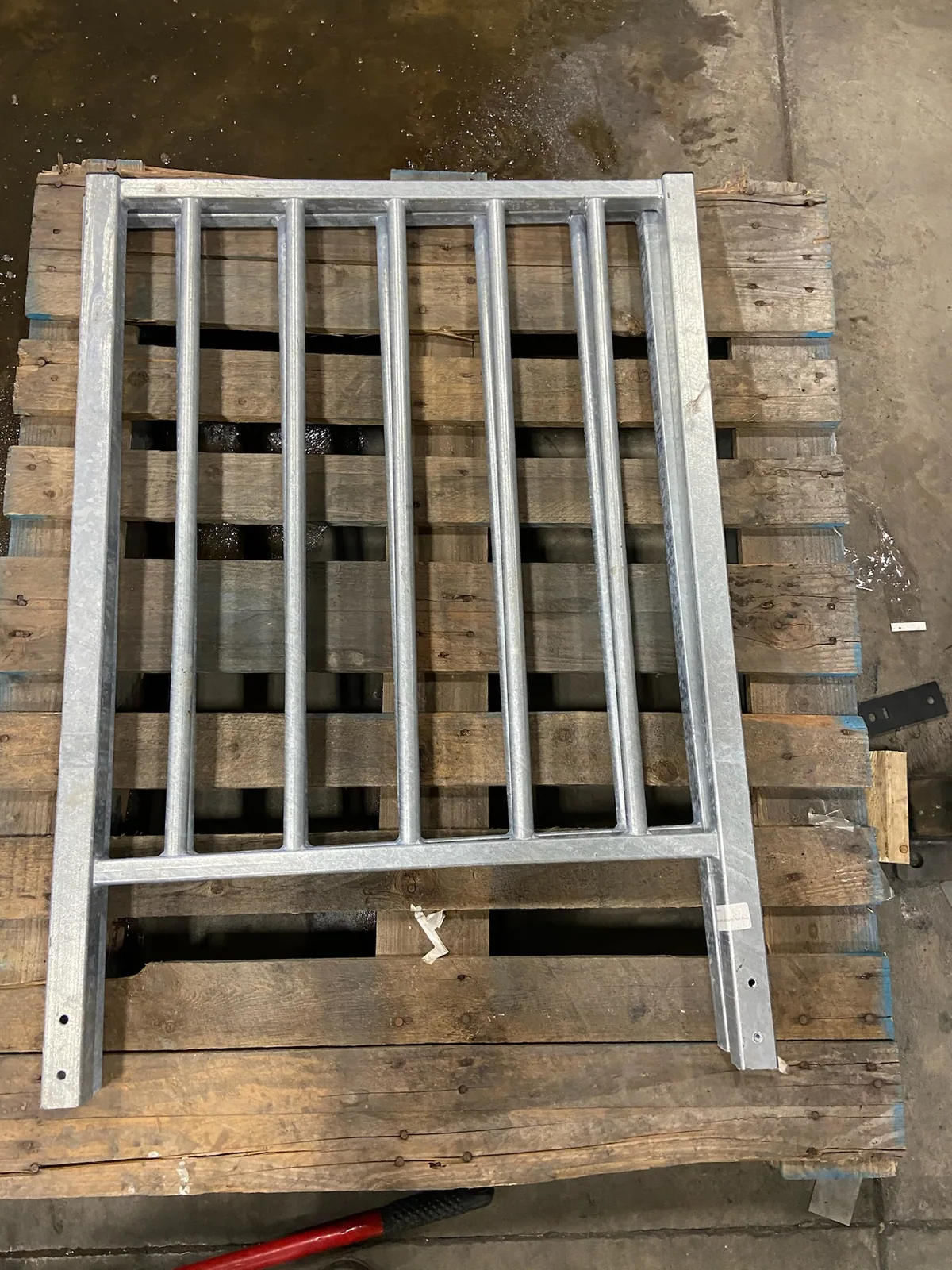

Welded rectangular grid frame

Parallel crossmembers join a rectangular perimeter to form an open grid fabrication.

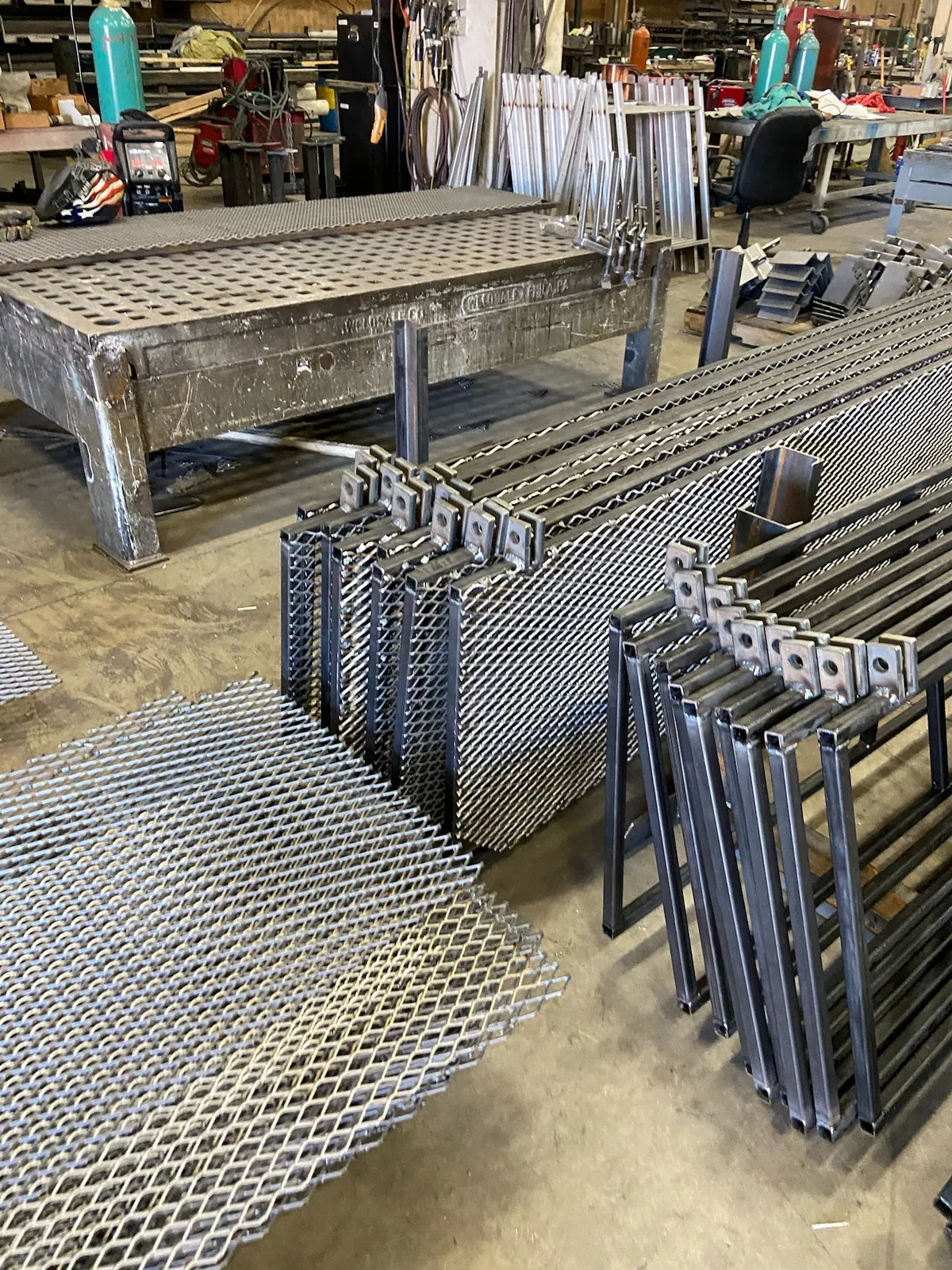

Mesh panel fabrication batch

Framed mesh panels and narrow panel components are grouped in batches beside the fabrication tables.

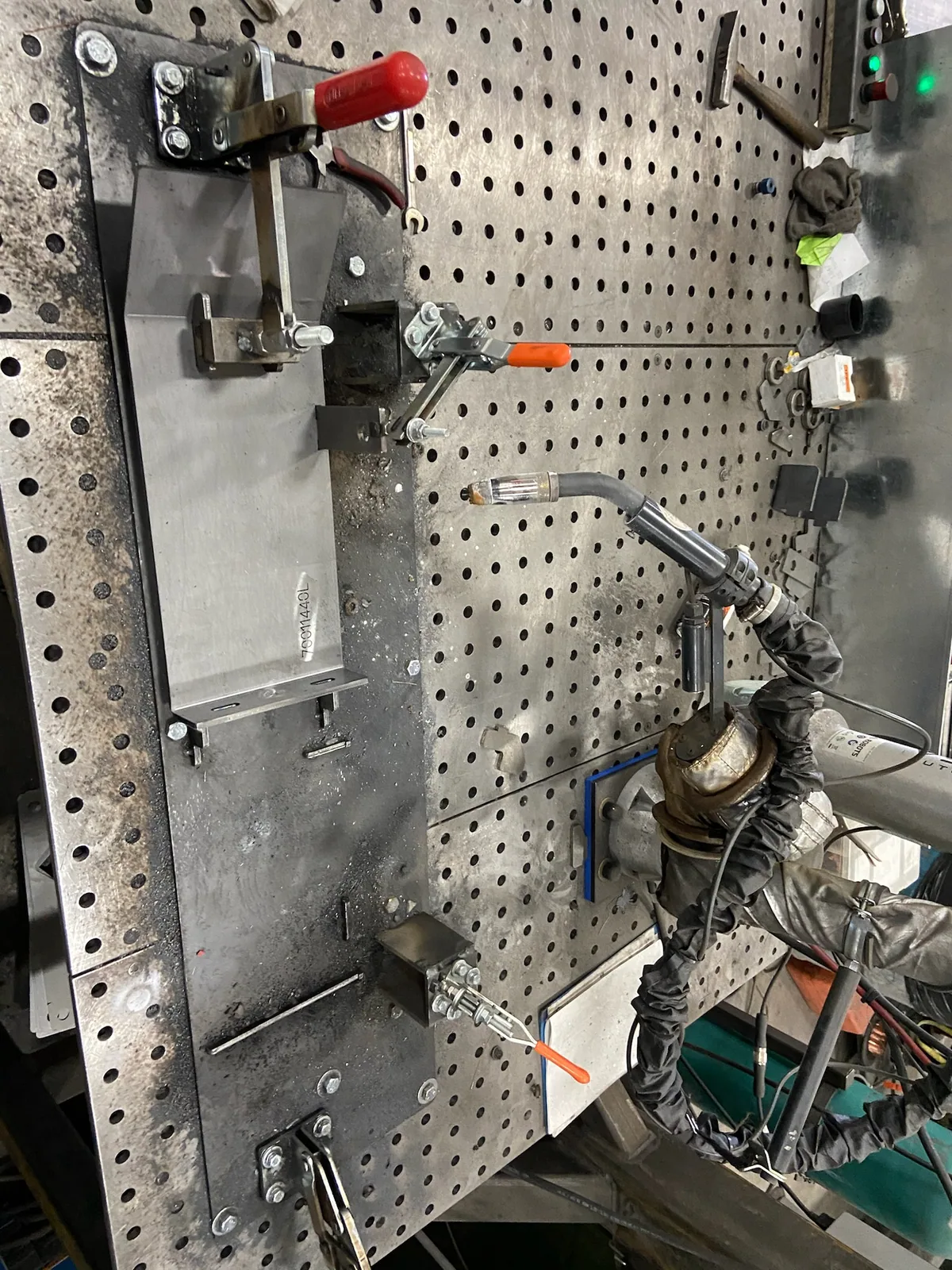

Plate assembly held for welding

Plate components are clamped to a fixture table to hold their positions during fabrication.

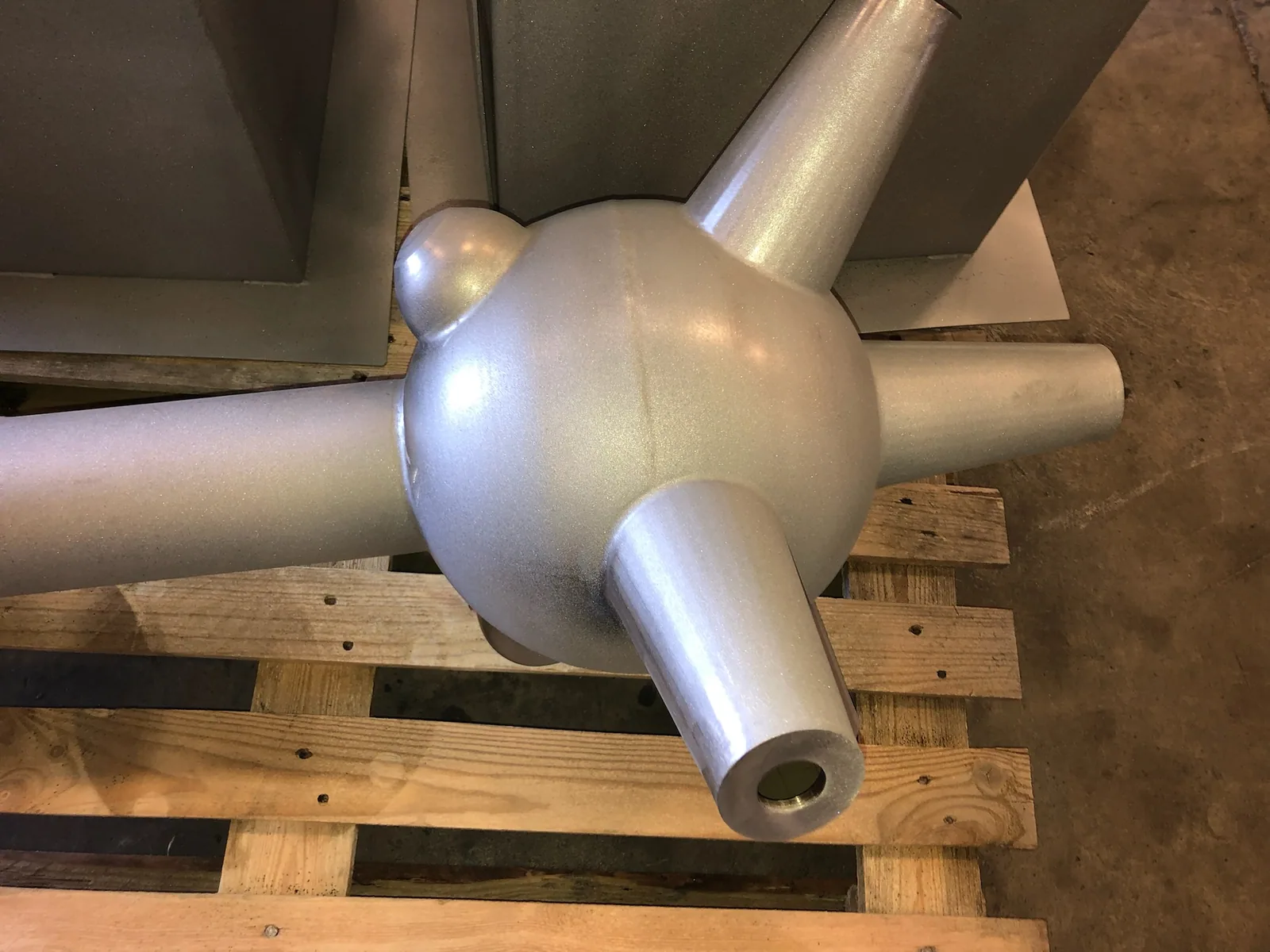

Multi-branch tubular connection

Several tubular branches meet at a rounded central body in this close view of a fabricated connection.

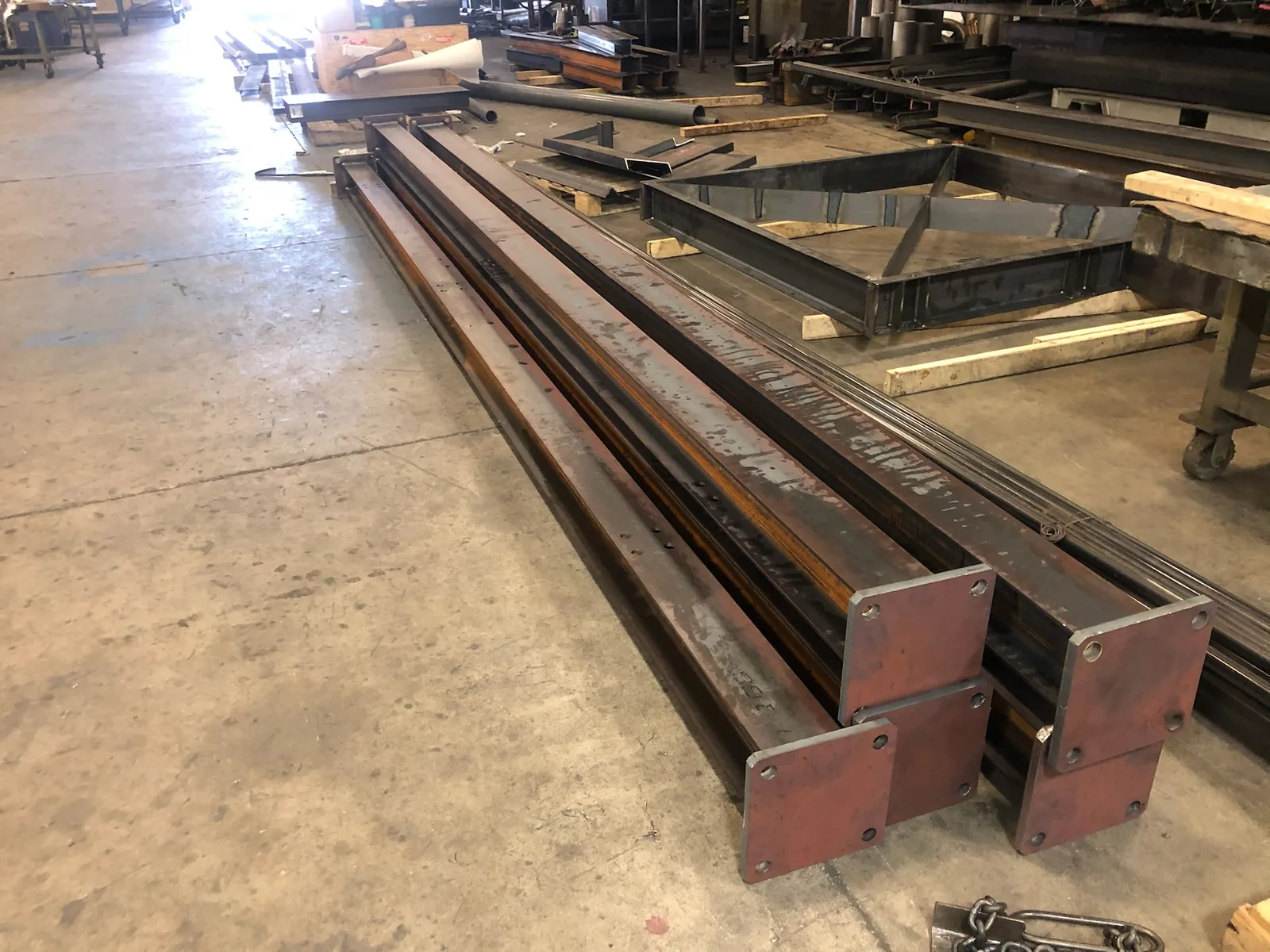

Long members with end plates

Long structural members include welded end plates with mounting holes.

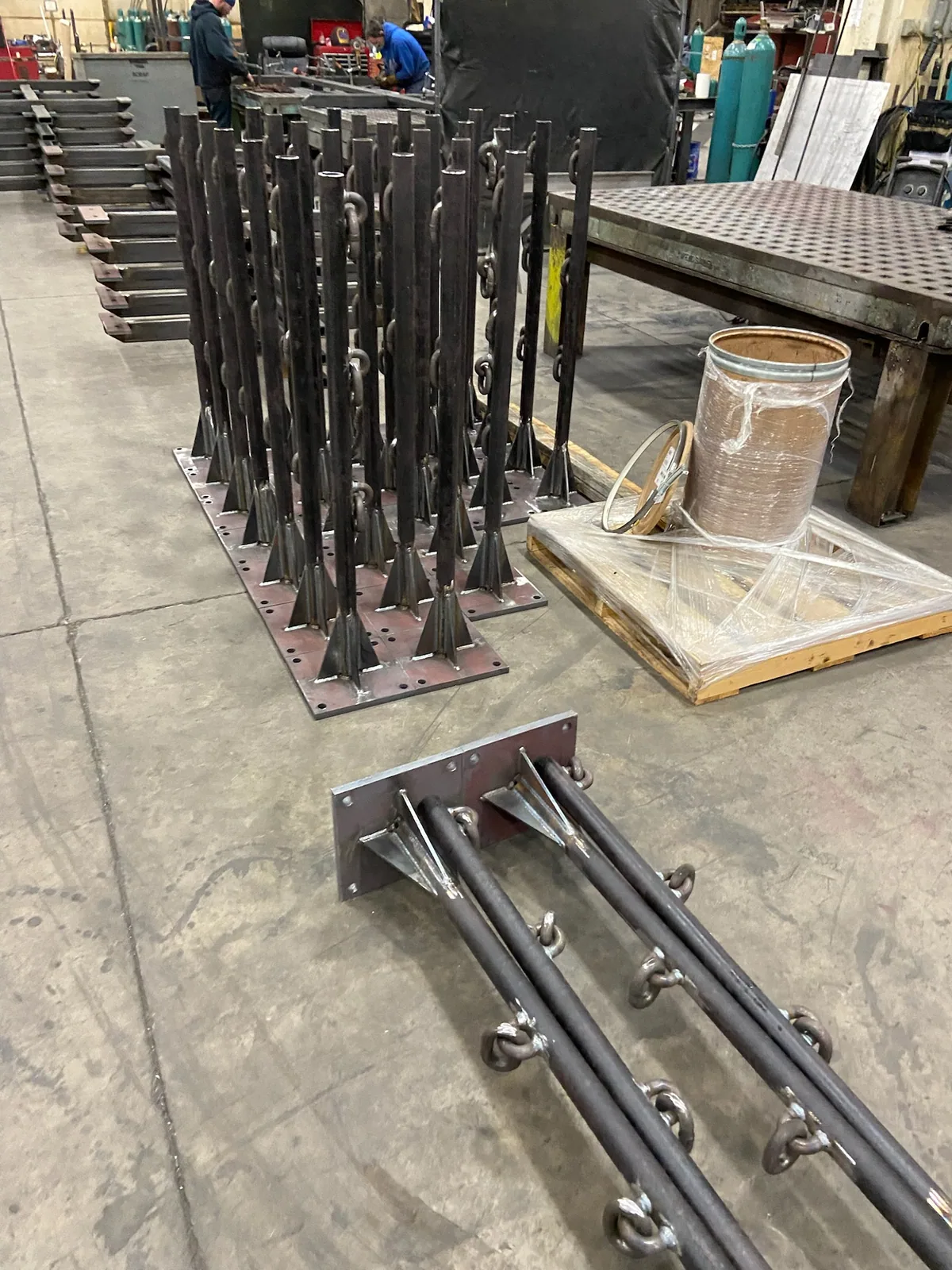

Upright support fabrication batch

Repeated upright supports stand on base plates, with an additional assembly shown in the foreground.

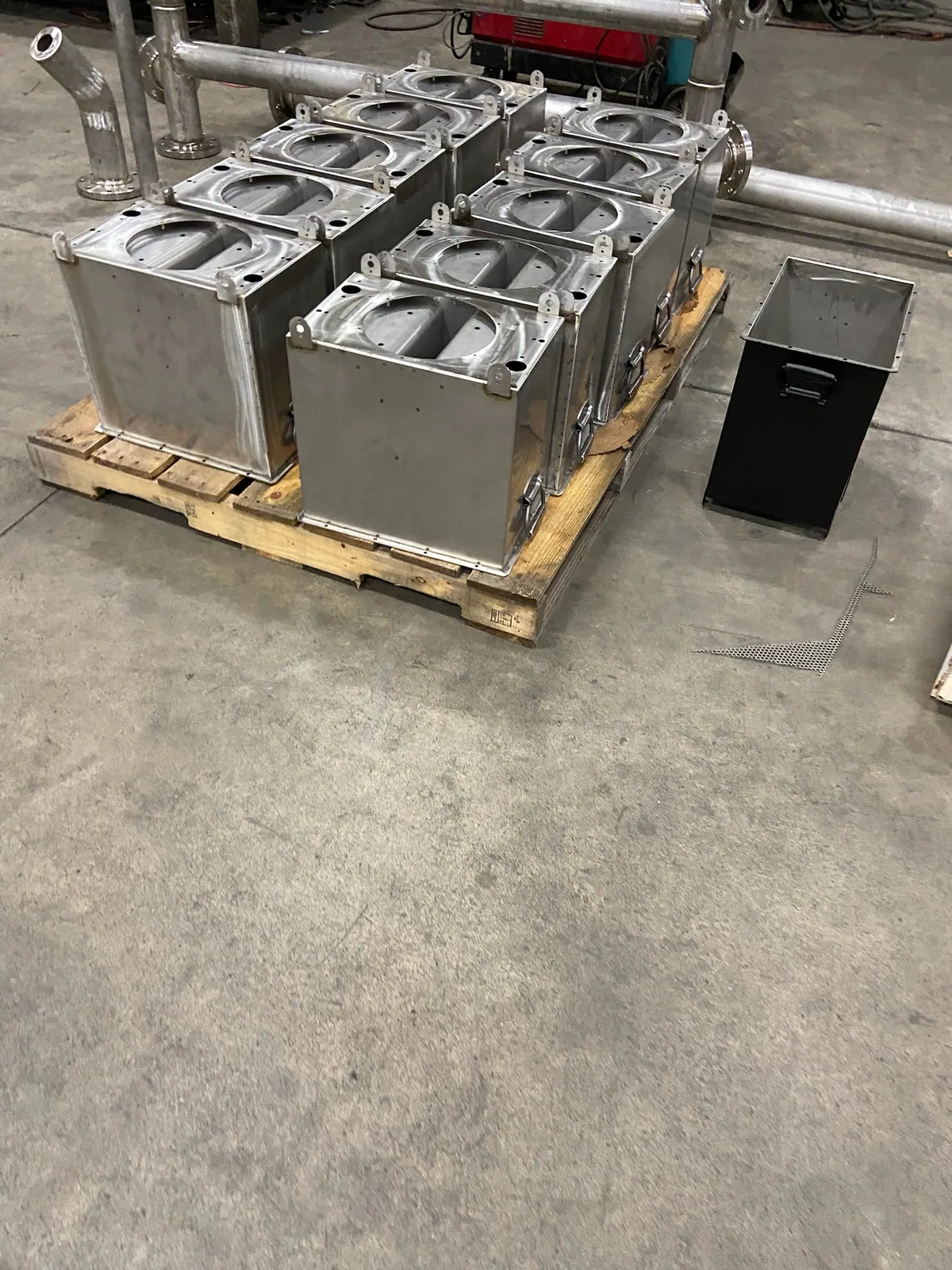

Box assemblies with internal components

Several open box assemblies are grouped on a pallet, with their internal components visible from above.

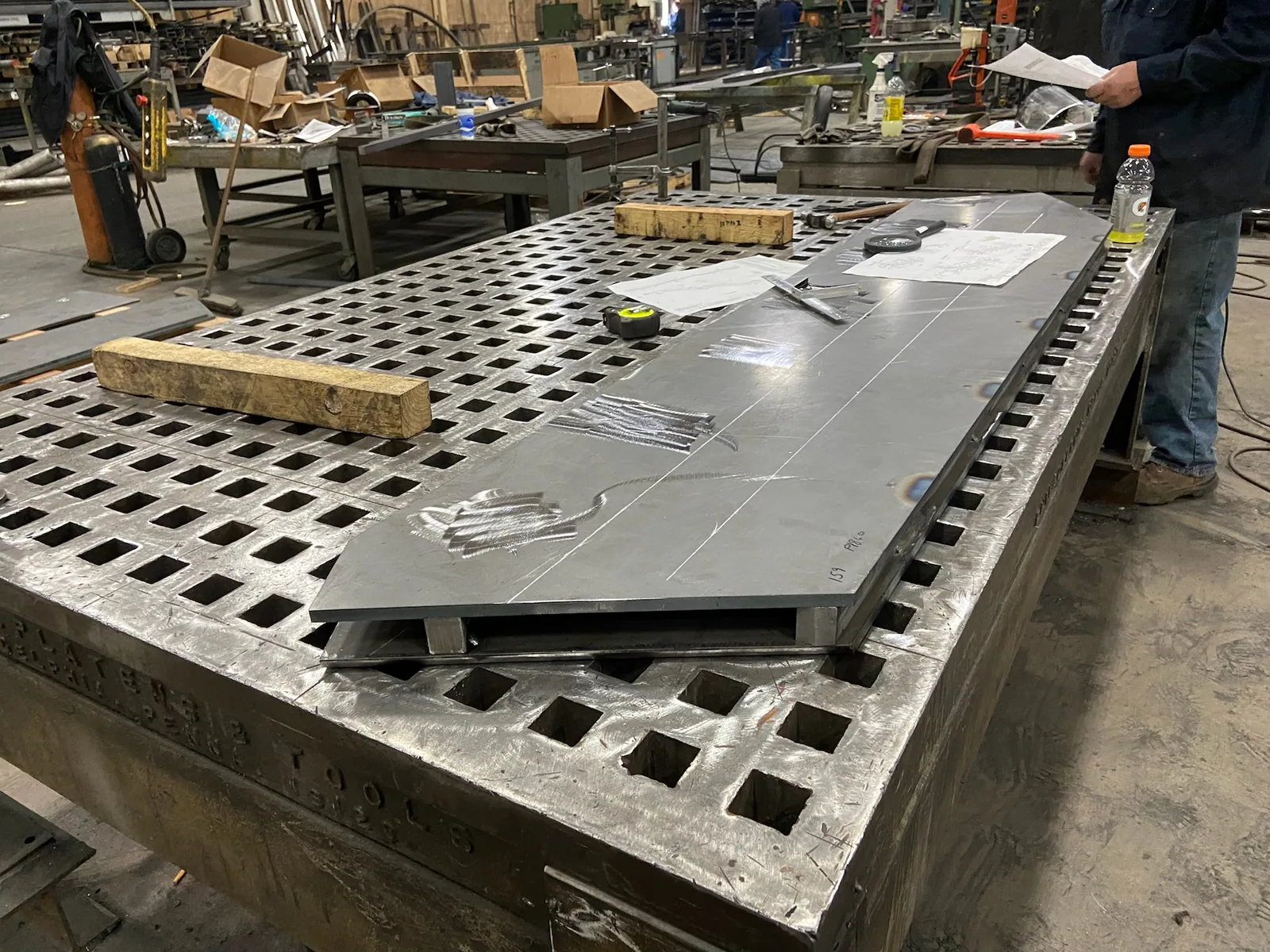

Large plate fabrication on the welding table

A large shaped plate assembly rests on a fixture table with smaller attachment pieces positioned along its surface.

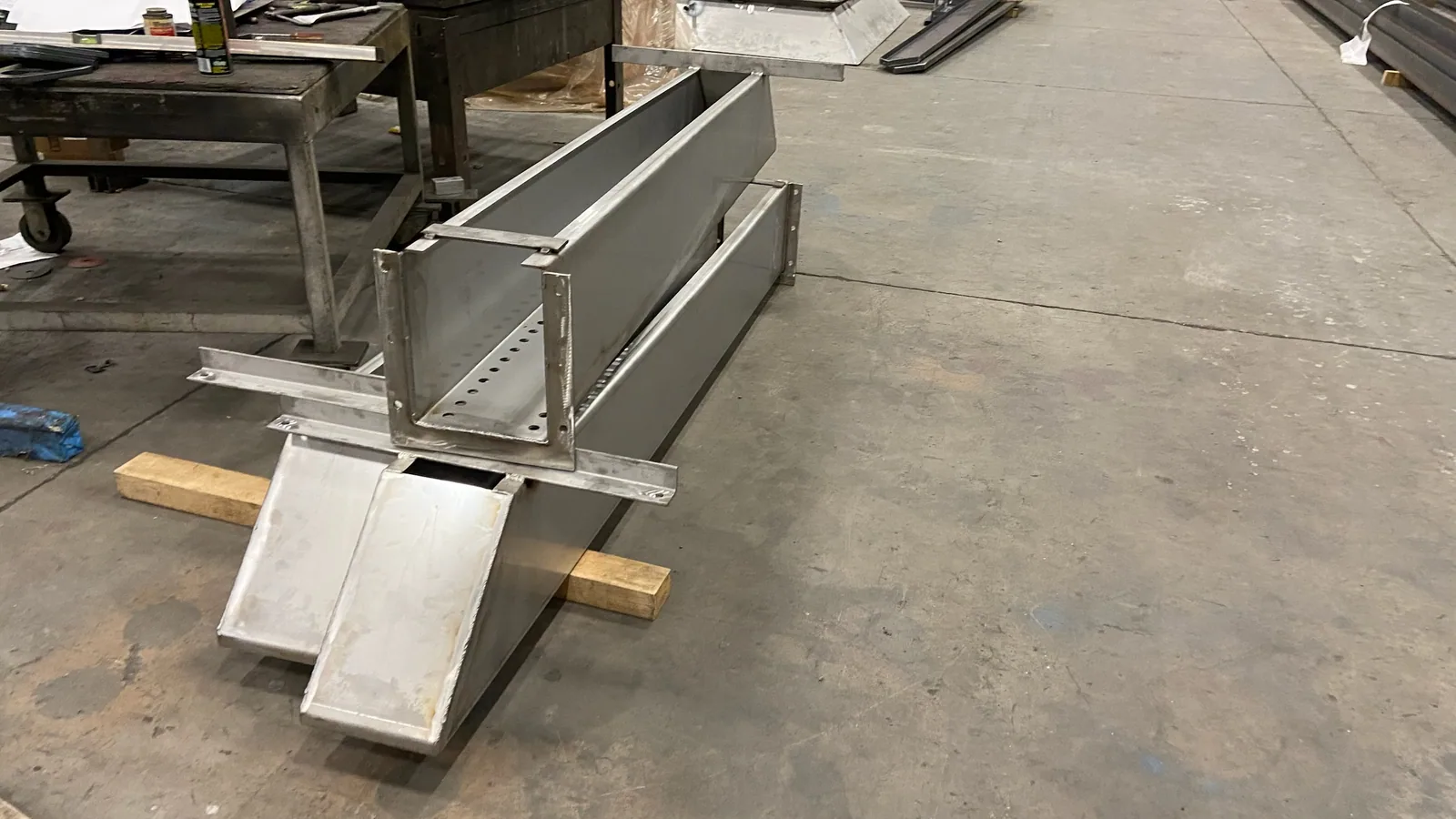

Fabricated channel and support assembly

A channel-shaped fabrication combines tall sides, a reinforced frame, and an extended end section.

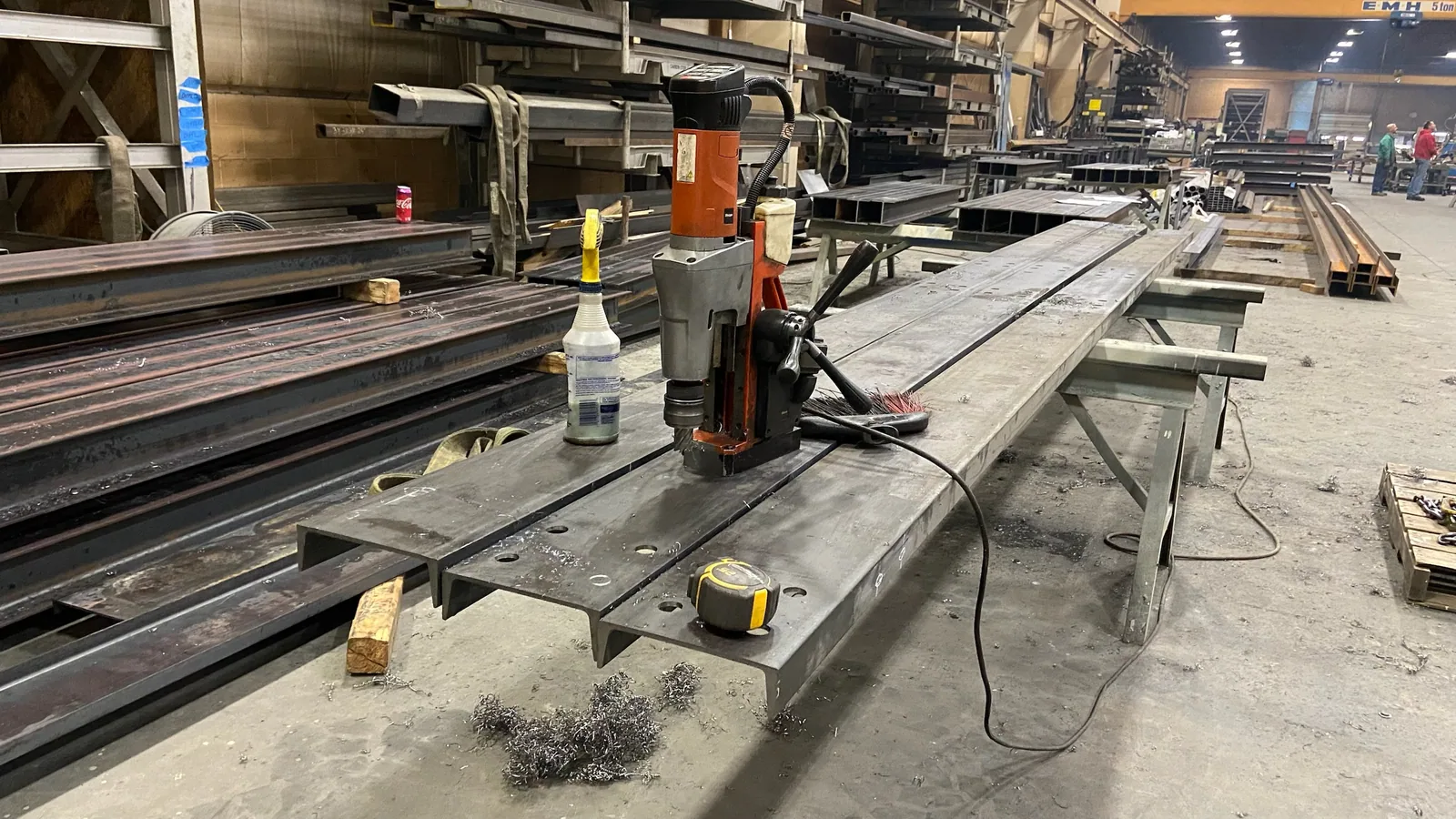

Drilling a long structural member

A portable drilling machine is positioned on a long structural member during shop fabrication.

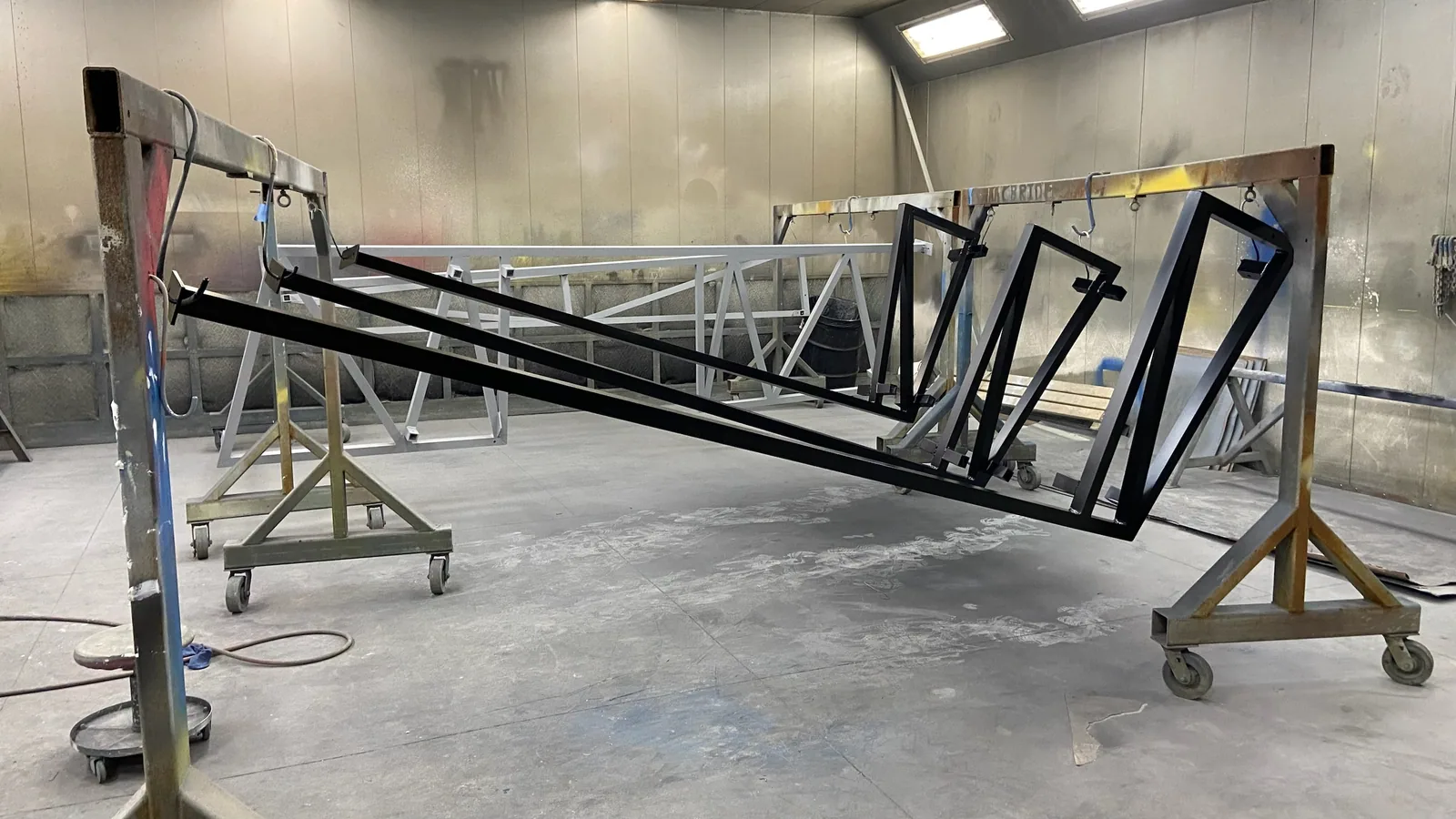

Long truss-style framework

A long fabricated framework uses diagonal bracing and transverse supports along its length.

Parts & forming

Formed production parts

Repeated formed parts with slotted mounting holes are stacked together on a pallet.

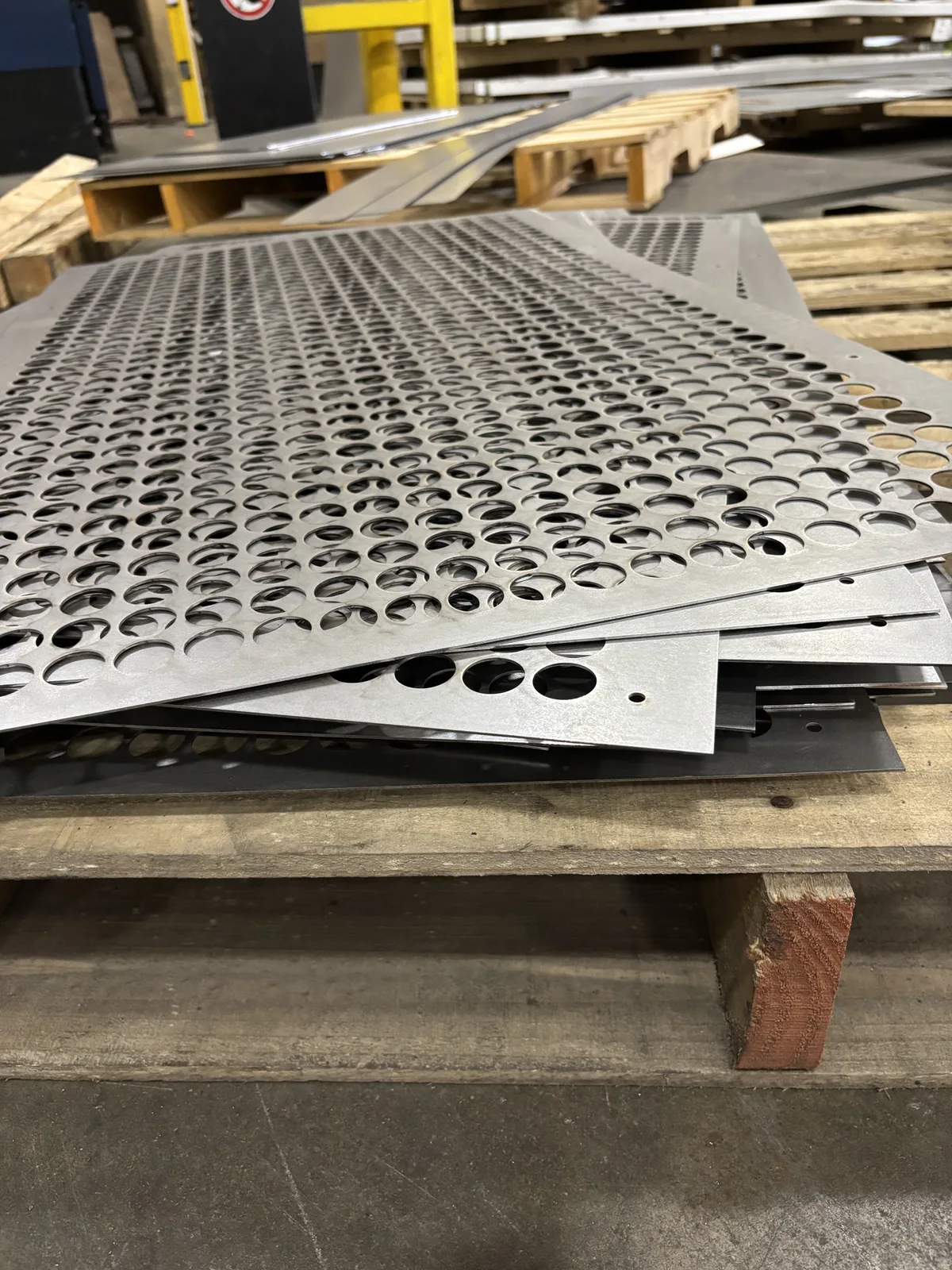

Perforated sheet panels

Sheet-metal panels combine a repeated circular opening pattern with mounting holes around the perimeter.

Formed brackets with oval cutouts

Stainless-steel brackets combine elongated cutouts with formed flanges, shown stacked together in the Ahner shop.

Formed channel sections

A batch of formed channel sections is stacked with its repeated profiles visible from the ends.

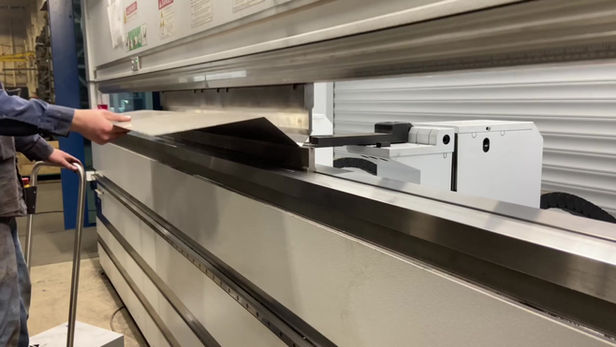

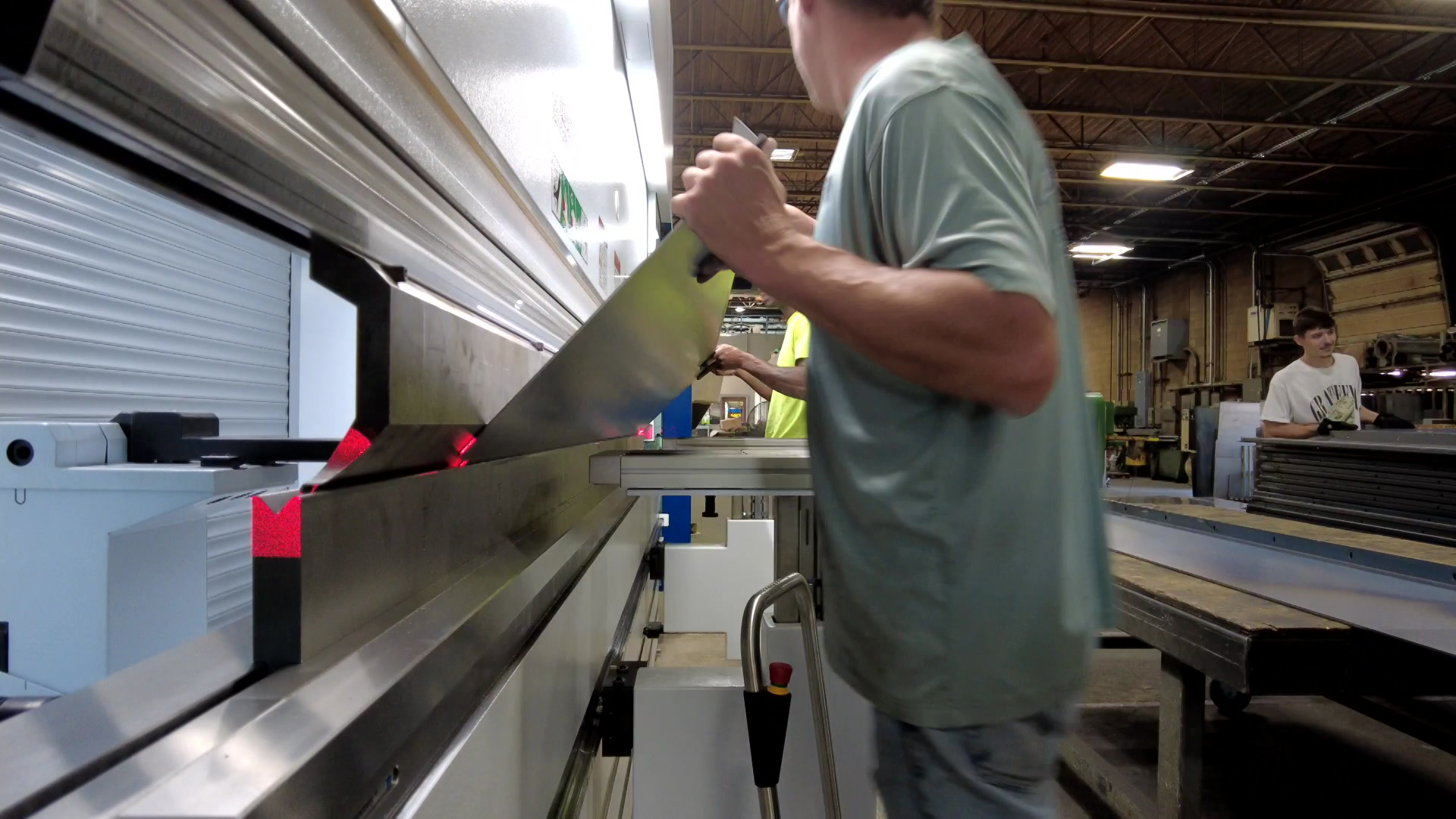

Press brake forming a sheet metal part

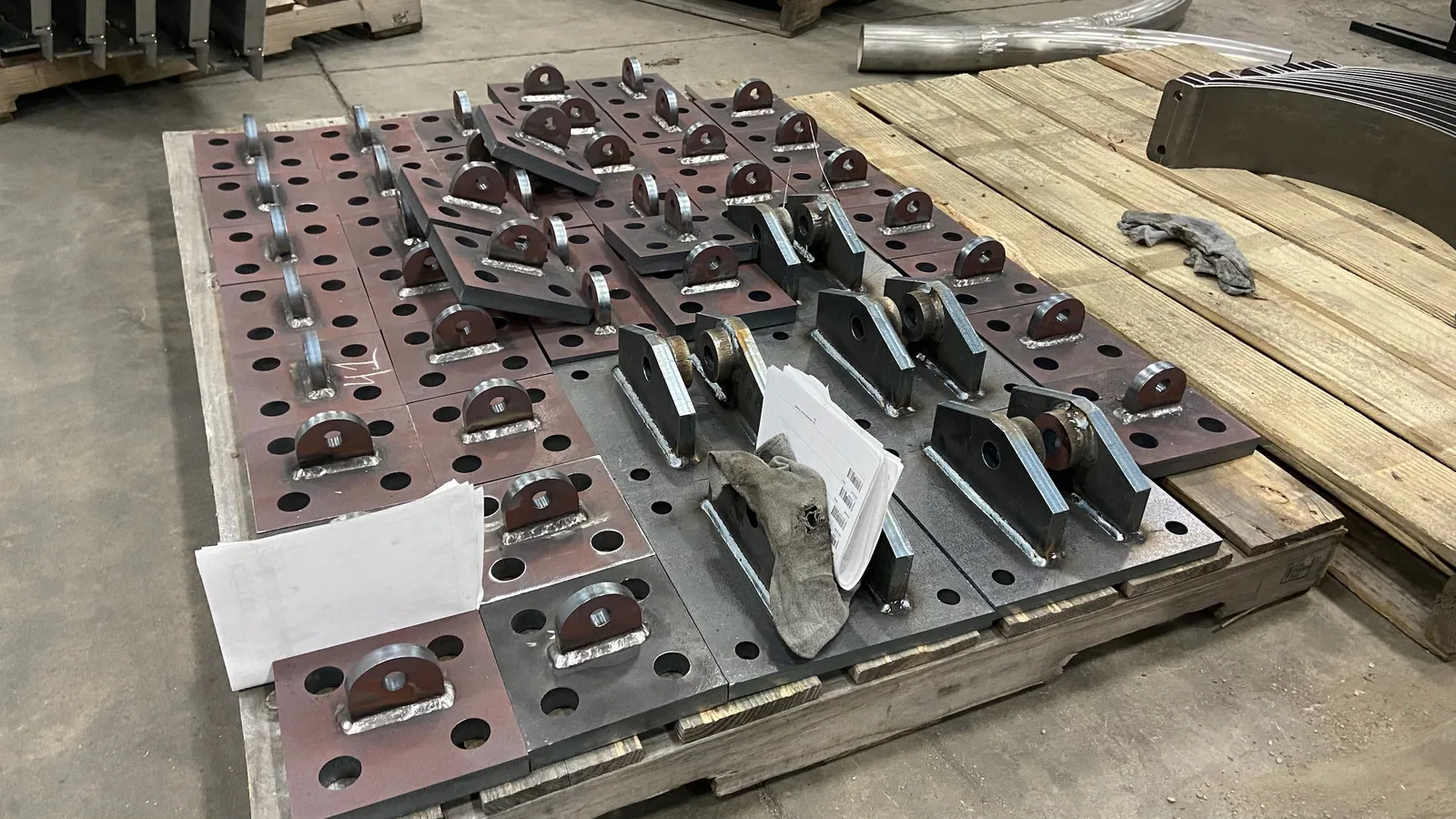

Welded mounting brackets

Repeated plate assemblies combine mounting-hole patterns with welded tabs and reinforced brackets.

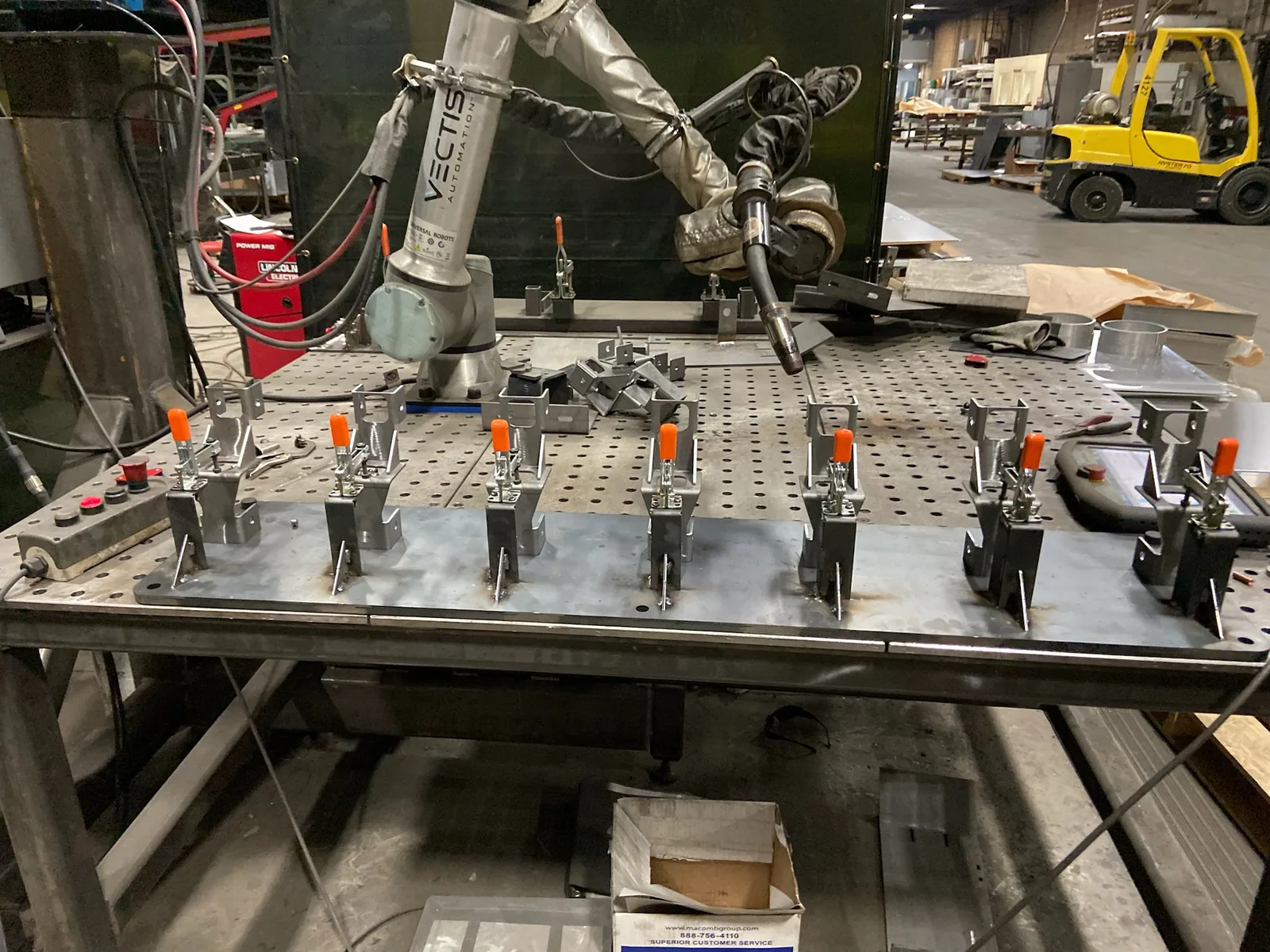

Robotic welding setup for repeat brackets

A welding robot is positioned above a fixture holding a row of matching brackets.

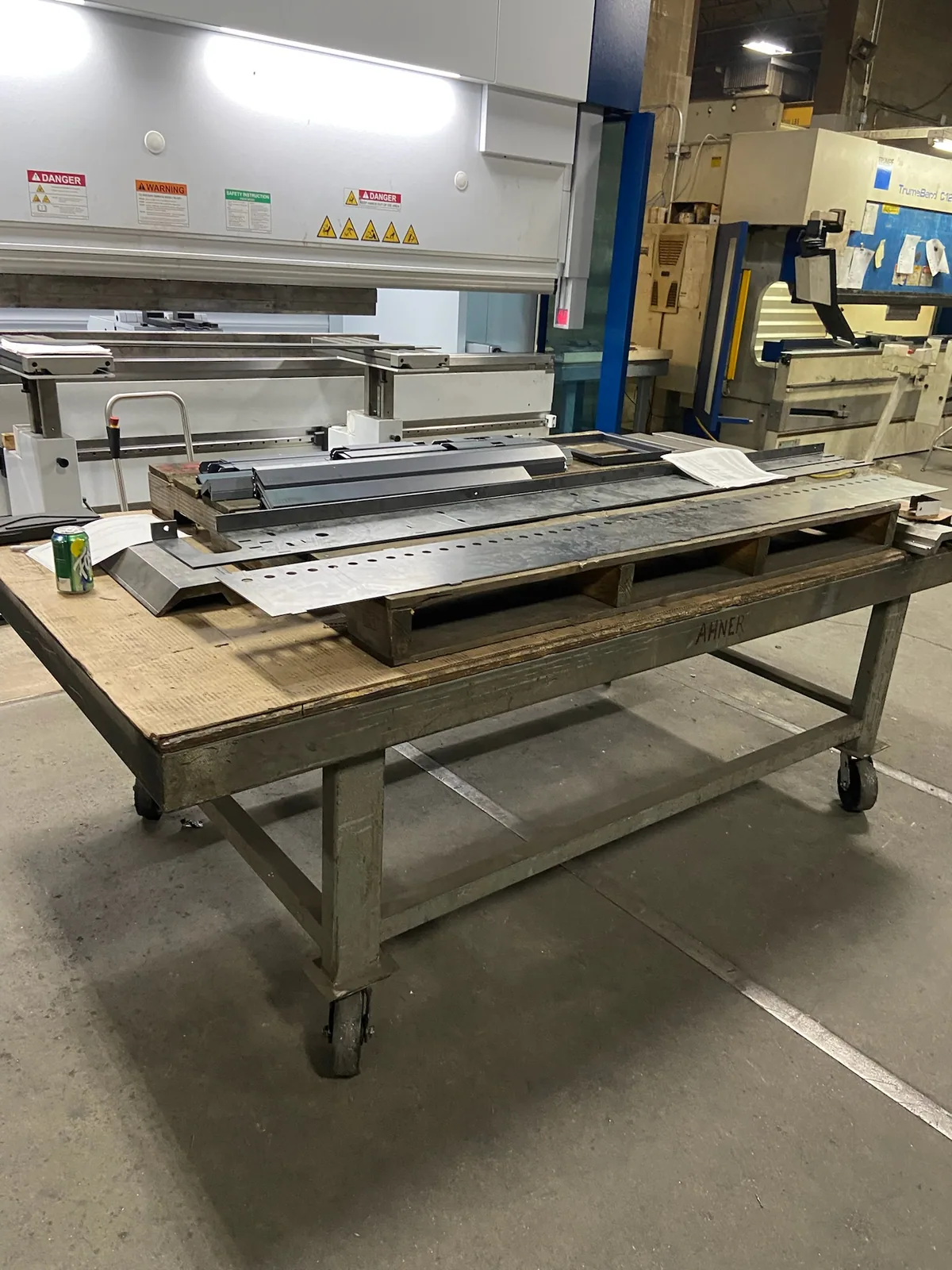

Long formed sheet-metal sections

Long formed sections are laid out on a worktable beside the press brake.

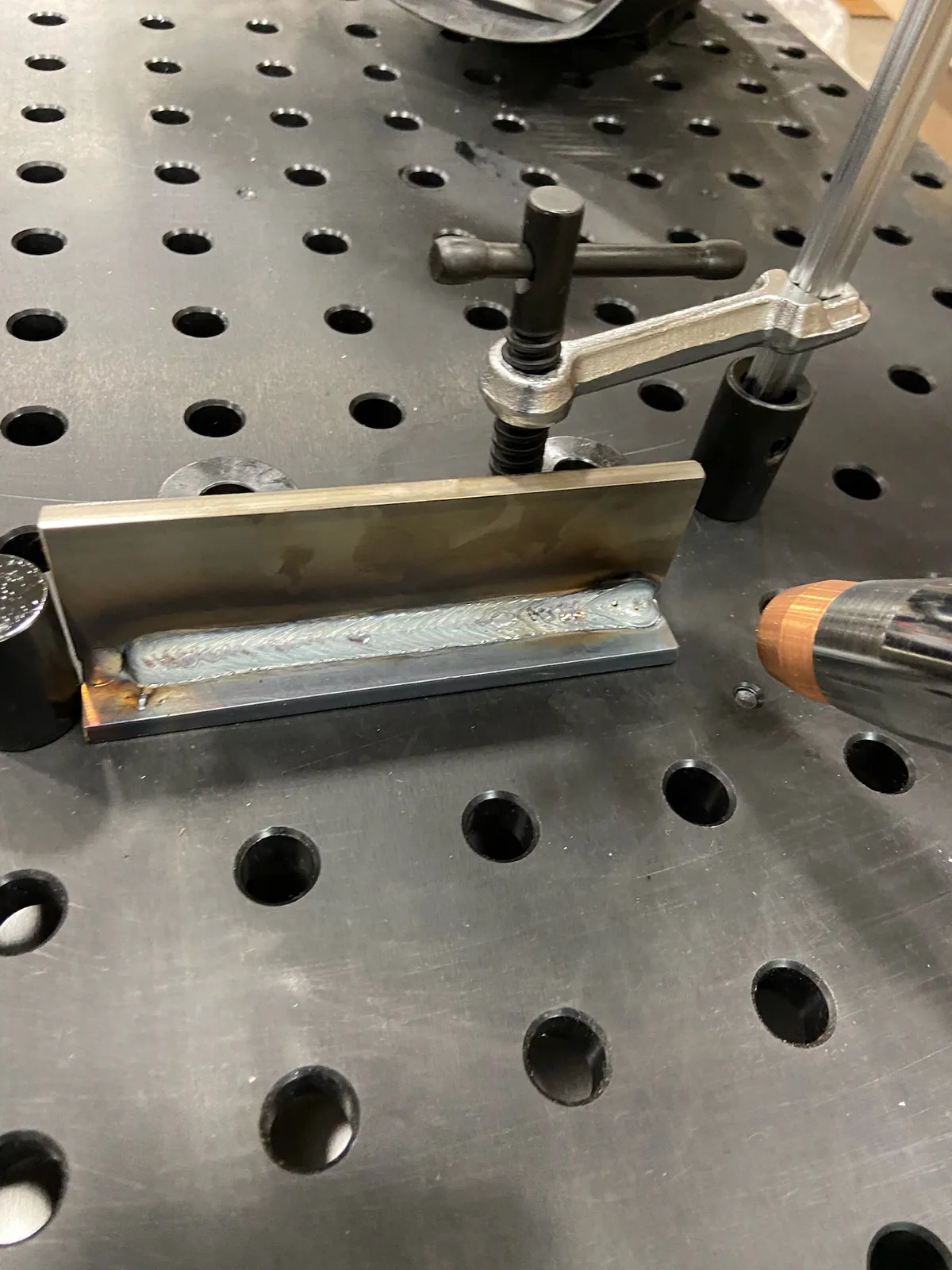

Clamped bracket weld detail

A close view shows a welded bracket clamped against a fixture on the welding table.

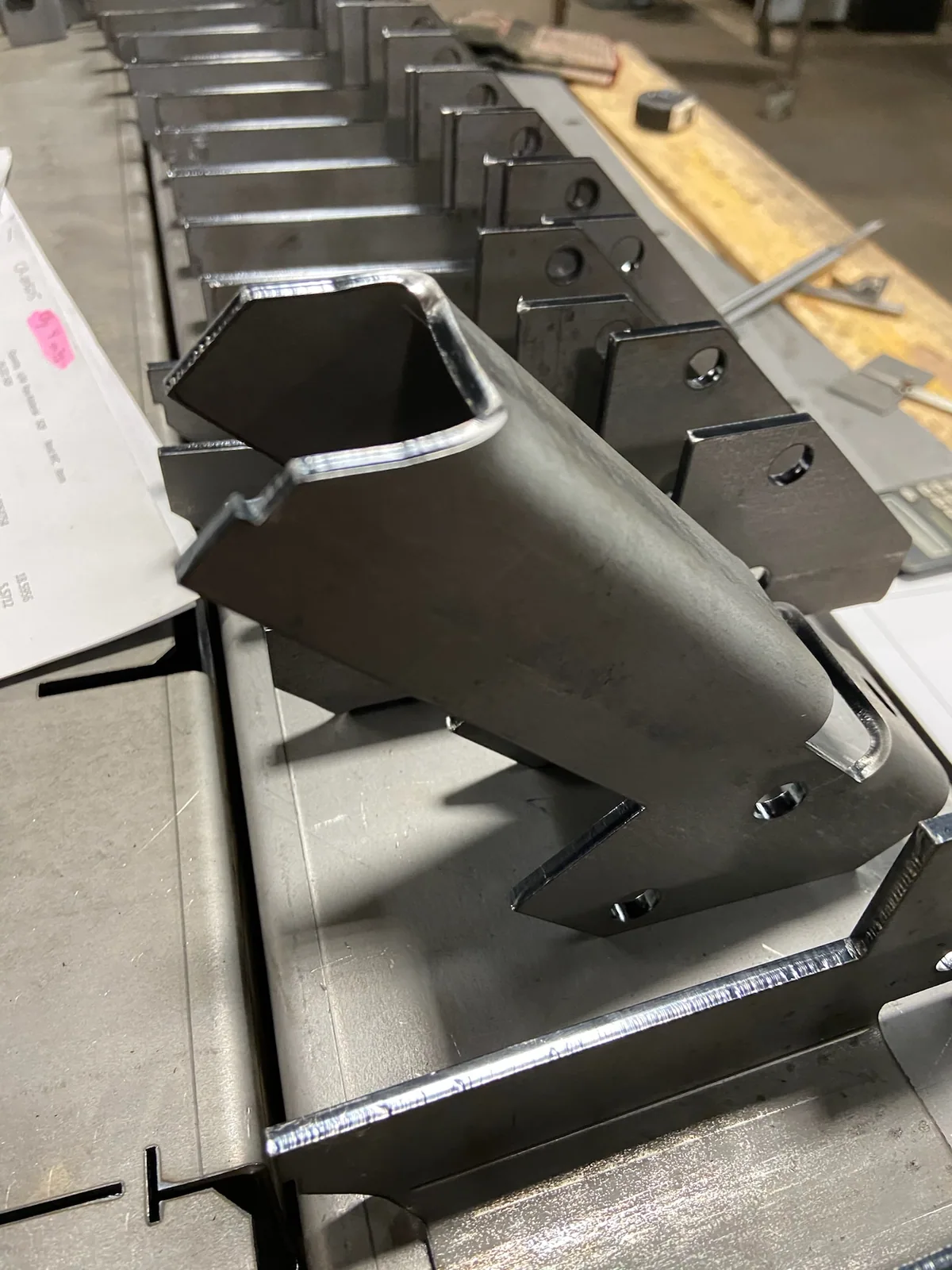

Formed sections with tabs and cutouts

Formed metal sections combine angled profiles, tabs, and patterned cutouts.

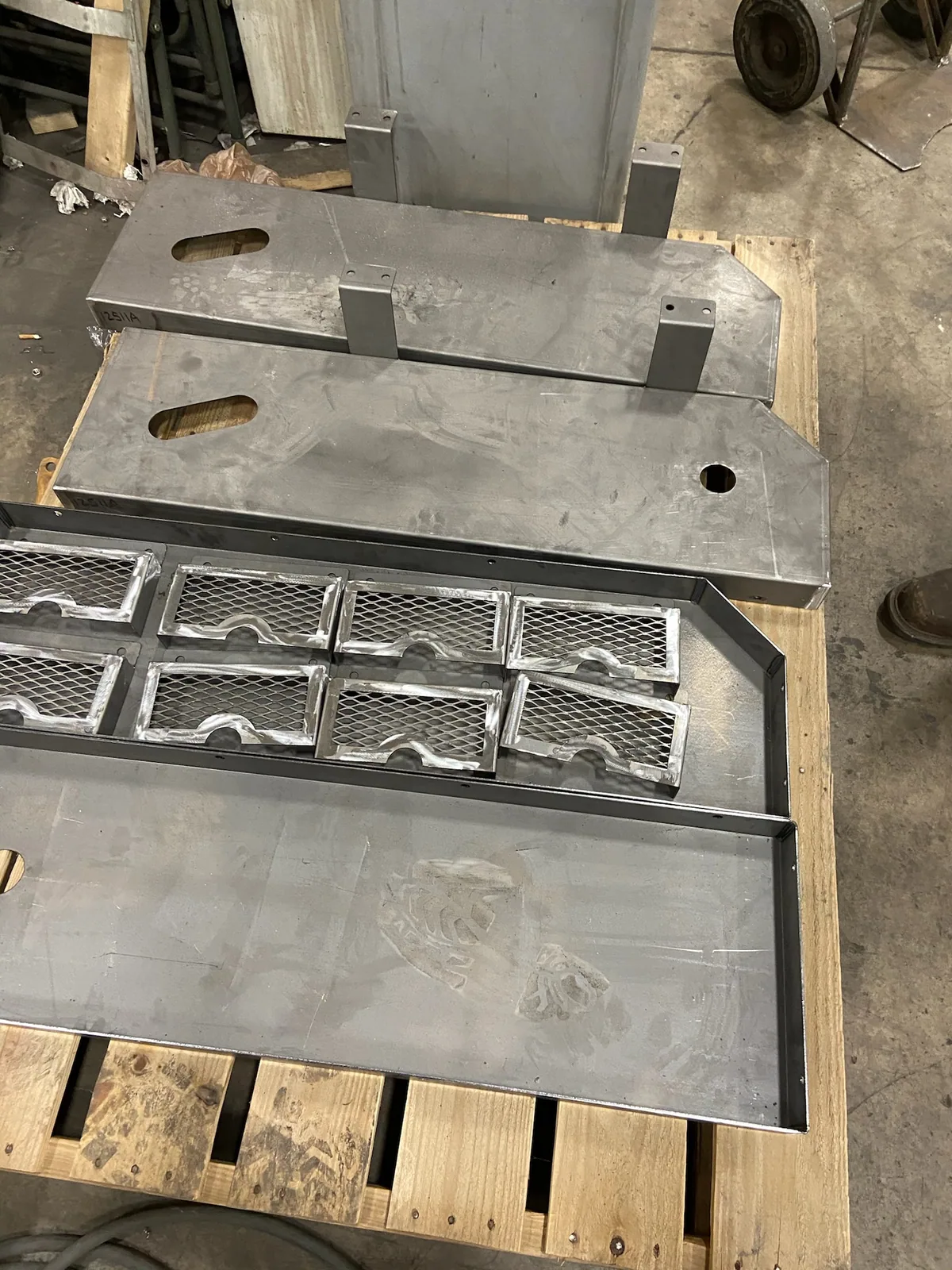

Formed panels and mesh inserts

Formed panels with cutouts and mounting tabs are grouped with small framed mesh inserts.

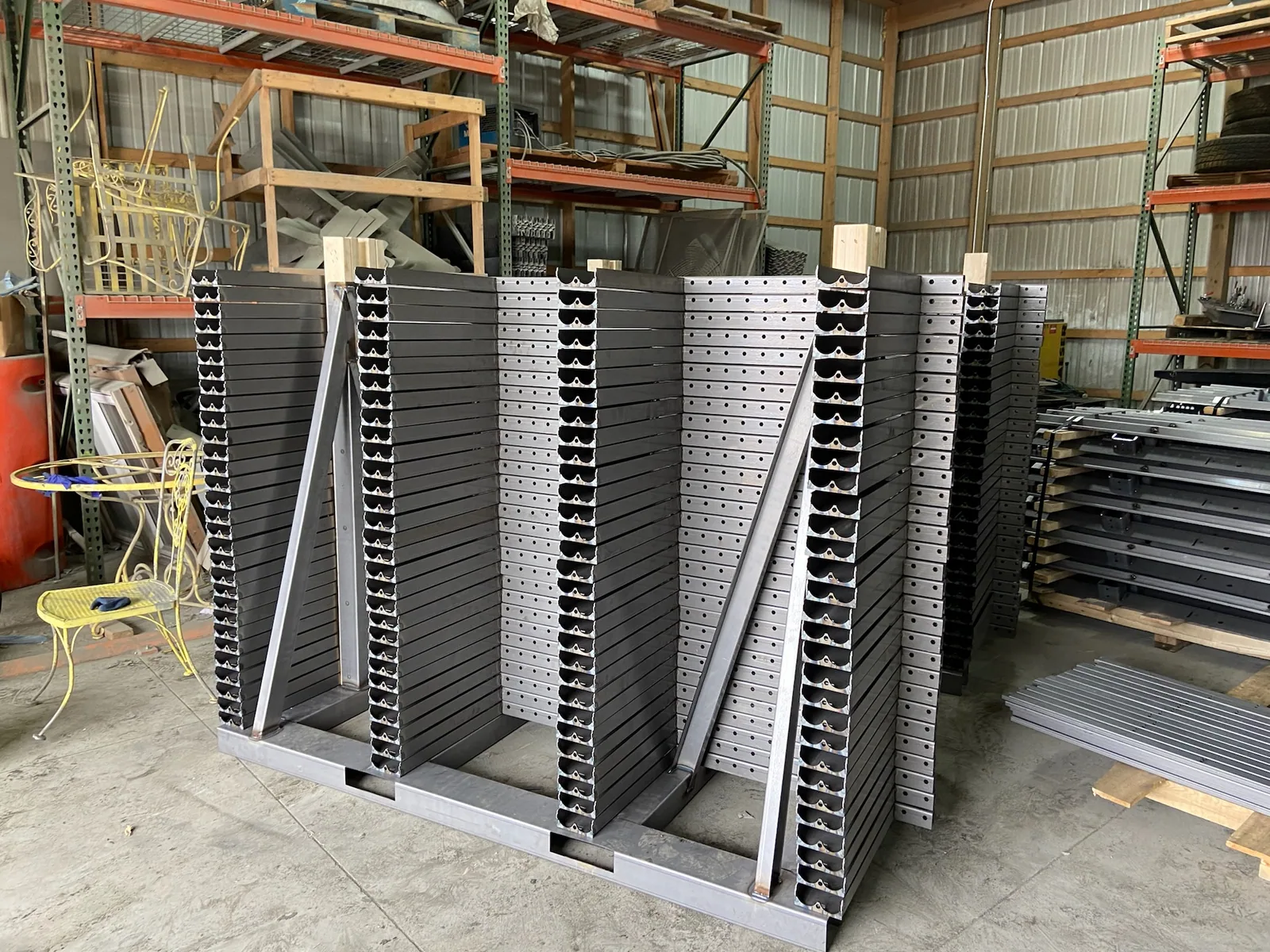

Repeated perforated panel sections

Tall stacks of formed perforated panels show matching profiles and hole patterns.

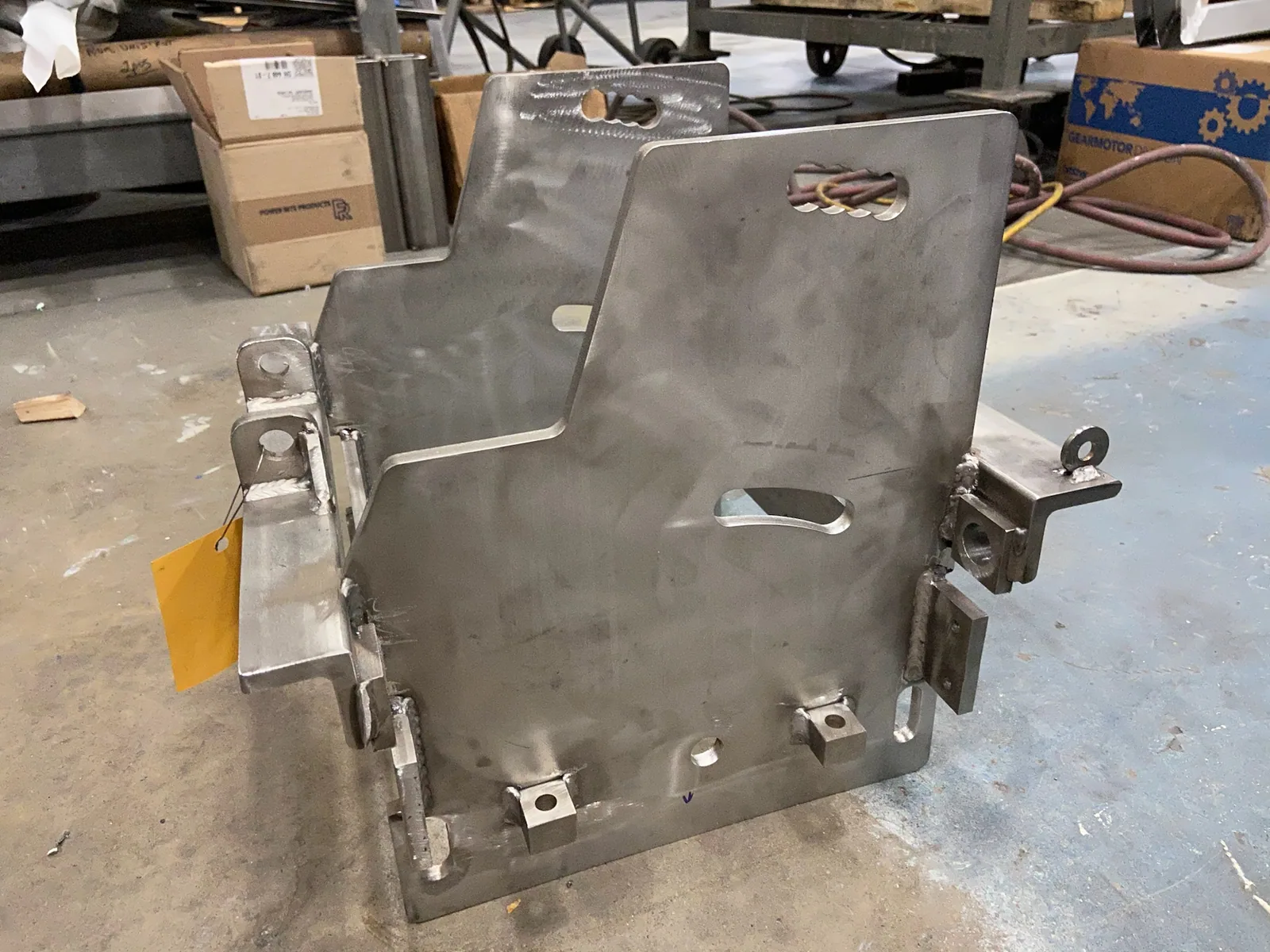

Welded side-plate assembly

A side-plate assembly combines shaped openings with welded mounting blocks and tabs.

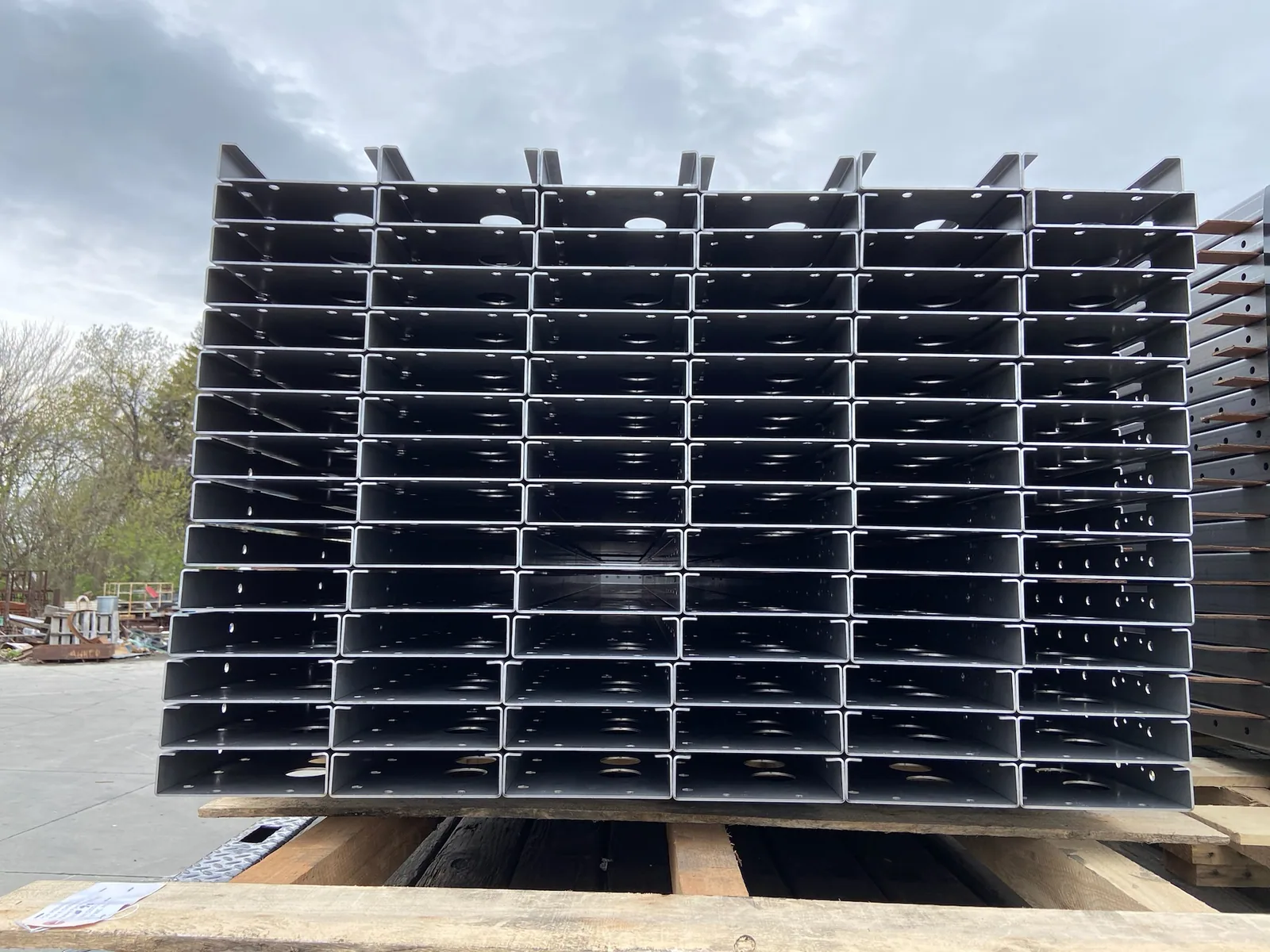

Stacked formed production sections

Repeated formed sections are stacked with their end profiles and mounting features visible.

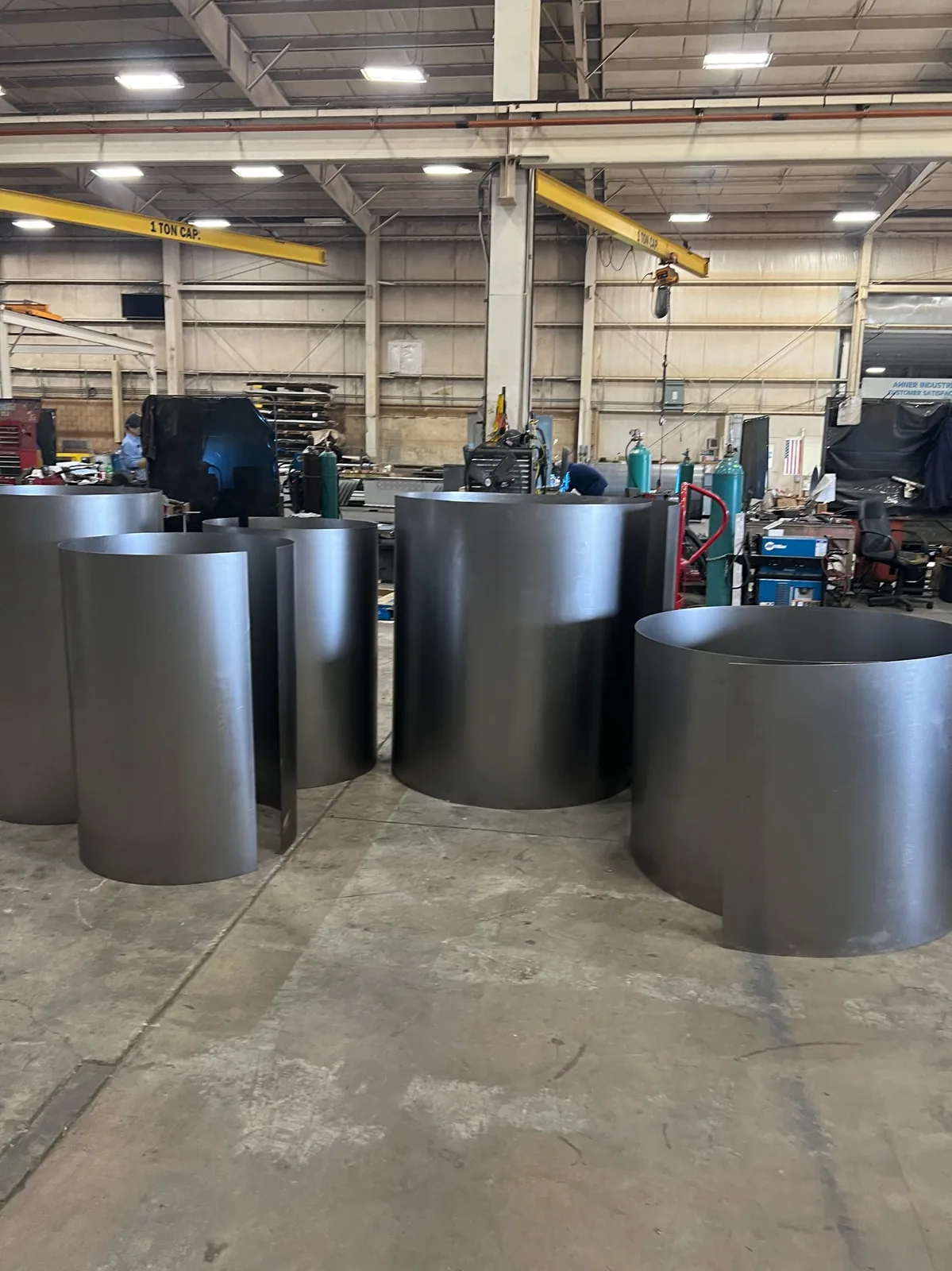

Rolled cylindrical sections

Rolled cylindrical sections of different heights are grouped together on the shop floor.

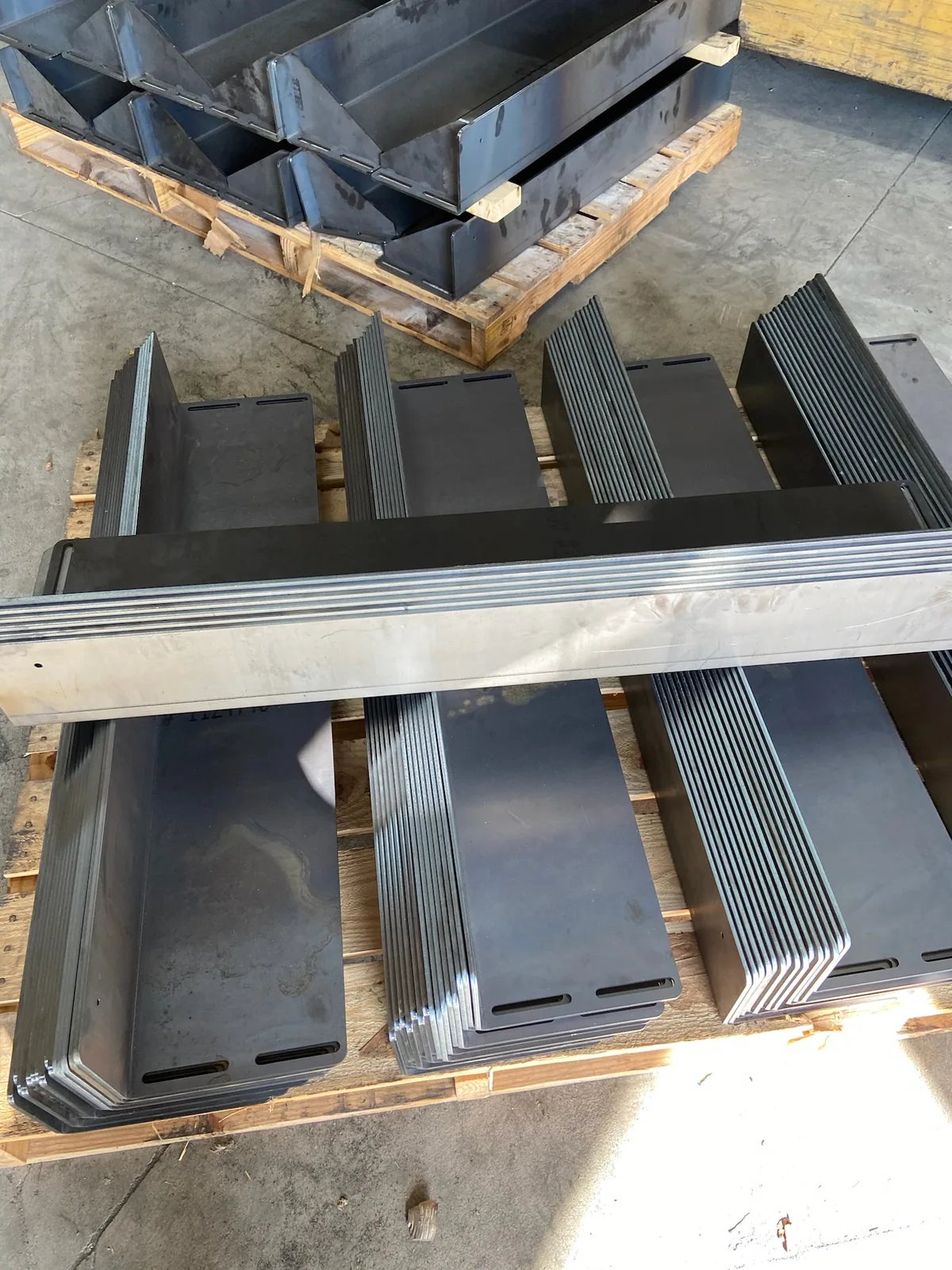

Formed channels with slotted openings

Matching formed channel parts are stacked on pallets with slotted end openings visible.

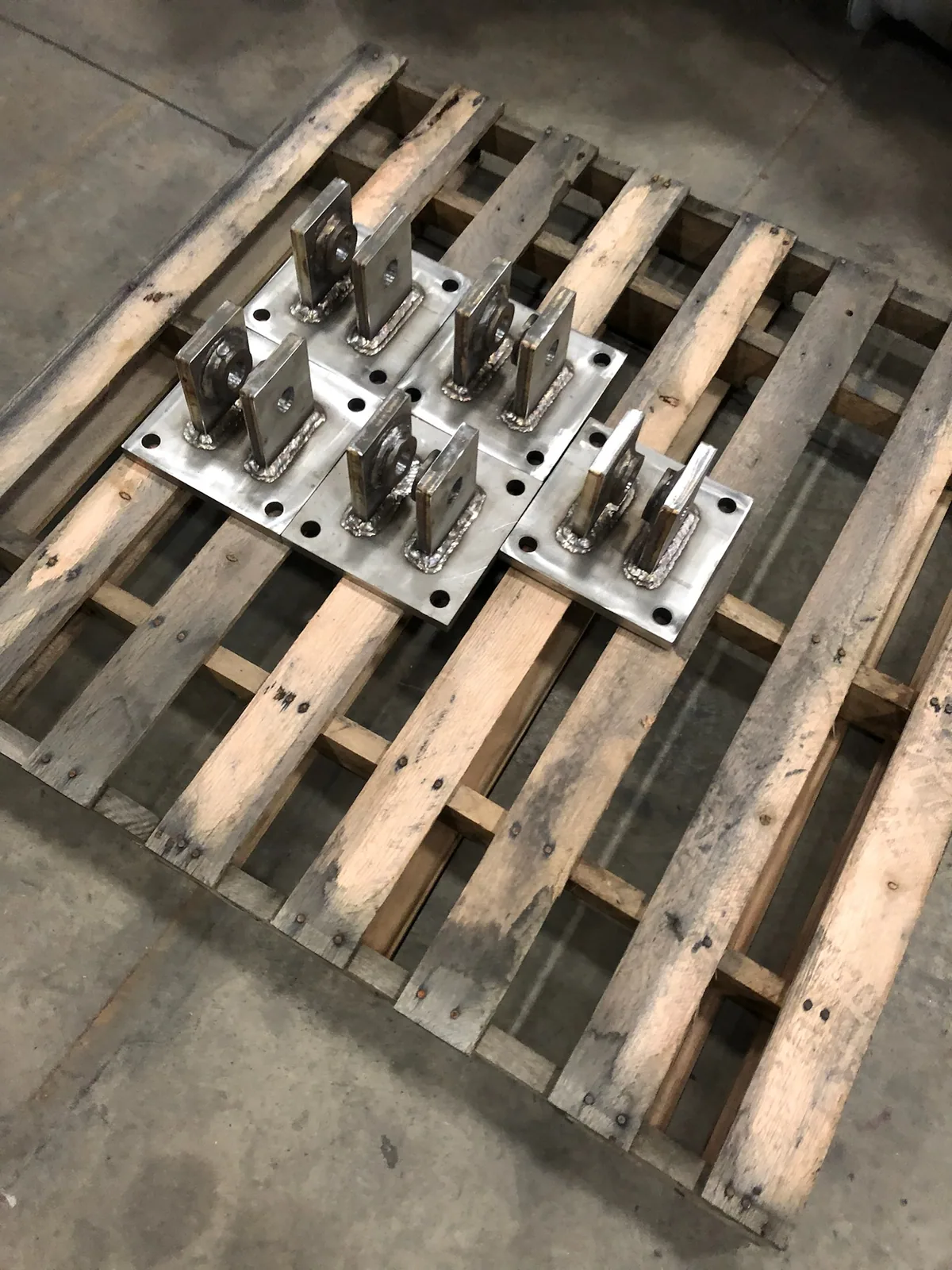

Gusseted mounting brackets

Repeated mounting brackets combine base plates, upright plates, and triangular gussets.

Tube sections and mounting plates

Straight tube sections and cut mounting plates are staged together in organized batches.

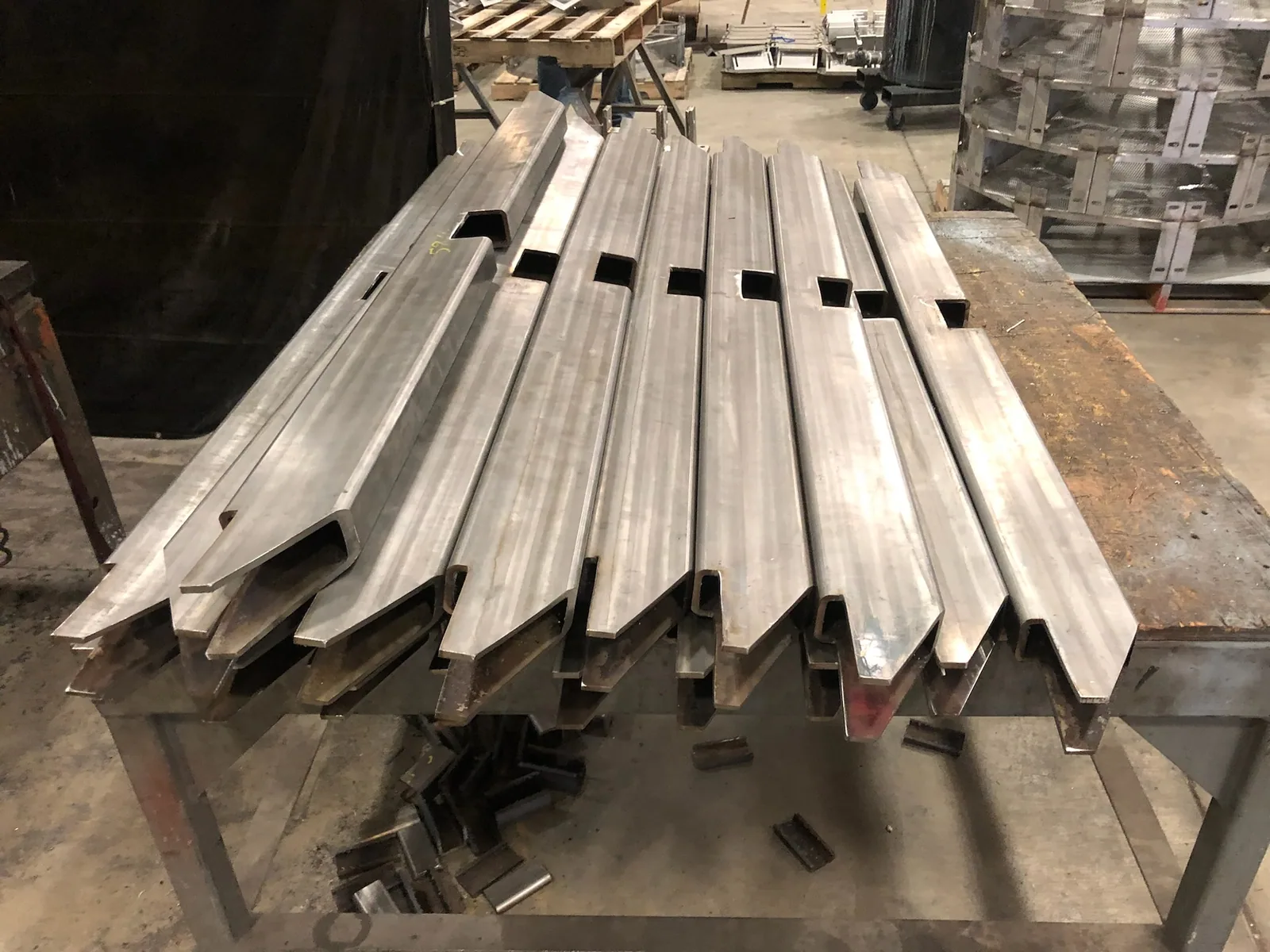

Mitered tube components

A stack of tube components shows angled ends and rectangular openings along the lengths.

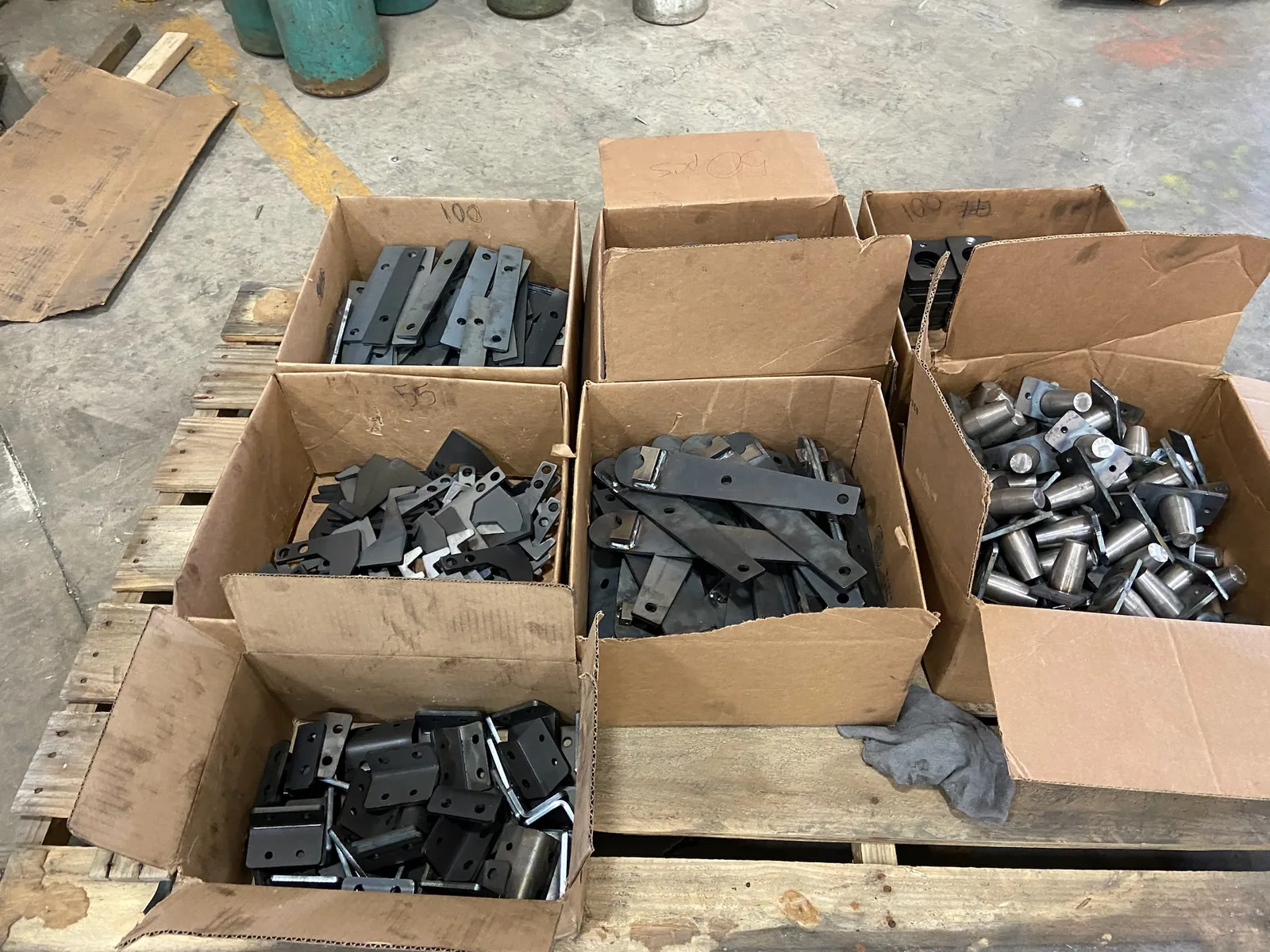

Batched brackets and small weldments

Boxes of brackets, cut plates, and small weldments show a range of repeated production parts.

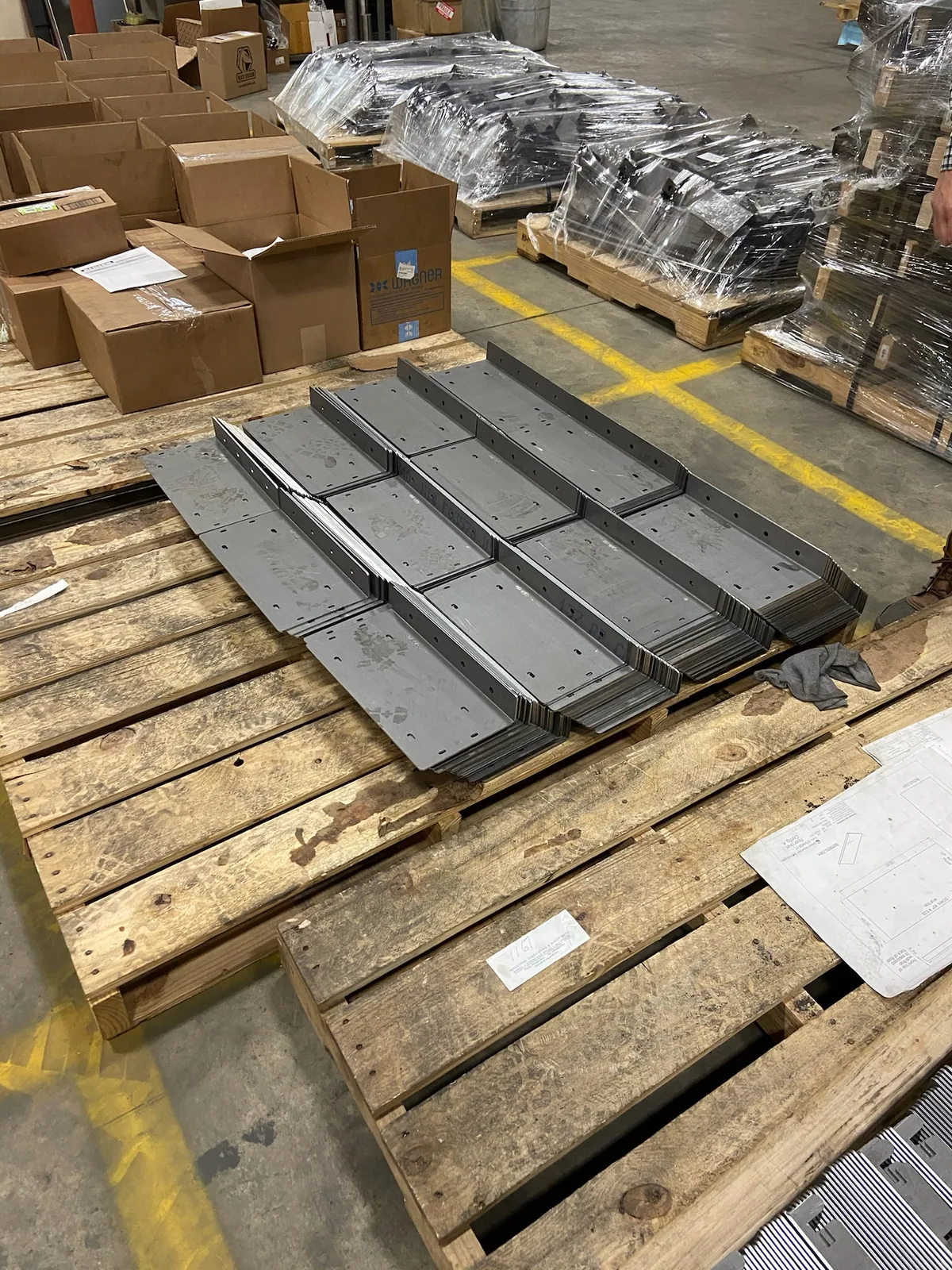

Stacked rectangular plate parts

Rectangular plate parts are arranged in a repeat batch on a pallet beside the fabrication area.

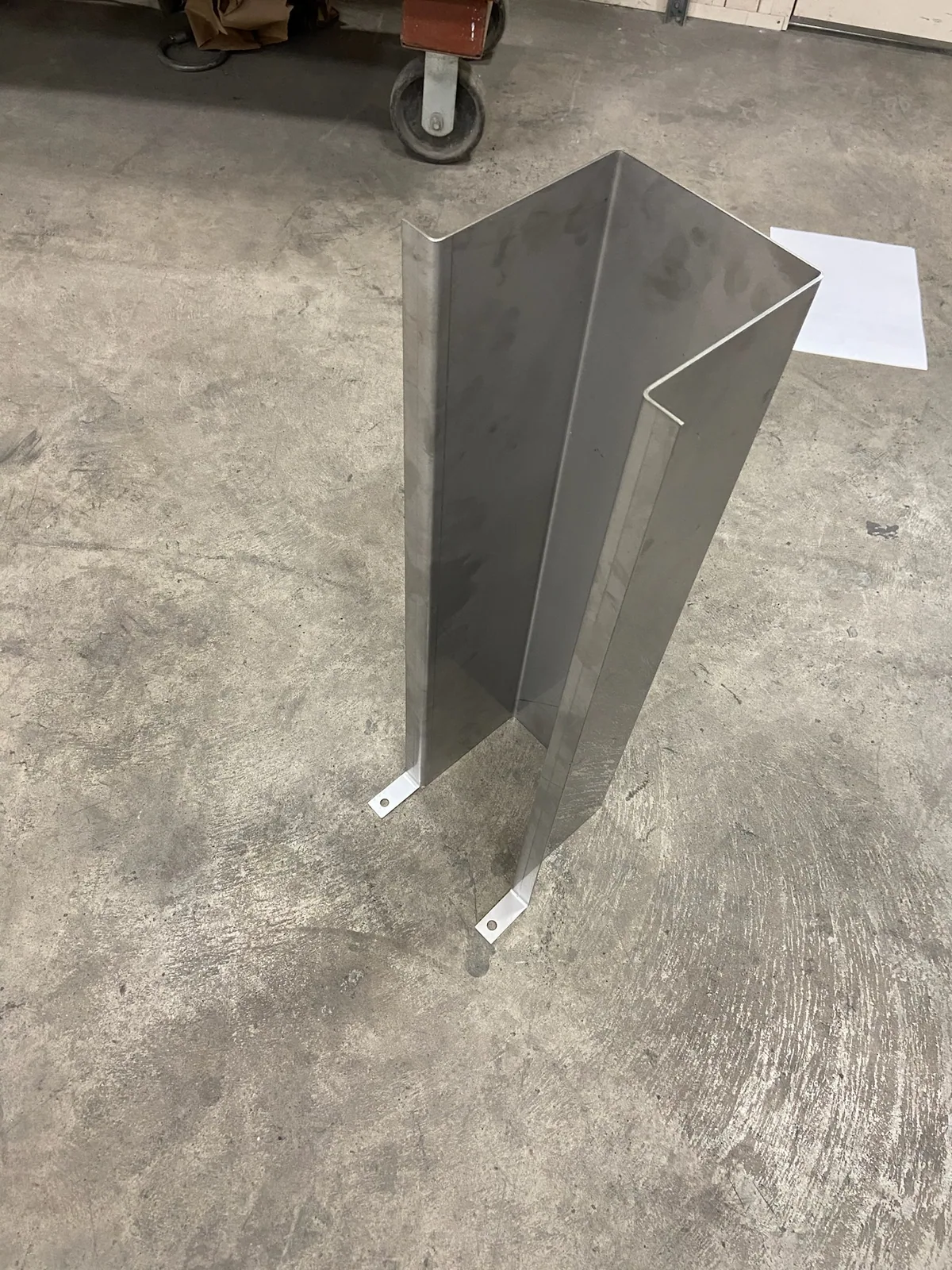

Angular formed sheet components

Two sheet components show deep angled bends and extended mounting edges.

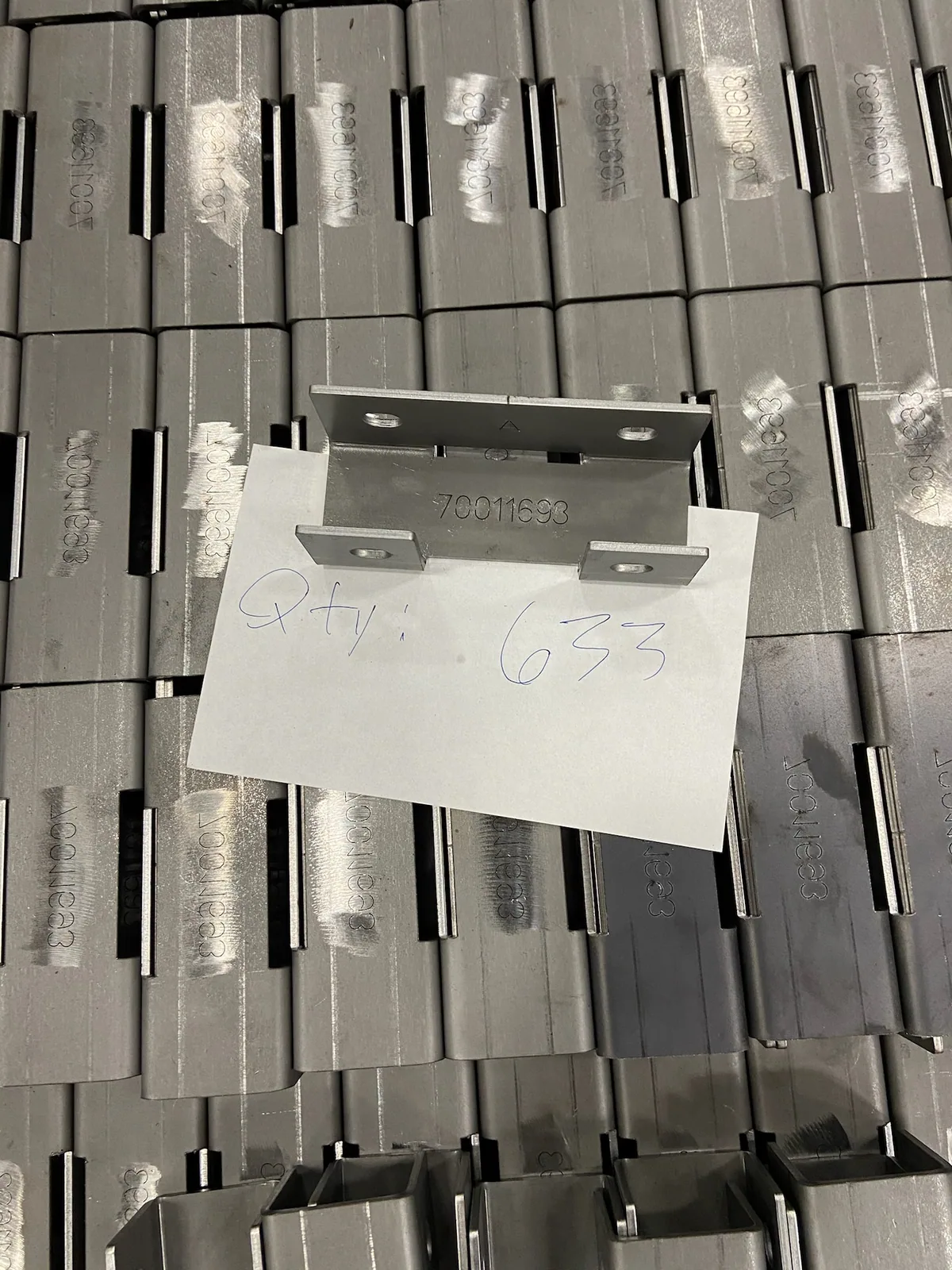

Formed parts with mounting tabs

Repeated formed components combine flat faces with raised tabs and slotted features.

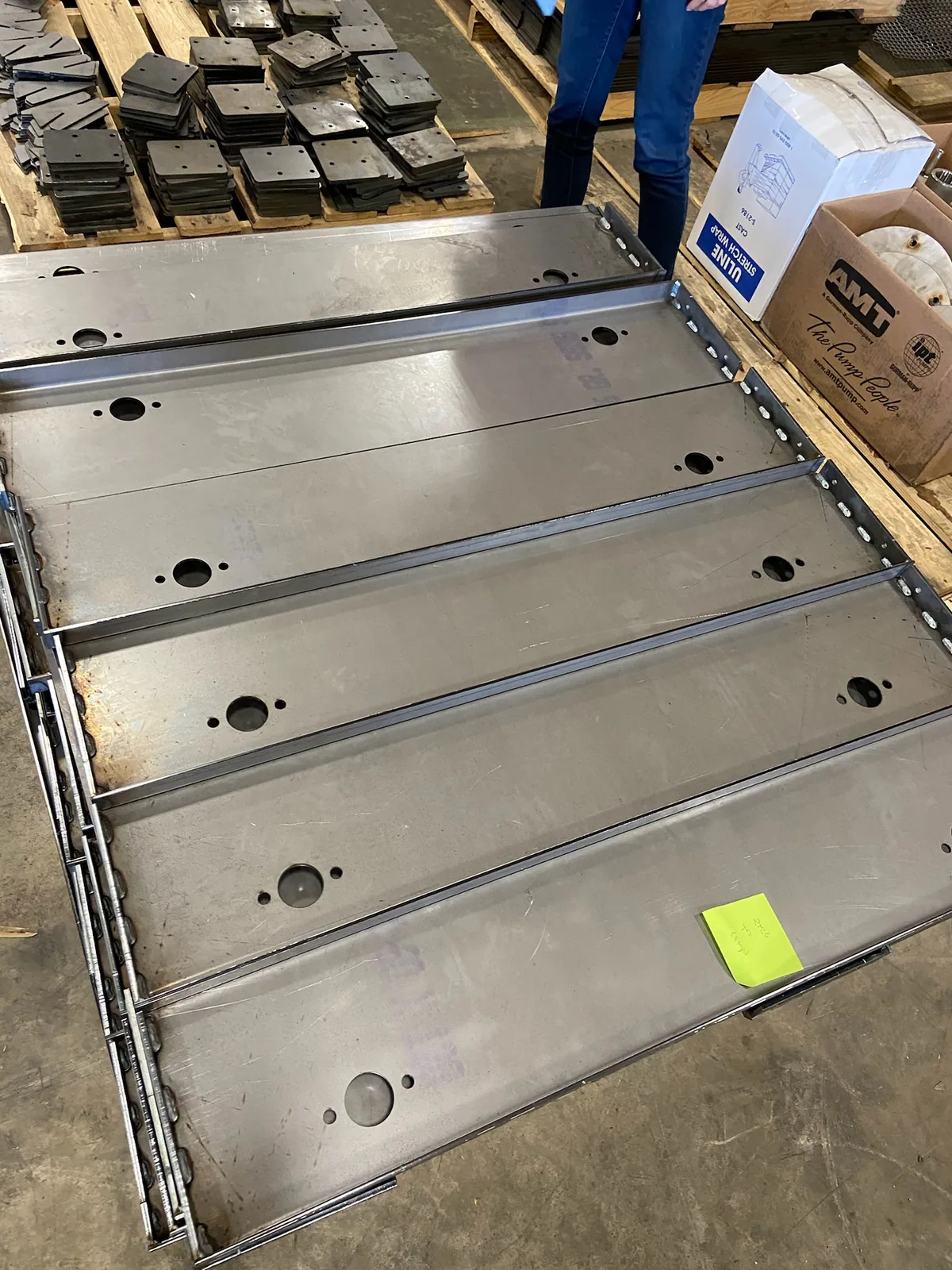

Long panels with formed edges

Long sheet panels combine formed edge profiles with circular and rectangular cutouts.

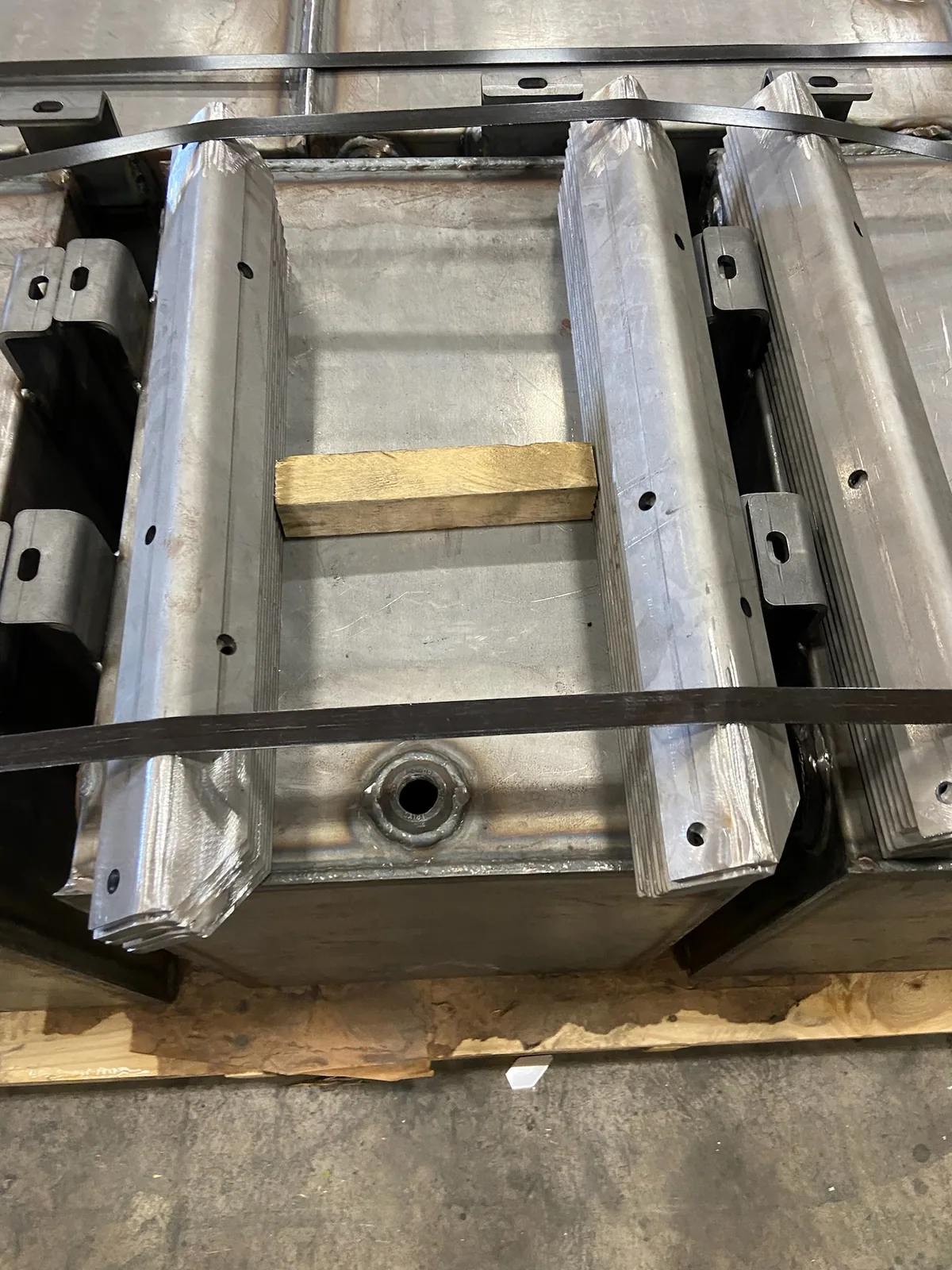

Stacked panel assemblies with attachment tabs

Stacked panel assemblies combine formed edges, slotted attachment tabs, and a welded circular connection.

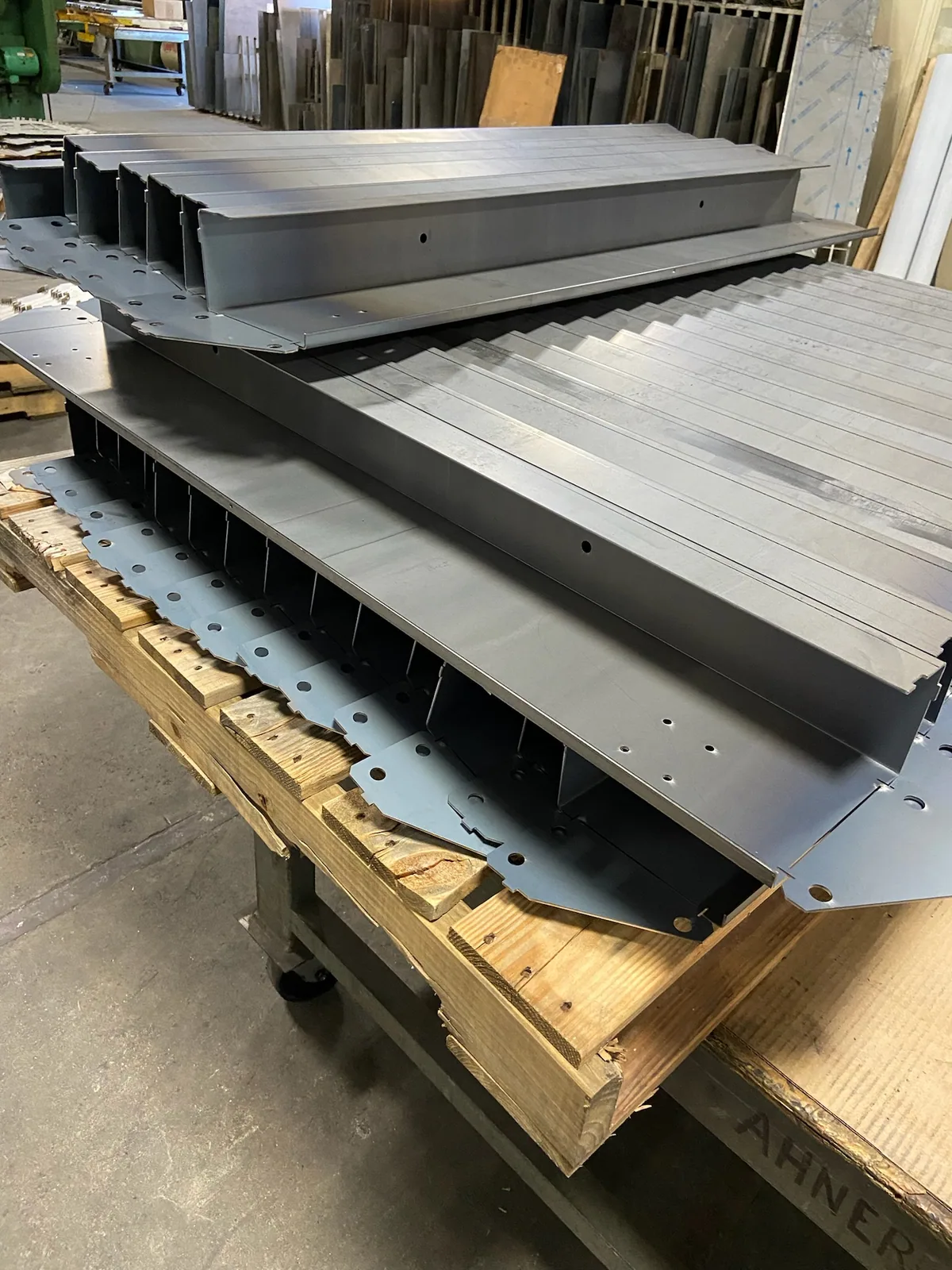

Wide formed panel stack

Wide formed panels are stacked with their raised edges and repeated profiles visible.

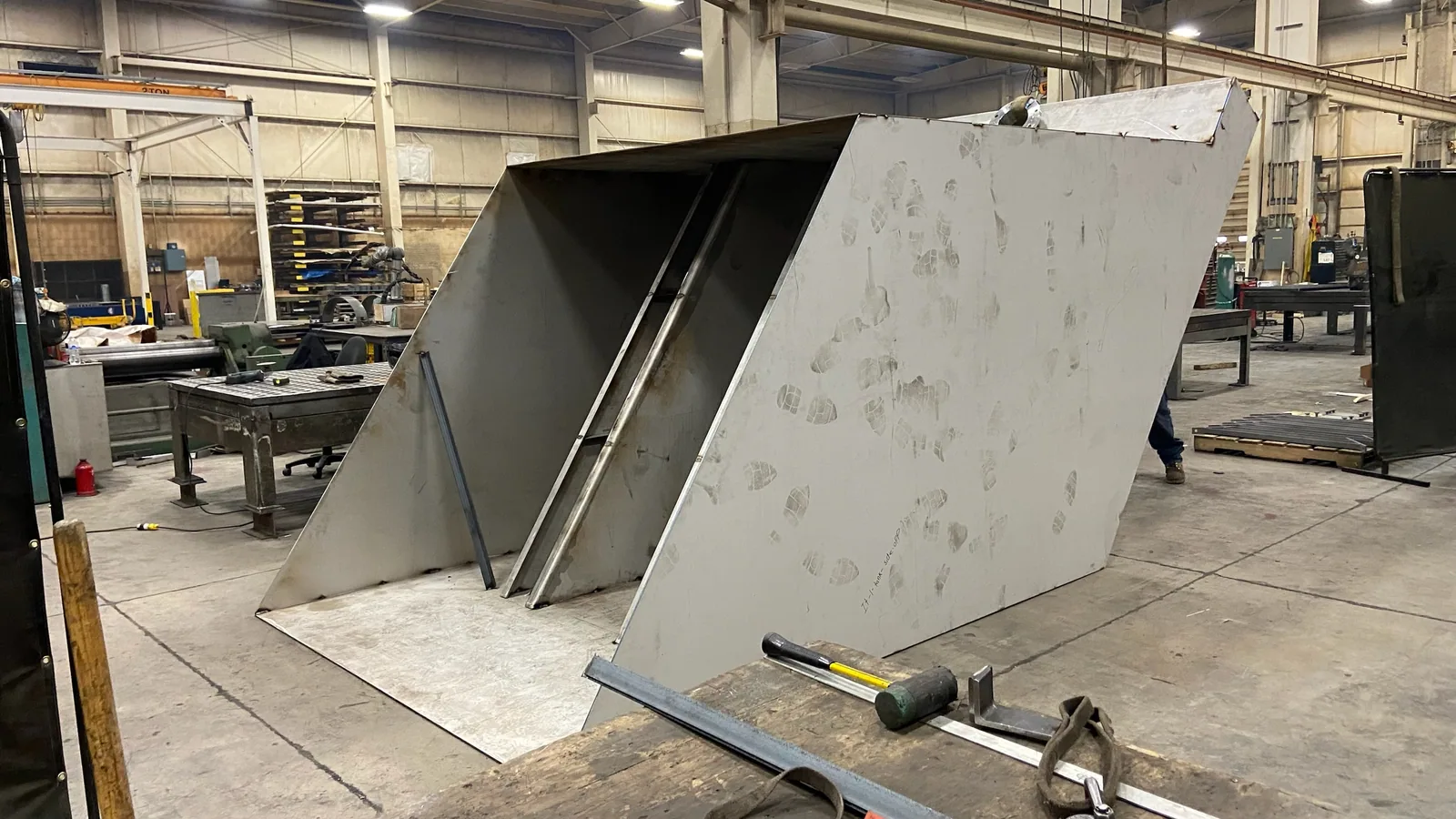

Deep formed housing panels

Deep side walls and angled internal surfaces show how formed sheet sections build the shape of this housing.

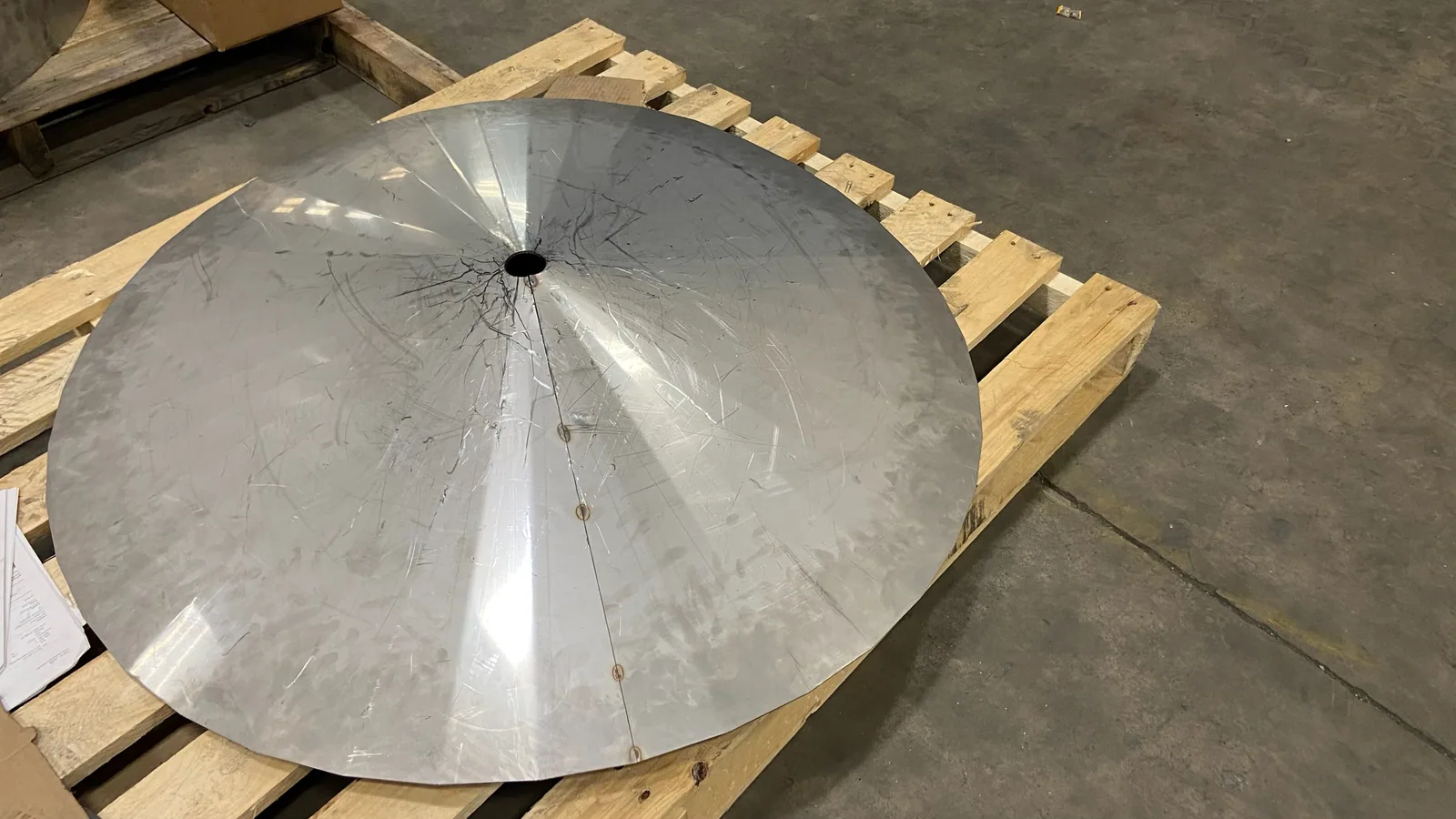

Formed circular cone

A shallow circular cone is formed from joined sheet sections around a small center opening.

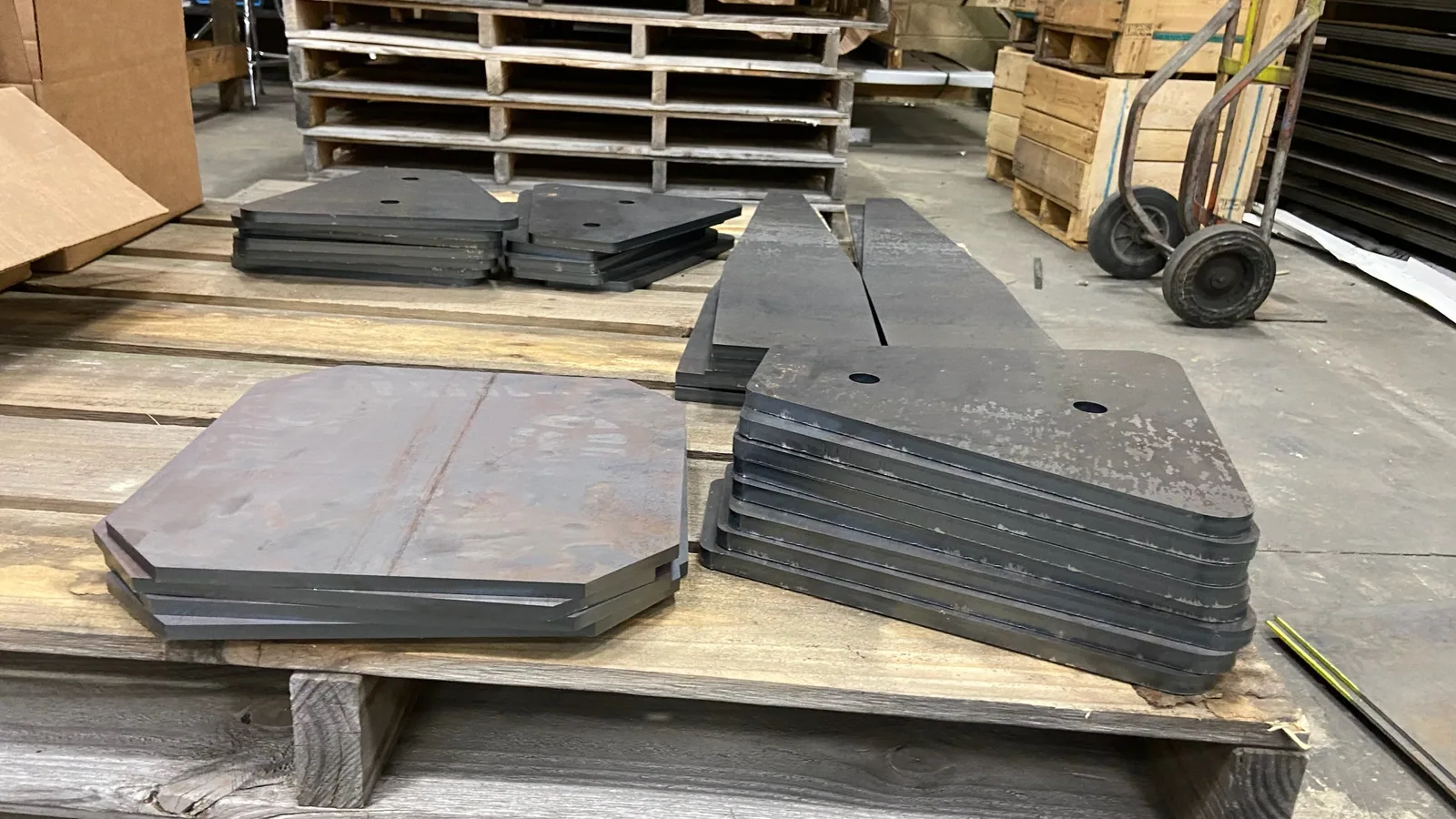

Shaped plate blanks in batches

Stacks of plate blanks show several repeated profiles and large cutouts.

Equipment & finishing

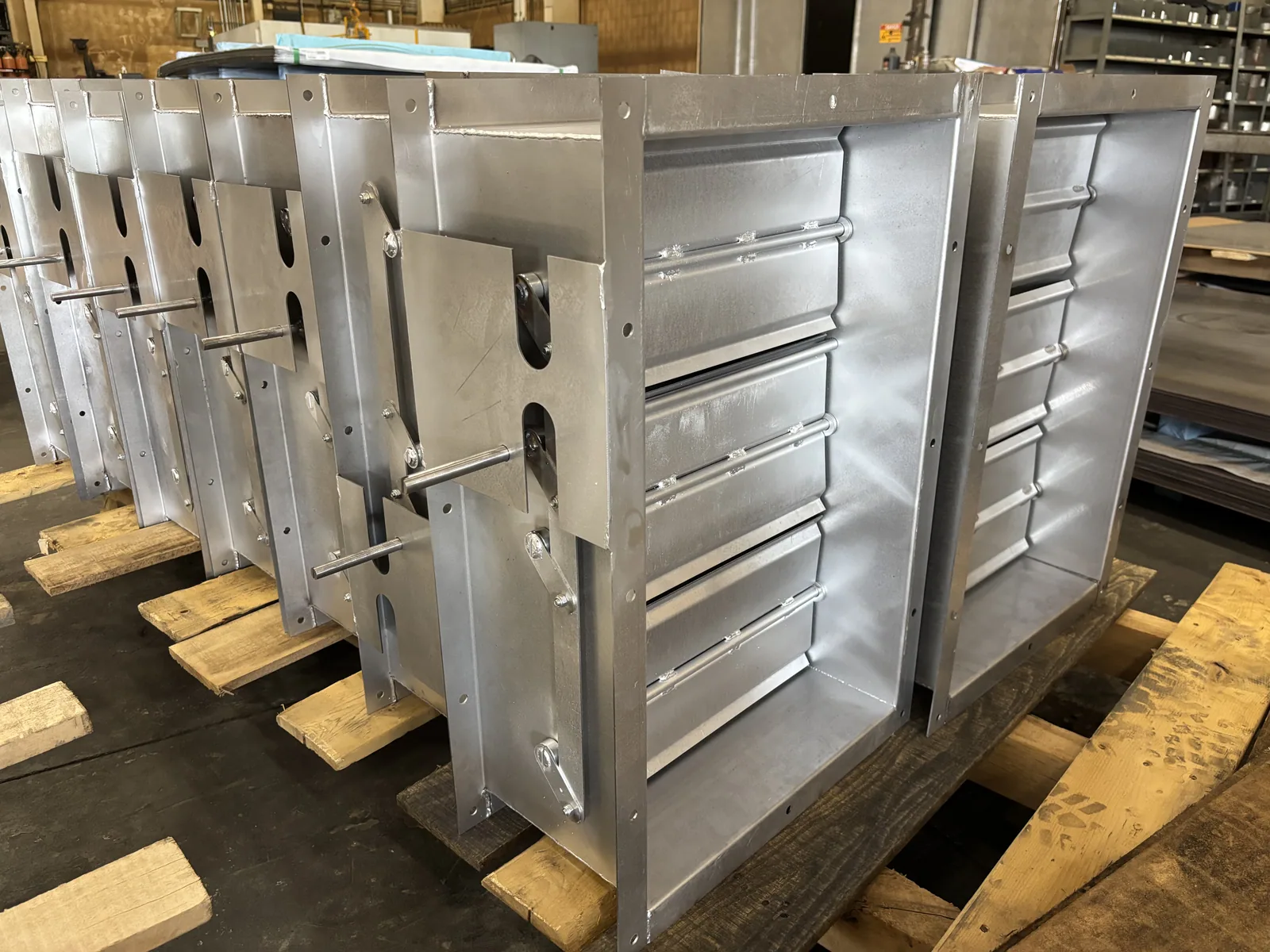

Louvered panel assemblies

Framed panel assemblies combine horizontal blades with shafts and side linkages.

Enclosed industrial assembly ready for delivery

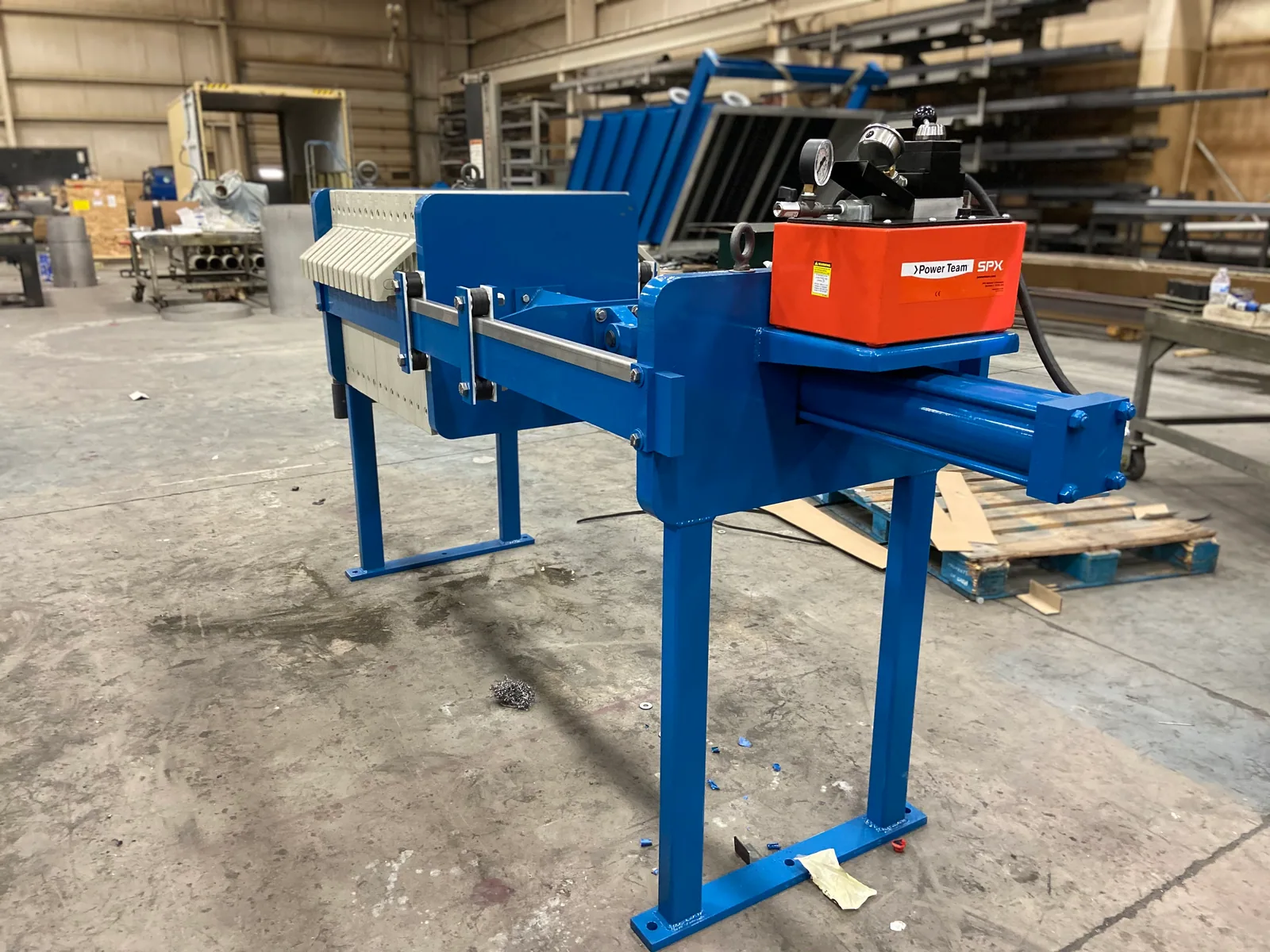

Assembled industrial equipment

A painted equipment frame is shown assembled with plates, guide rods, and hydraulic components.

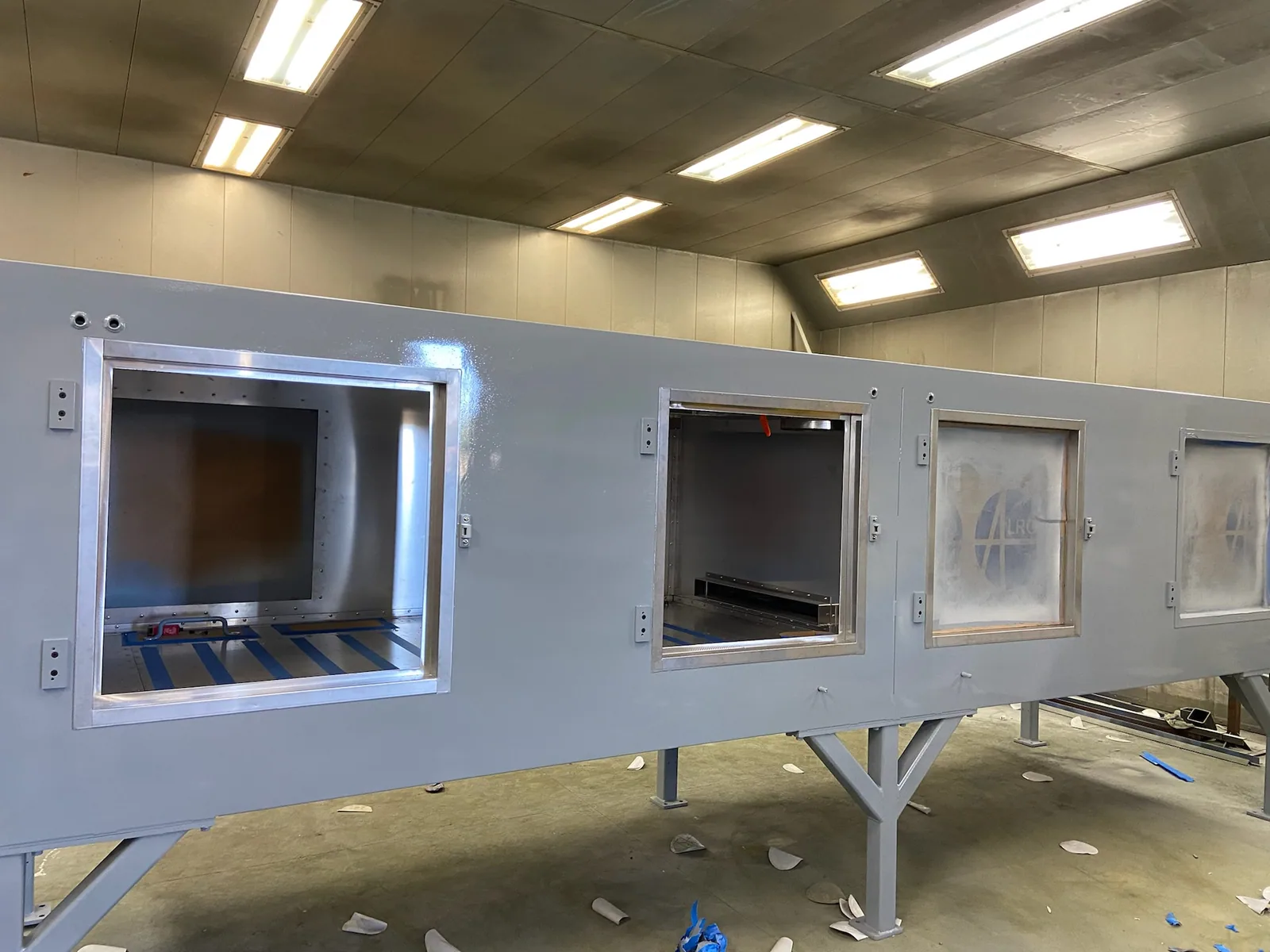

Equipment enclosure and finishing

A long equipment enclosure is shown in the finishing area with framed access openings and support legs.

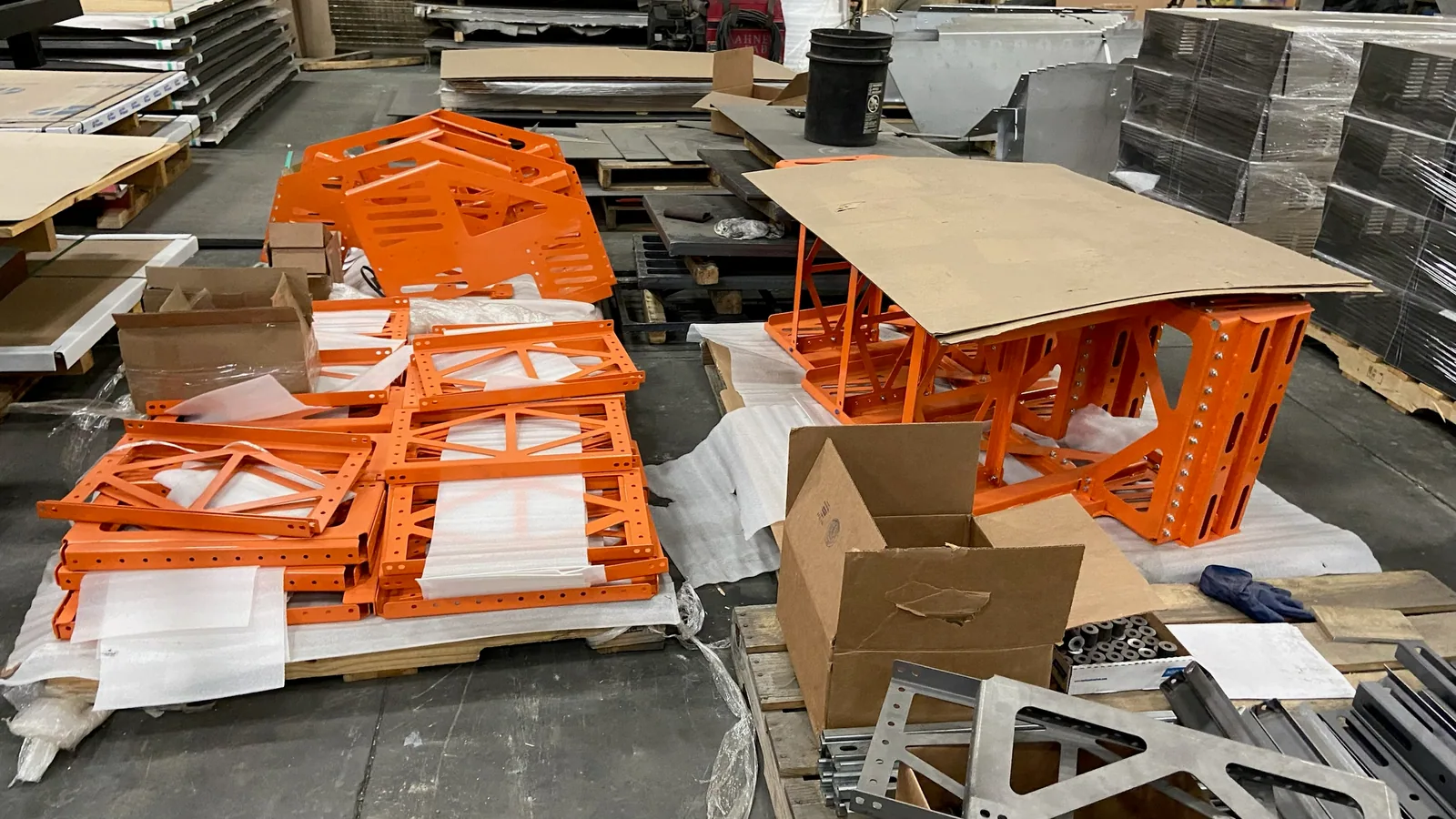

Finished frame components

Orange frame components and assembled sections are staged with protective packing between parts.

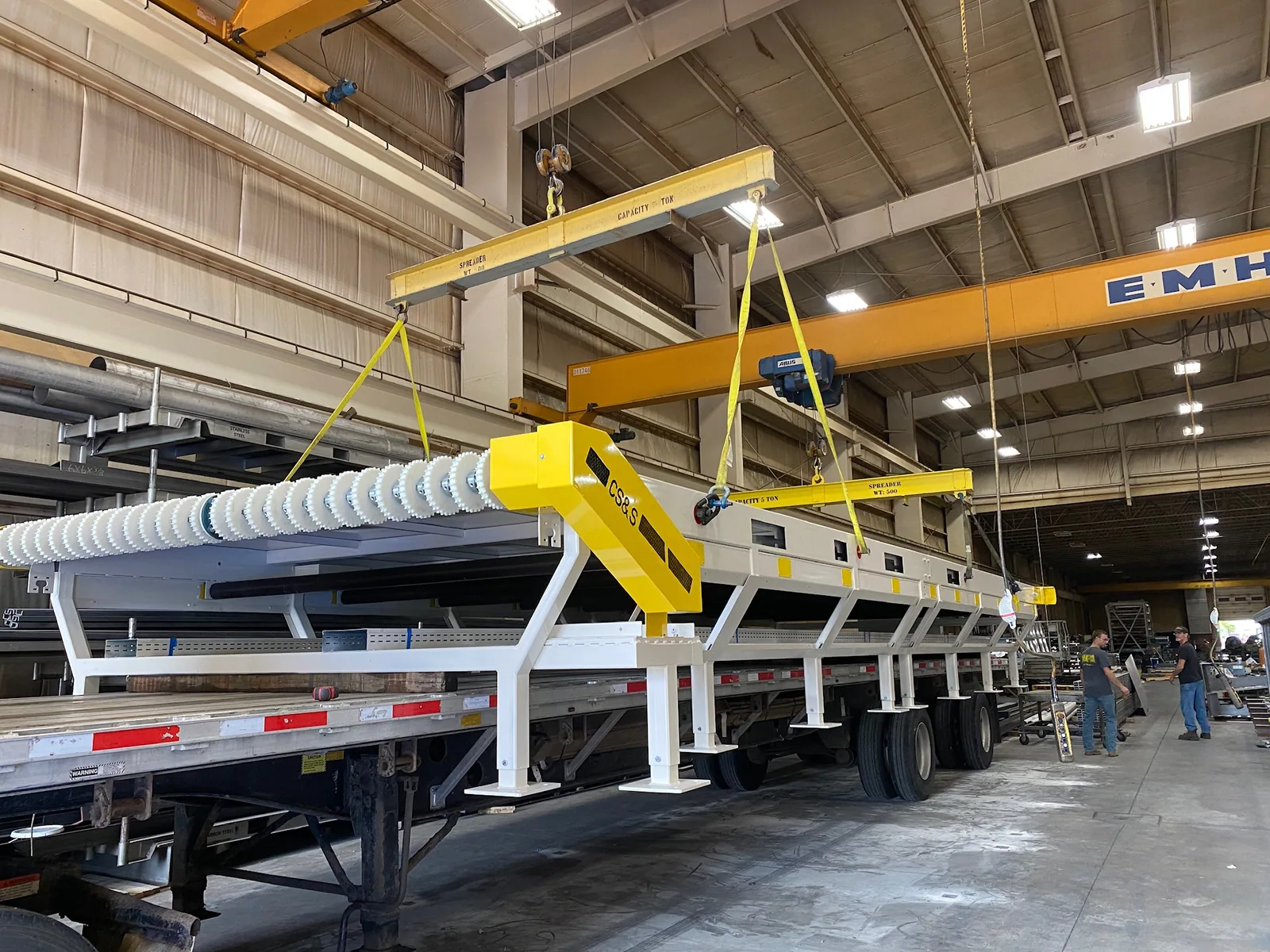

Large equipment assembly for transport

A large equipment assembly is positioned on a trailer beneath the shop crane.

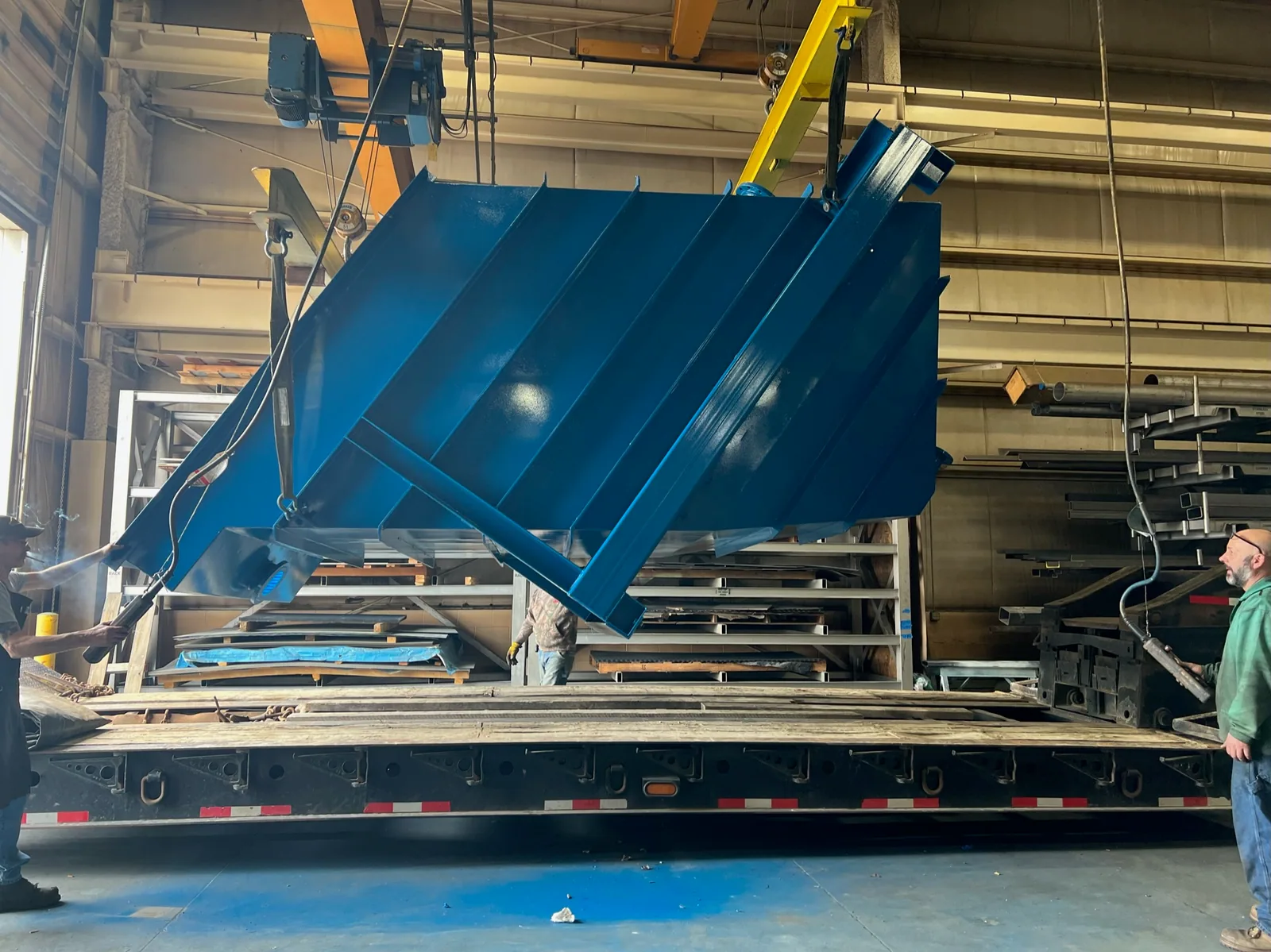

Handling a large painted weldment

A large blue weldment is suspended above a trailer during shop handling.

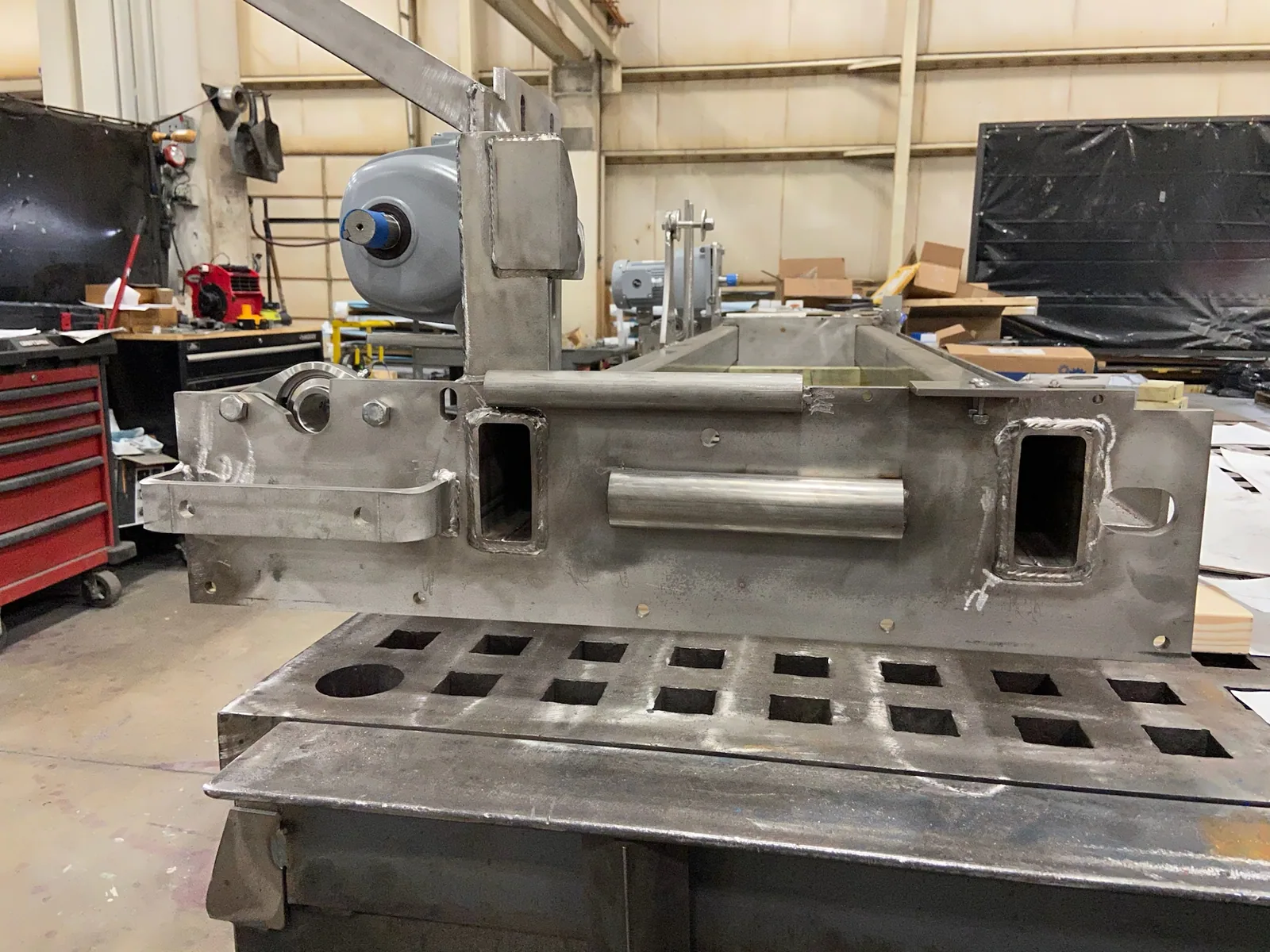

Equipment frame and drive detail

An equipment frame combines welded platework, mounting features, and attached drive components.

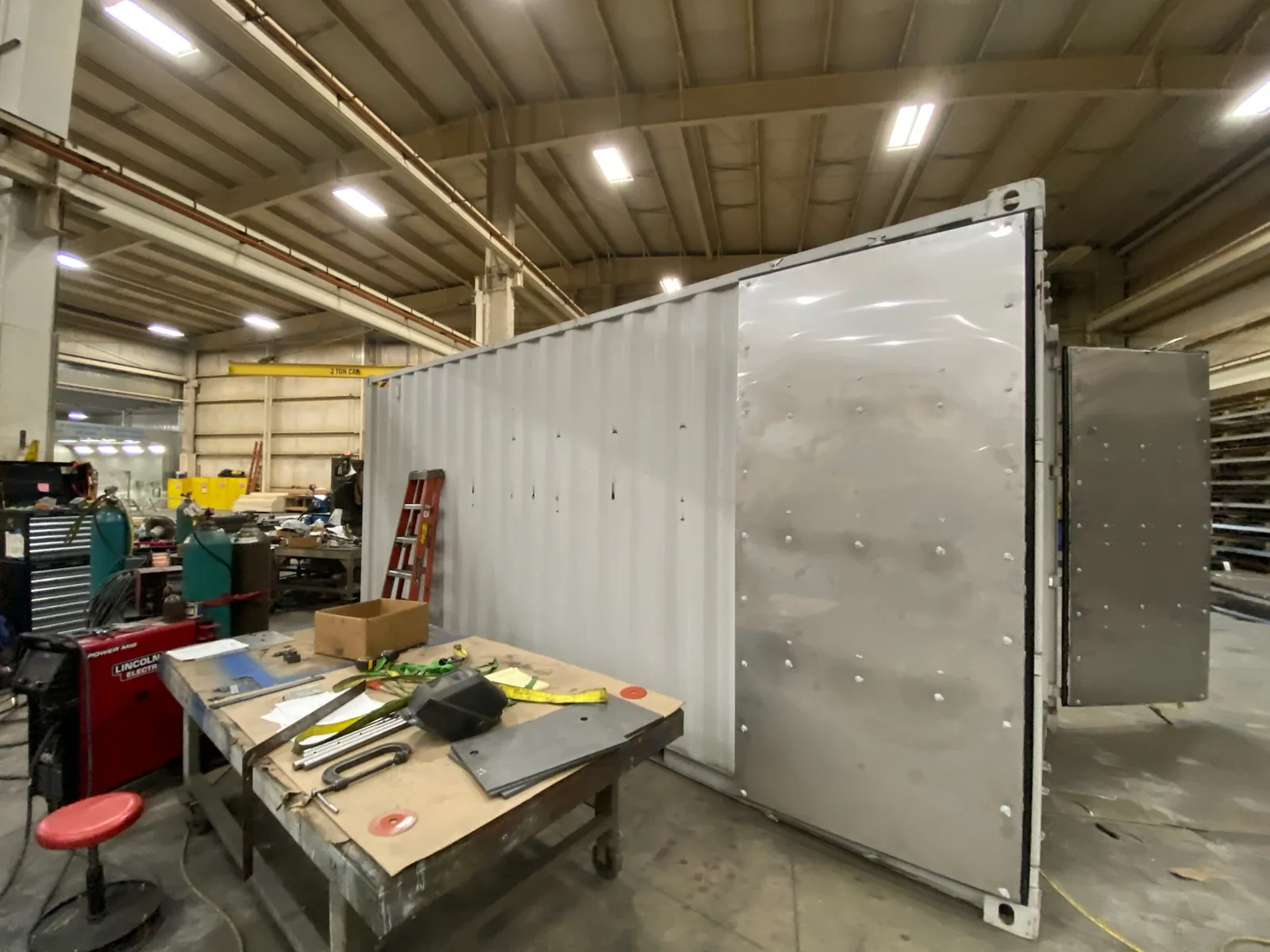

Large enclosure panel work

A large enclosure takes shape from joined wall panels, with the panel seams and fasteners visible along its length.

Finished assembly with internal panels

A painted fabricated assembly combines an outer support structure with multiple internal panels.

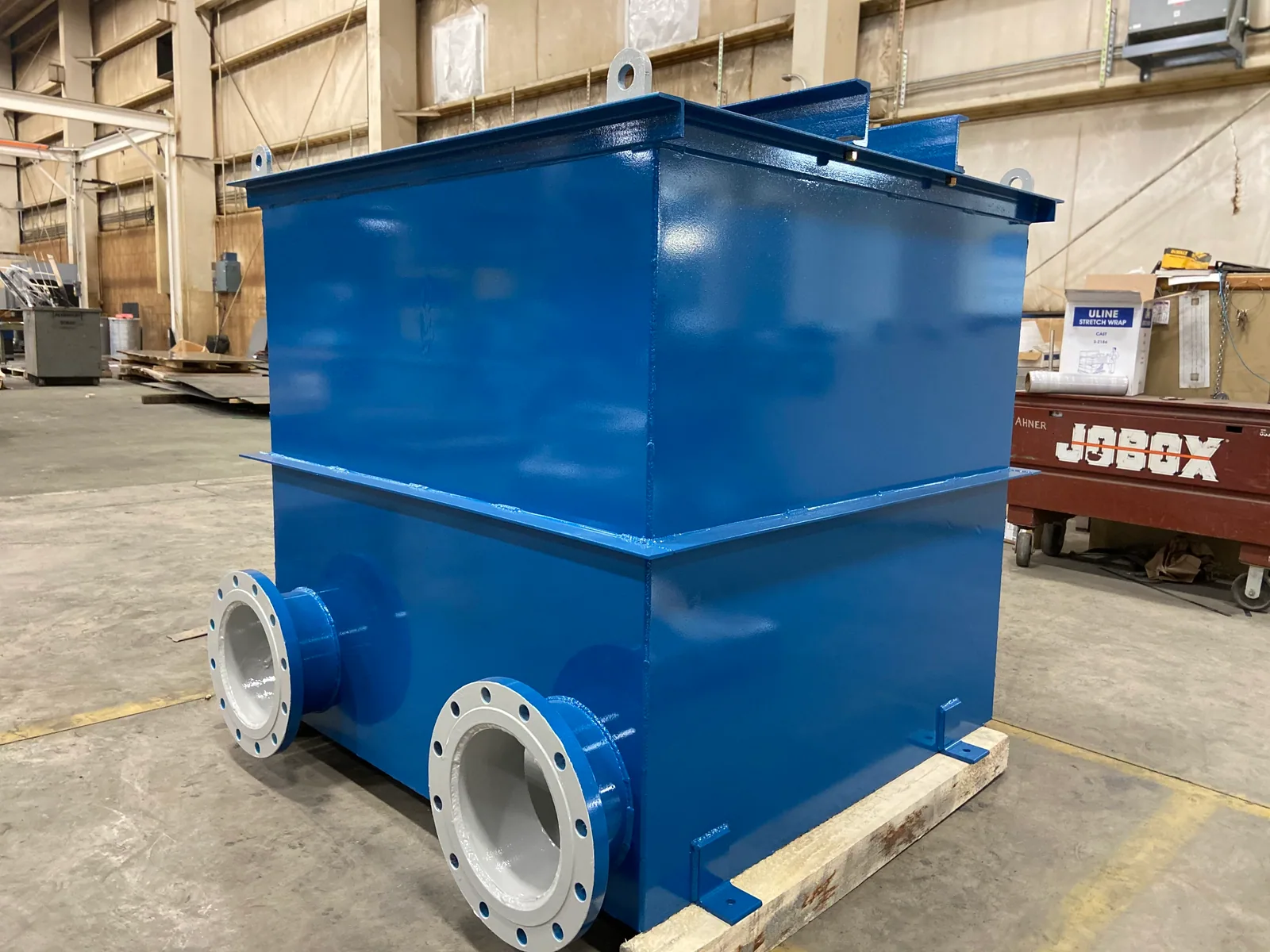

Painted housing with flanged openings

This painted box housing includes circular side connections, a raised upper section, and perimeter attachment points.

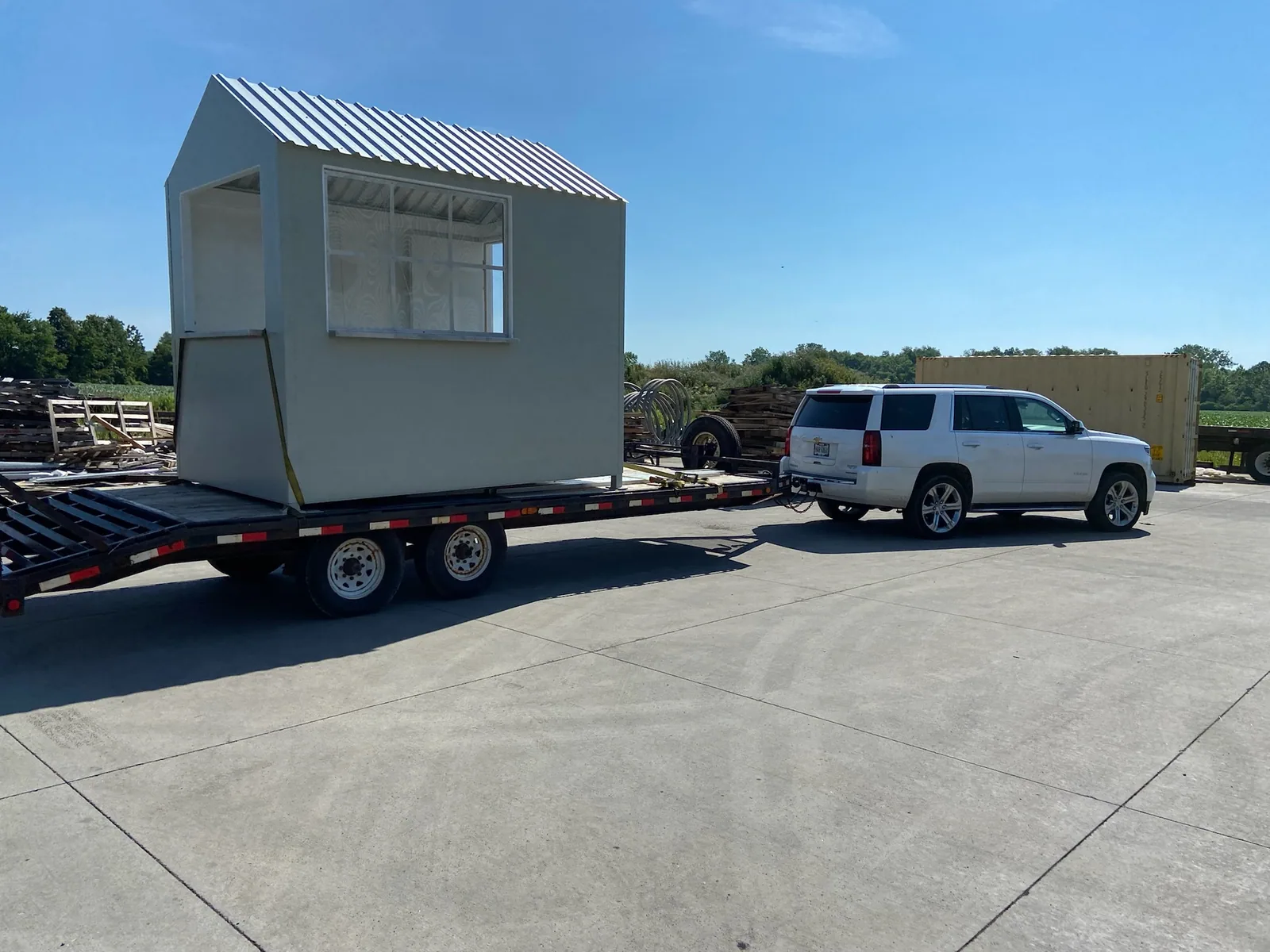

Finished enclosure on a trailer

A finished enclosure with large window openings and a sloped roof is shown on a trailer outside the shop.

Industrial ductwork ready for delivery

Ahner duct sections and fittings loaded together for delivery.

Planning a Similar Build

Plan around the connections: mark flange patterns, mating equipment, flow direction, and the dimensions that must match the installation. A delivery package also needs defined shipping splits and a way to identify each section on site.

A similar need: New or replacement ductwork with defined field connections and shipping splits.

What to send: Drawings, material, thickness, connections, coating, and delivery or installation scope.

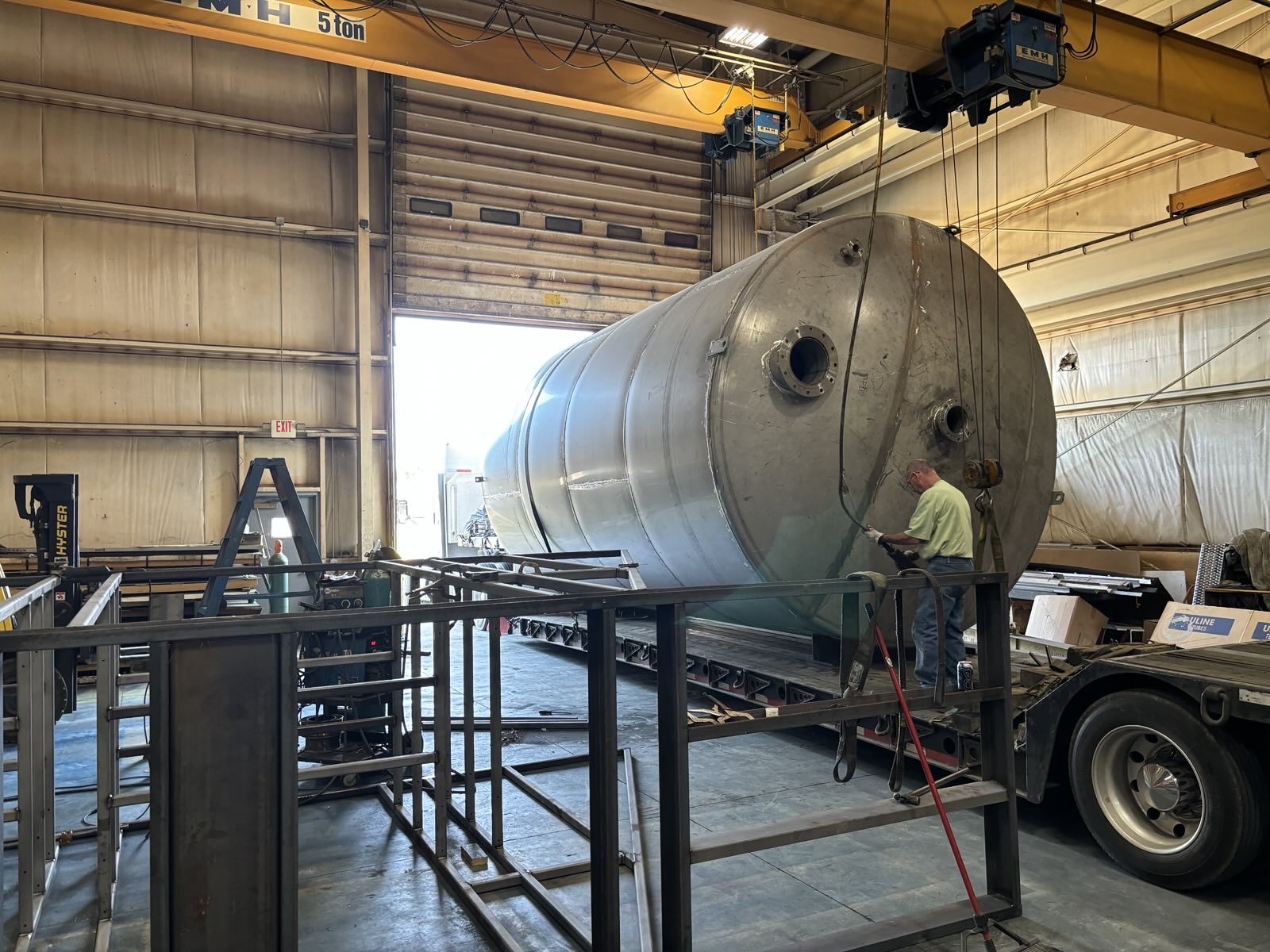

Large tank fabrication and handling

An Ahner tank secured for transport. Handling and shipping matter alongside fabrication.

Plan the vessel and the move together. Provide the released design, nozzle and support details, inspection requirements, shipping envelope, and receiving access. Confirm the design authority and any pressure or code scope before fabrication is accepted.

A similar need: Tank components and heavy weldments needing forming, welding, and a delivery plan.

What to send: Released design, material, welds, inspection, operating conditions, and shipping plan. Code or pressure requirements need project-specific review.

Welded plate and structural assembly

Ahner platework and structural supports built into one assembly.

Define the assembly interfaces before individual pieces are cut. Mark mounting datums, mating components, required loads, and customer-defined acceptance dimensions; identify finish and any surfaces that must remain uncoated.

A similar need: Hoppers, chutes, and equipment supports combining platework and structural fabrication.

What to send: Drawings or a sketch, mounting interfaces, materials, loads, finish, and scope.
