Warped Stainless Steel? Troubleshooting Common Welding Issues

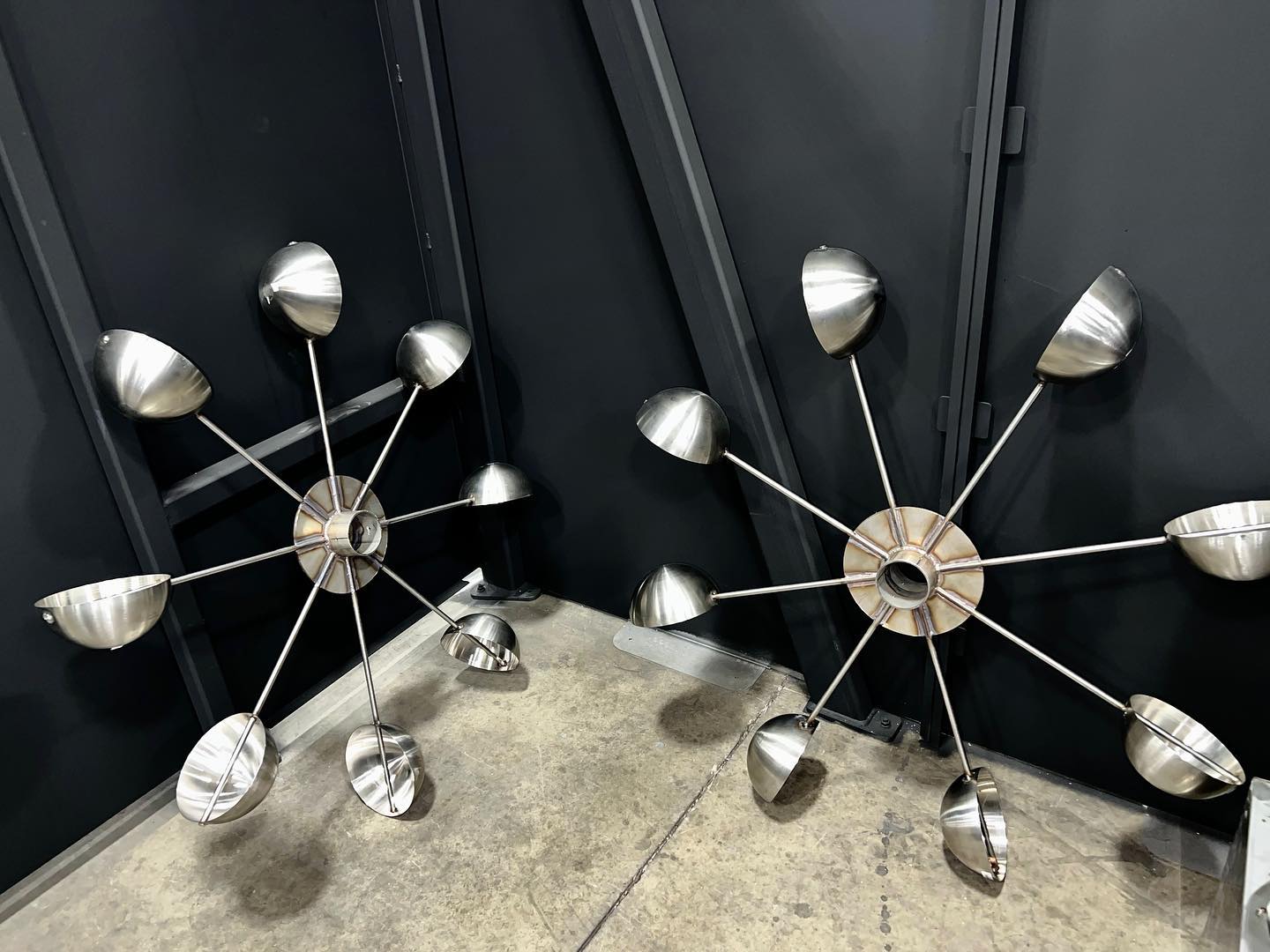

welded stainless parts

Stainless steel. It's prized for its corrosion resistance, strength, and aesthetic appeal. But when it comes to welding, it can be a bit more challenging than carbon steel. One of the most frustrating issues welders and fabrication shops face is distortion – warping or twisting of the metal. While some distortion is inevitable, excessive warping can compromise a project’s structural integrity and require costly rework.


At Ahner Industrial, we’re often asked about this. We've spent decades fabricating stainless steel for diverse industries from automotive to amusement rides, and we’ve learned a thing or two about minimizing warping. Let’s break down the most common causes and practical solutions.


Why Does Stainless Steel Warp?


The primary culprit is differential thermal expansion. Stainless steel expands more than carbon steel when heated. Uneven heat distribution during welding creates stresses that pull the metal out of shape. Think of it like this: one area gets intensely hot while another stays relatively cool, causing a localized contraction that bends the whole piece.


Here are a few specific factors that contribute:


  • High Heat Input: Excessive heat applied to the metal during welding leads to greater expansion and contraction.

  • Joint Design: Certain joint designs, particularly those with small root openings, concentrate heat and increase stress.

  • Material Thickness:Thicker material is more prone to warping because it holds more heat.

  • Restraint: If the piece is rigidly clamped or welded to a large, fixed structure, the metal's attempt to contract will cause distortion.


Practical Solutions: Minimizing Stainless Steel Distortion


The good news is that warping isn't an unavoidable evil. Here are some strategies you can implement:


  • Control Heat Input: This is fundamental. Use lower amperage settings on your welding machines. Employ techniques like pulsed welding, which cycles between high and low amperage, to reduce overall heat input.

  • Tack Welding: Before fully welding a joint, use short, intermittent tack welds. This allows for movement and helps distribute heat more evenly. After tacking, allow the metal to cool and assess for any distortion. Make adjustments as needed before continuing.

  • Backstepping: This technique involves welding in short segments, alternating direction to balance the heat input and minimize distortion. It’s especially useful for thicker materials.

  • Peening: Gentle peening, or tapping, of the weld area after it cools can relieve some of the residual stresses and help flatten the metal. Use a soft-faced hammer to avoid damaging the surface.

  • Joint Design Considerations: When possible, choose joint designs that minimize stress concentrations. A wider root opening can help with heat distribution.

  • Fixturing and Clamping:  If you need to clamp or fixture your workpiece, use methods that allow for some movement during welding. Avoid overly rigid setups.

  • Pre-bending: For complex shapes, pre-bending the material to account for anticipated shrinkage during welding can be an effective solution.


A Note on Material Choice


While not directly a welding issue, the grade of stainless steel you use can also impact warping. Certain grades, particularly those with higher carbon content, may exhibit greater distortion.


At Ahner Industrial, we understand the challenges of fabricating stainless steel. Our experienced team is adept at implementing these techniques and adapting our processes to minimize distortion and deliver parts that meet your specifications. We're accustomed to tight tolerances and demanding applications, and we stand behind our “made-right-first-time” commitment.


If you're facing stainless steel welding challenges, talk to our engineers. We can help you troubleshoot your processes and find the right solutions for your project. Request a quote today to discuss your specific needs.
