Engineering Efficiency: Ahner Industrial Delivers Precision Ductwork Solutions for Demanding Environments

Jan 27, 2025

Updated: Feb 17, 2025

Industrial ductwork packages can involve large transitions, elbows, manifolds, supports, surface preparation, coatings, field joints, transport planning, and phased installation. Ahner Industrial fabricates and can coordinate installation from customer- or engineer-supplied drawings and specifications; airflow design, hazard analysis, code selection, and system performance remain with the responsible system designer and owner.

Why Industrial Ductwork Matters

Effective ductwork systems are critical for:

Airflow Management: Directing fumes, dust, and contaminants away from workspaces.

Design requirements: the responsible engineer should identify applicable OSHA, NFPA, environmental, owner, and site requirements; Ahner fabricates to the released package.

System performance: pressure loss, airflow, capture velocity, leakage class, and operating targets should be defined and verified by the responsible system designer.

Durability: Resisting corrosion, high temperatures, and abrasive materials.

Ahner's role is to review the released fabrication package for manufacturability, material, joining, fit-up, coating, inspection, shipping, and installation constraints, then build to the agreed scope.

Our Ductwork Capabilities

Ahner combines CNC cutting, forming, welding, assembly, surface preparation, and large-component handling for custom industrial ductwork. Available processes are selected from the released drawings and project specification.

Custom Fabrication: Tailored ducts in galvanized steel, stainless steel, aluminum, or specialty alloys.

High-Temperature Solutions: Heat-resistant ducts for foundries.

Formed ductwork: configuration, gauge, joints, reinforcement, and leakage requirements are reviewed from the drawings and specification.

Welding and assembly: TIG, MIG, and other joining methods are selected from material, joint, access, procedure, inspection, and service requirements.

CAD-supported fabrication review: models and drawings help coordinate fit, field connections, shipping splits, supports, and installation access; system design remains with the responsible engineer.

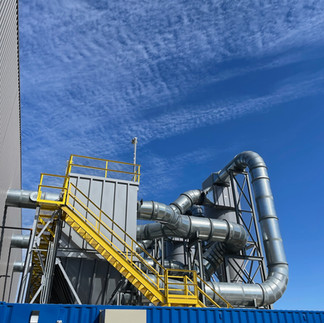

Case Study 1: Dust Collection Ductwork for a Copper Recycling Plant

Client: A duct engineering firm tasked with upgrading a copper recycling facility’s dust collection system.

Scope: Fabricate hundreds of feet of interior and exterior ductwork, including straight sections, elbows, and transitions. Components ranged from 74" to 5" in diameter, constructed from 10ga to 14ga steel.

Ahner’s Role:

Precisely fabricated ducts per the engineering firm’s specifications, ensuring dimensional accuracy for seamless on-site assembly.

Performed mechanical surface preparation (SSPC-SP3- Power Tool Cleaning) and applied industrial-grade paint to resist abrasion and corrosion from copper particulates.

Collaborated closely with the engineering team to optimize fabrication timelines, enabling phased delivery to align with the plant’s build schedule.

Fabricated the duct sections, elbows, and transitions to the engineering firm's released material, dimensional, preparation, coating, and delivery requirements. System-level air-quality performance and regulatory compliance are outside a fabrication-only claim.

Coordinated phased fabrication and delivery around the client's installation sequence; field acceptance remains governed by the project documents.

Case Study 2: Oversized Manifold Ducts for a Glass Manufacturer

Client: An air pollution control company partnering with a glass manufacturing facility.

Scope: Fabricate four 90-foot-long rectangular steel ducts (88" x 88" to 88" x 18") from 3/16" thick steel, along with required galvanized supports for high-volume airflow in a catalytic filter and cooler system.

The released package called for AWS D1.1 welding and consistent seams across large 3/16-inch steel panels; applicable procedures, qualifications, inspection, and acceptance requirements are project-specific.

Coordinated with logistics providers to secure wide-load permits and plan transport routes for oversized components.

Pre-assembled sections in-house to verify fitment before shipment, reducing on-site installation delays.

Fabricated and pre-assembled manifold sections to the released package before shipment. EPA compliance and emissions performance remain system-level responsibilities of the owner and responsible engineer.

Coordinated shipping splits, wide-load permits, and transport planning for the oversized components.

Case Study 3: Quench Ductwork for High-Temperature Applications

Client: A duct engineering firm designing a hybrid (above/below-ground) quench system for a glass manufacturing plant.

Scope: Fabricate round and rectangular ducts (60" to 48" diameter) from 3/16" A36 carbon steel, with sandblasted, painted, and col-tar-coated surfaces for corrosion resistance.

Fabricated ducts to the engineering firm’s precise specifications, ensuring seamless alignment between above- and below-ground sections.

Sandblasted surfaces to SSPC-SP10/NACE No. 2 standards and applied col-tar epoxy coating per the client’s requirements.

Engineered custom supports and brackets as outlined in the design to stabilize underground duct sections.

Fabricated the A36 duct sections and applied the specified surface preparation and coating system for the documented service environment.

Coordinated fabrication and delivery with the engineering firm's installation schedule; final field fit and system acceptance are governed by the released project requirements.

Why Engineering Firms Partner with Ahner Industrial

Defined fabrication role: Ahner builds to released customer or engineer documents and identifies manufacturing questions before production.

Available processes: CNC cutting, forming, welding, assembly, and surface preparation are assigned to the reviewed package.

Large-component planning: fabrication sequence, handling, shipping splits, permits, routes, field joints, and installation access are reviewed early.

Project-specific verification: inspection points, methods, documentation, and acceptance criteria should be stated in the released requirements.

Review Your Ductwork Fabrication Package

For a retrofit or new installation, provide the released drawings, material and thickness, joint details, weld requirements, surface preparation and coating system, inspection criteria, shipping splits, field dimensions, installation scope, and required schedule. Ahner can review the fabrication and logistics plan against that package.
